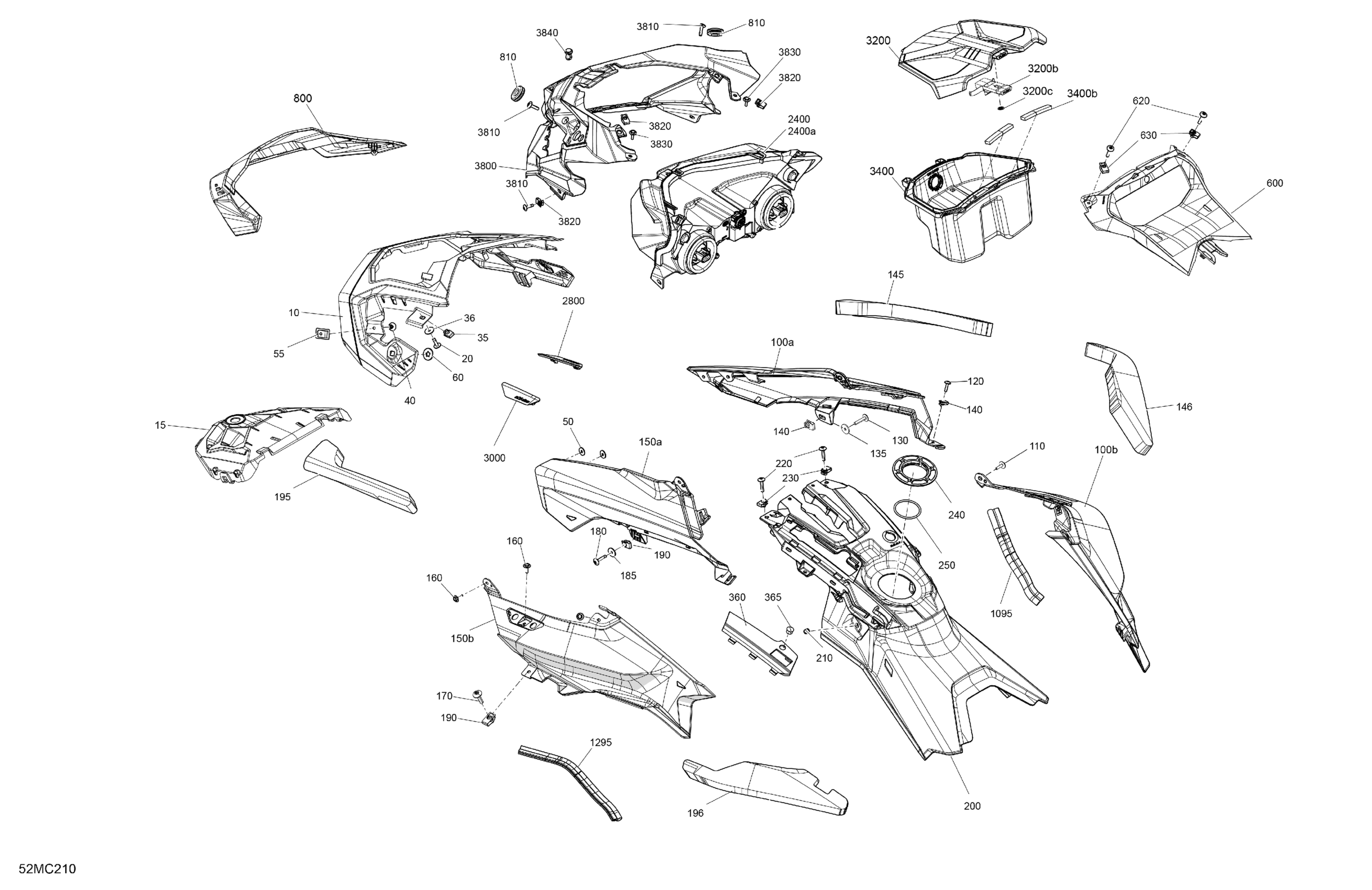

Ski-Doo RENEGADE 900 ACE TURBO R - XRS - 2023 Body - Hood - VIP Medium Gauge Diagram

#

Description
Price

10

Deep Black, Center Hood

517306284

$174.99

15

Central Hood Grille

517307593

$18.49

20

Torx Screw M5 X 20

250000528

$2.11

35

Panel Nut M5 X 0.8

250000958

$4.23

36

Washer

250200166

$2.11

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

50

Washer

517124300

$0.19

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

100a

Deep Black, RH Front Hood

517307307

$199.99

100a

RH Front Hood

517308316

$214.99

100b

Deep Black, RH Rear Hood

517307308

$214.99

100b

RH Rear Hood

517308317

$214.99

110

Screw M4 X 16

250000725

$3.49

120

Torx Screw M5 X 20

250000528

$2.11

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

250200166

$2.11

140

Panel Nut M5 X 0.8

250000958

$4.23

145

RH Front Hood Foam

517305763

$13.49

146

RH Hood Foam

517306001

$13.49

150a

LH Front Hood

517307310

$199.99

150a

LH Front Hood

517308319

$214.99

150b

LH Rear Hood

517307311

$214.99

150b

LH Rear Hood

517308323

$199.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

250200166

$2.11

190

Panel Nut M5 X 0.8

250000958

$4.23

195

LH Front Hood Foam

517305764

$14.99

196

LH Hood Foam

517306002

$13.49

200

Rear Console

517307684

$174.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

360

LH Front Console

517306582

$31.99

365

Cap

572051500

$5.89

600

Gauge Support

517307400

$38.99

620

Torx Truss M5 X 20

250000586

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

800

Deep Black, Wind Deflector

517305875

$45.99

810

Grommet

517303756

$4.09

1095

Neoprene Seal 3000Mm Long

219704371

$51.99

1295

Neoprene Seal 3000Mm Long

219704371

$51.99

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

2800

RH Hood Plate

517306049

$14.99

3000

LH Hood Plate

517306050

$13.49

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200b

Latch

517305779

$12.99

3200c

Push Nut

732610072

$2.19

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400b

Seal Joint

517305157

$2.39

3800

Headlamp Fairing

517306301

$73.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3830

Screw M4 X 16

250000725

$3.49

3840

Tuflok Plastic Rivet

293150230

$1.47
