Description

Price

10

Deep Black, Chassis Tunnel Module 137" | Model Deep Black

415130556

$3.00

10

Platinum Silver, Chassis Tunnel Modulel 137 | Model Platinum Silver/Spartan Red

415130573

$3.00

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

RH Footrest

518332921

$42.99

10j

LH Footrest

518332306

$42.99

10q

RH Rear Suspension Support This part replaces 518334389.

518334389

$85.99

10r

LH Rear Suspension Support

518334413

$45.99

10s

Stirrup Reinforcement

518334507

$21.99

10t

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10u

RH Roller

518329023

$194.99

10v

LH Roller

518329024

$194.99

10w

Radiator Tunnel 137 Ass'y

518334488

$720.49

10y

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ab

Rear Cap

518328990

$22.49

10ad

RH Footrest

518334509

$22.49

10af

Black, Plug

293730052

$9.19

10ag

LH Foot Protector

518331559

$23.99

10am

Rivet Avibulb 3/16

293150203

$2.09

10ar

Henrob Rivet

293150245

$1.69

10at

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10au

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10av

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$111.49

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1750

Rear Protector

518329980

$10.13

1750a

Rubber Bumper

293830005

$8.09

1760

Front Protective Structure

518334162

$3.69

1770

Torx Truss PT K40 x 12

250001131

$2.11

1775

Gasket

705002447

$3.59

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40

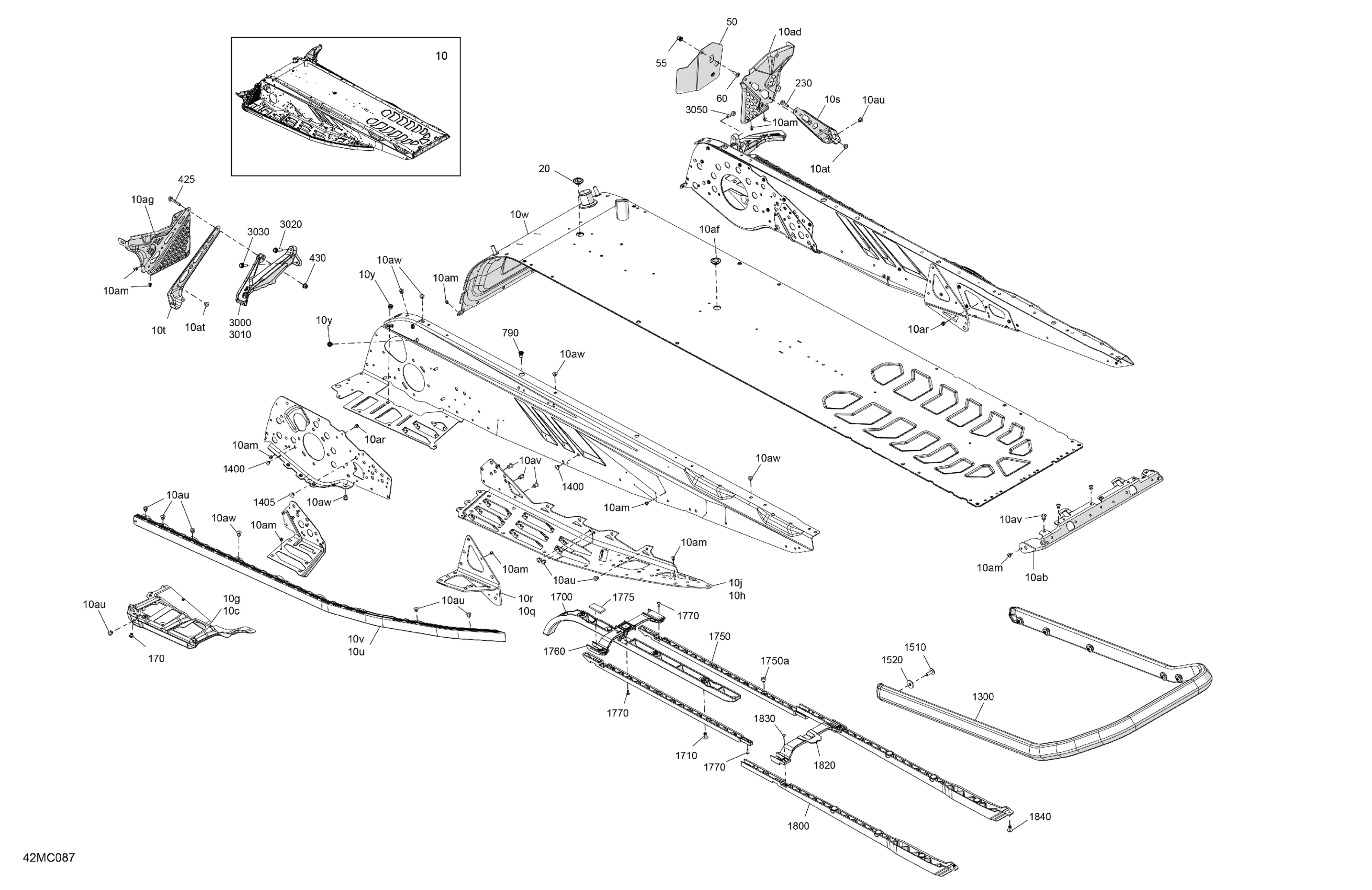

Ski-Doo 021 - RENEGADE 900 ACE TURBO R - XRS - North America, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 137" | Model Deep Black

Platinum Silver, Chassis Tunnel Modulel 137 | Model Platinum Silver/Spartan Red

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

RH Footrest

LH Footrest

RH Rear Suspension Support This part replaces 518334389.

LH Rear Suspension Support

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

Radiator Tunnel 137 Ass'y

Insert Half Hex Body M6 x 1.0

Rear Cap

RH Footrest

Black, Plug

LH Foot Protector

Rivet Avibulb 3/16

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Rivet Ornit 6,5 X 16.5

Ornit Rivet 6,5 X 14.5

Black, Plug

Heat Shield

Insert

Torx Head Screw M6 X 16

Insert M5 - 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 x 35

Elastic Flange Nut M6 X 1.0

Insert

Rear Bumper | Includes 1300 to 1300c

Black, Dart 8 mm

Black, Dart 10 mm

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Pop Rivet 3/16”

Rear Protector

Rubber Bumper

Front Protective Structure

Torx Truss PT K40 x 12

Gasket

Rear Protector

Central Protective Structure

Torx Truss PT K40 x 12

Pop Rivet 3/16”

Black Toe-hold

Toe Hold

Hex. Flange Screw M6 X 25

Hex. Flange Screw S.Grip M6 X 20

Hex Screw Forming M6 x 25
