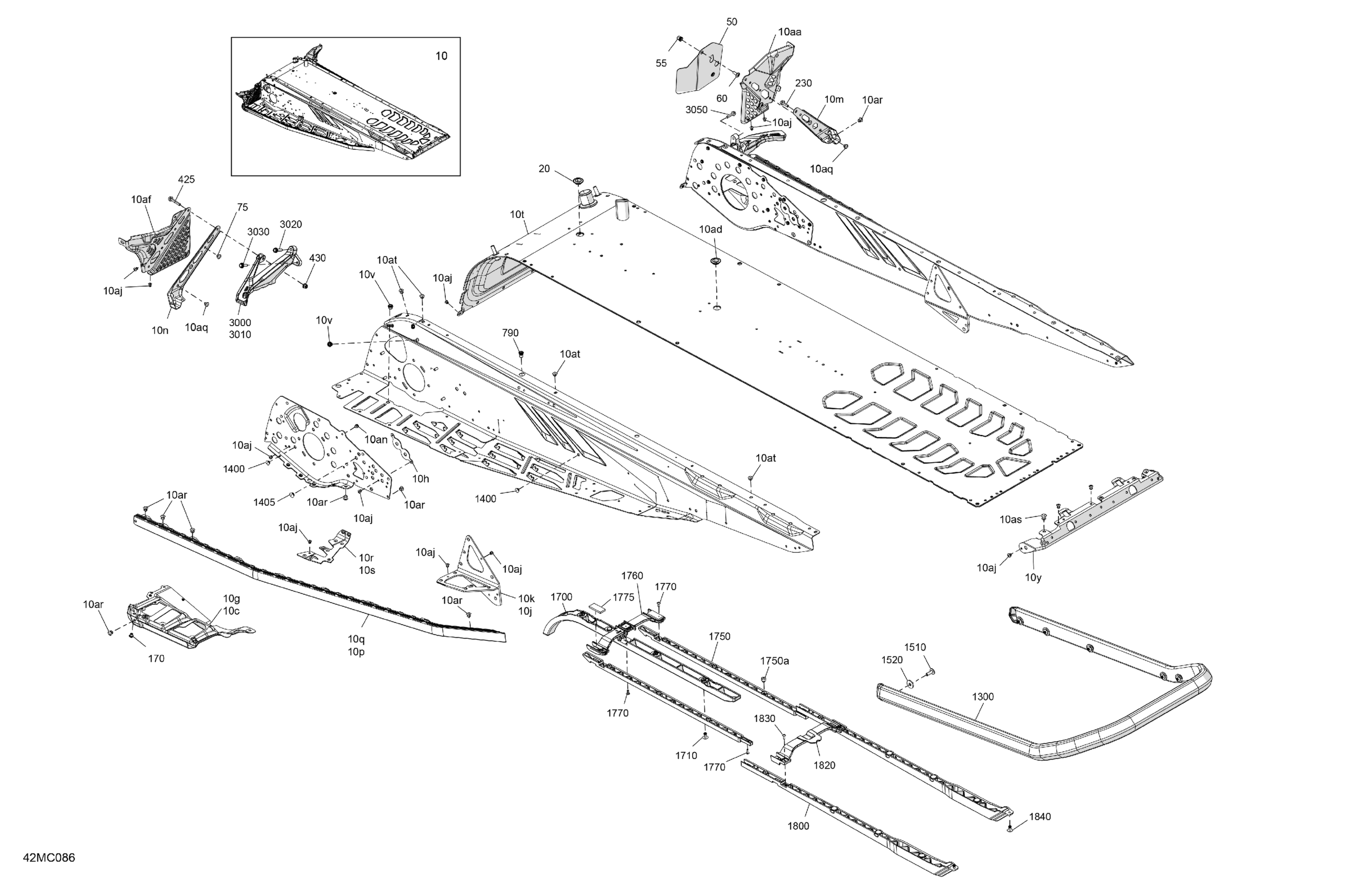

Ski-Doo 020 - RENEGADE 900 ACE TURBO R - X - North America, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 137 | Includes 10 to 10b

415130702

$3.00

Neo Yellow, Chassis Tunnel Module 137 | Includes 10 to 10b

415130703

$3.00

Deep Black, RH Footrest Reinforcement

518330738

$88.99

Deep Black, LH Footrest Reinforcement

518331523

$88.99

Front Suspension Arm Reinforcement

518327233

$4.69

RH Rear Suspension Support This part replaces 518334389.

518334389

$85.99

LH Rear Suspension Support

518334413

$45.99

Stirrup Reinforcement

518334507

$21.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

LH Footrest Reinforcement

518332296

$21.99

RH Footrest Reinforcement

518332297

$21.99

Radiator Tunnel 137 Ass'y

518334488

$720.49

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518328990

$22.49

RH Footrest

518334509

$22.49

Black, Plug

293730052

$9.19

LH Foot Protector

518331559

$23.99

Rivet Avibulb 3/16

293150203

$2.09

Henrob Rivet

293150245

$1.69

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 x 35

207663546

$1.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert

293450278

$4.49

Rear Bumper | Includes 1300 to 1300c

518330033

$111.49

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Rear Protector

518329980

$10.13

Rubber Bumper

293830005

$8.09

Front Protective Structure

518334162

$3.69

Torx Truss PT K40 x 12

250001131

$2.11

Gasket

705002447

$3.59

Rear Protector

518329979

$9.23

Central Protective Structure

518333936

$3.69

Torx Truss PT K40 x 12

250001131

$2.11

Pop Rivet 3/16”

293150108

$1.19

Black Toe-hold

518330358

$24.99

Toe Hold

518329134

$18.99

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex Screw Forming M6 x 25

250001124

$2.40
