Description

Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

415130861

$3.00

10

Catalyst Gray, Chassis Tunnel Module 154" | Model Orange Crush

415130594

$3.00

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10n

Front Suspension Arm Reinforcement

518335959

$4.19

10p

RH Rear Suspension Support

518333792

$109.99

10q

LH Rear Suspension Support

518333791

$109.99

10r

RH Footrest Reinforcement

518329789

$19.99

10s

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10t

RH Roller

518329648

$194.99

10u

LH Roller

518328452

$194.99

10v

RH Tunnel Liner

518329646

$35.99

10w

LH Tunnel Liner

518329647

$35.99

10y

Radiator Tunnel Ass'y 154

518332622

$709.99

10aa

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ad

Rear Cap

518332315

$72.99

10ah

RH Footrest

518331822

$24.49

10aj

Black, Plug

293730052

$9.19

10ak

LH Footrest

518332978

$43.99

10an

Rivet Avibulb 3/16

293150203

$2.09

10ar

Henrob Rivet

293150245

$1.69

10at

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10au

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1115

Insert

293450275

$12.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

3060

Collar Huck Magna-Grip 6.4

293150149

$0.48

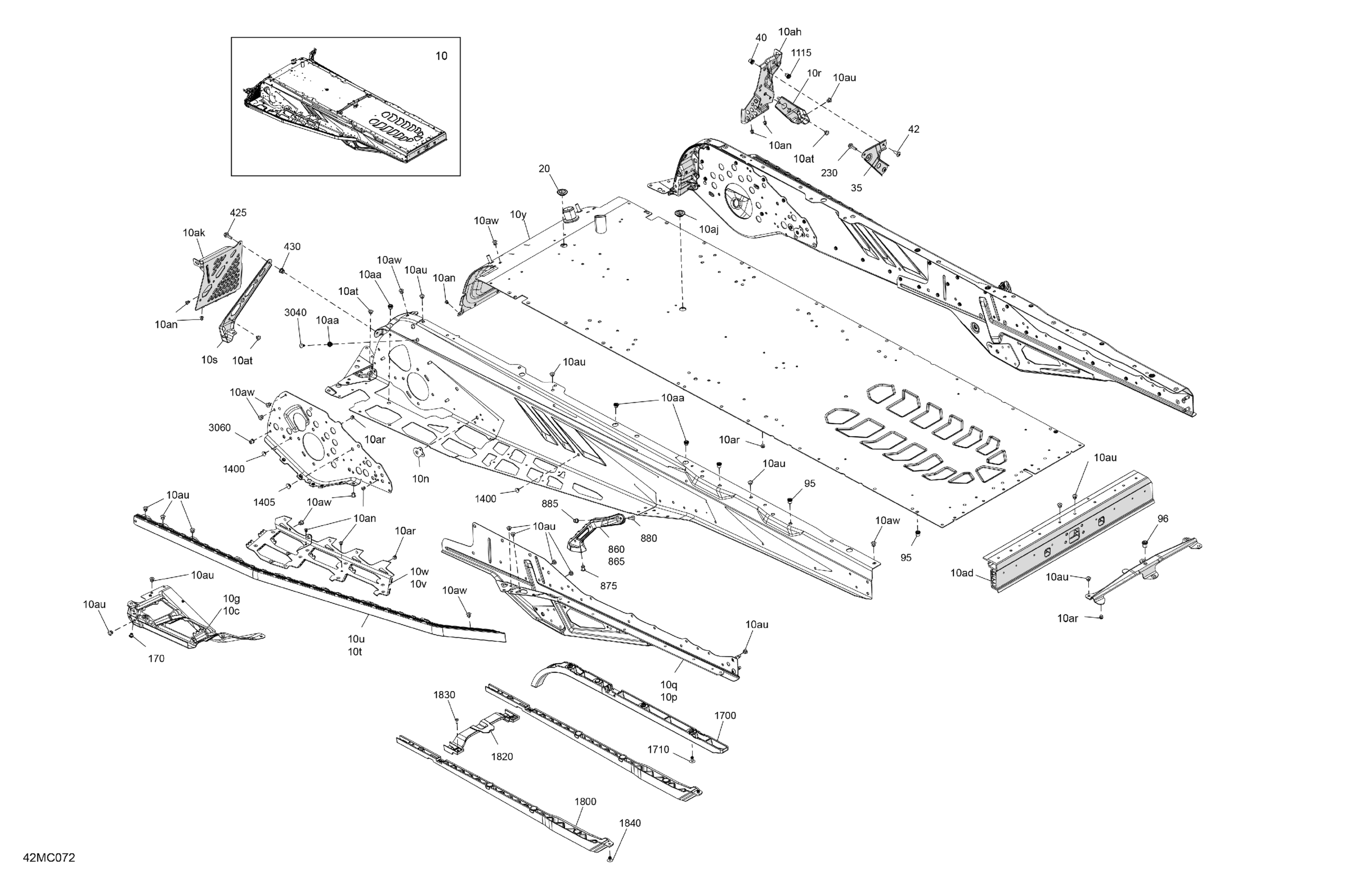

Ski-Doo 019 - EXPEDITION SE 850 E-TEC - North America, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

Catalyst Gray, Chassis Tunnel Module 154" | Model Orange Crush

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

RH Rear Suspension Support

LH Rear Suspension Support

RH Footrest Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

RH Tunnel Liner

LH Tunnel Liner

Radiator Tunnel Ass'y 154

Insert Half Hex Body M6 x 1.0

Rear Cap

RH Footrest

Black, Plug

LH Footrest

Rivet Avibulb 3/16

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Ornit Rivet 6,5 X 14.5

Black, Plug

RH Stirrup Reinforcement

Insert

Torx Head Screw M6 X 16

Insert

Insert

Insert M5 - 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Deep Black LH Rear Footrest Reinforcement

Deep Black, RH Rear Footrest Reinforcement

Rivet Ornit 6,5 X 16.5

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Insert

Black, Dart 8 mm

Black, Dart 10 mm

Front Protector

Pop Rivet 3/16”

Rear Protector

Central Protective Structure

Torx Truss PT K40 x 12

Pop Rivet 3/16”

Dart

Collar Huck Magna-Grip 6.4
