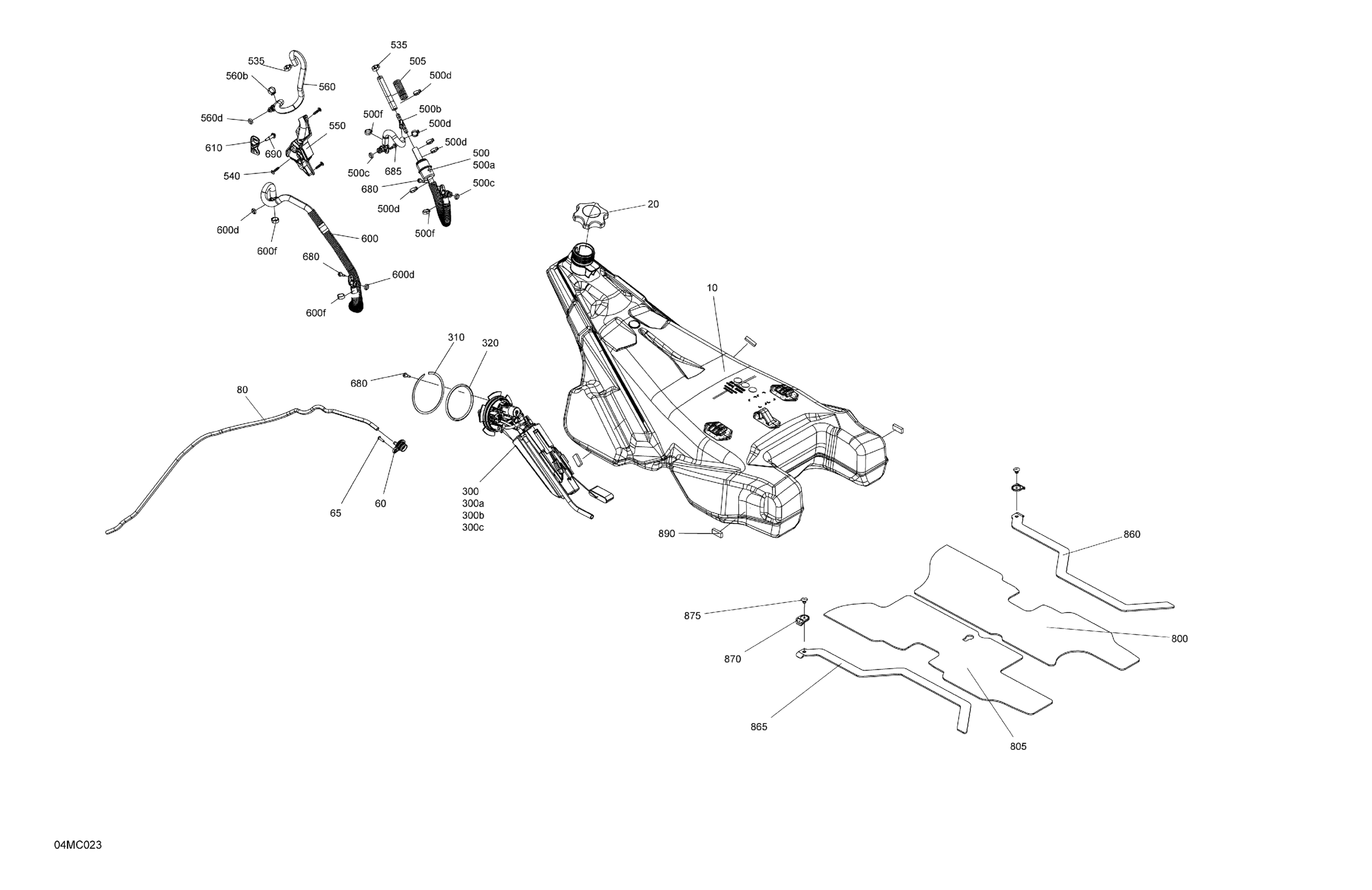

Ski-Doo EXPEDITION SE 850 E-TEC - 2023 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034099

$349.99

20

Fuel Tank Cap

513033860

$24.49

60

Check Valve

513033849

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$259.99

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130281

$149.99

300c

Canister

415130507

$85.99

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

500

Hose Ass'y | Includes 500 to 500n

513034120

$121.99

500a

Fuel Filter

513034047

$21.99

500b

Y Fitting

513034150

$6.25

500c

O-Ring

513033668

$10.99

500d

Oetiker Clamp

293650125

$3.29

500f

Crimp Clamp

293650053

$3.09

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

535

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Hose Guide

513034051

$7.69

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$56.99

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600f

513034113

$80.49

600d

O-Ring

513033668

$10.99

600f

Crimp Clamp

293650053

$3.09

610

Bracket

513033903

$1.49

680

Hex. Flange Screw M5 X 16

250000911

$0.85

685

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

800

RH Insulated Foam

513034052

$12.49

805

LH Insulated Foam

513034053

$12.49

860

RH Foam

513033981

$4.69

865

LH Foam

513033982

$4.69

870

Retainer Plate

513033917

$0.57

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

890

Tank Guard

513034038

$4.39
