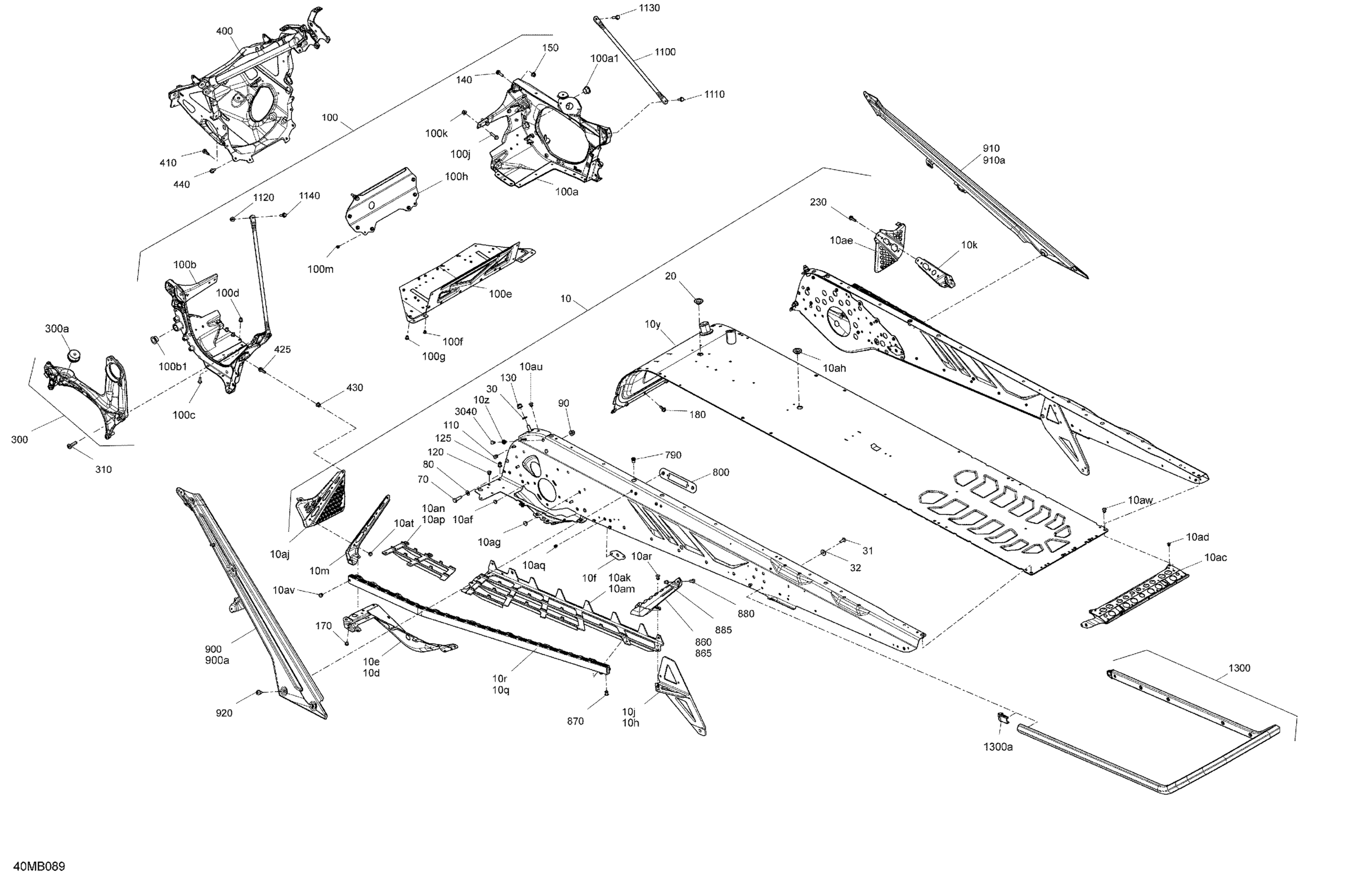

Ski-Doo 018 - SUMMIT 850 E-TEC TURBO - X with EXPERT Package - 175" - North America, 2022 06- Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 175" | Deep Black

415130483

$3.00

10

Liquid Titan, Chassis Tunnel Module 175" | Liquid Titan

415130484

$3.00

10d

RH Footrest Reinforcement

518332576

$88.99

10e

LH Footrest Reinforcement

518332575

$88.99

10f

Reinforcement Plate

518326647

$4.69

10h

RH Suspension Bracket Rear

518328828

$45.99

10j

LH Suspension Bracket Rear

518328830

$45.99

10k

Stirrup Reinforcement

518331253

$21.99

10m

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10q

RH Roller

518328737

$194.99

10r

LH Roller

518328738

$194.99

10y

Radiator Tunnel 165

518332555

$709.99

10z

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ac

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$63.99

10ad

Rivet Avibulb 3/16

293150203

$2.09

10ae

RH Footrest

518328460

$44.99

10af

Black, Dart 8 mm

293730047

$2.21

10ag

Black, Dart 10 mm

293730060

$4.55

10ah

Black, Plug

293730052

$9.19

10aj

LH Footrest

518333007

$40.99

10ak

LH Rear Perforated Footstep

518330960

$114.99

10am

Footstep R Rh Perforated

518330962

$114.99

10an

LH Front Driver Footrest

518330385

$88.99

10ap

RH Front Driver Footrest

518330388

$88.99

10aq

Rivet Avibulb 3/16

293150203

$2.09

10ar

Rivet

293150183

$2.11

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

30

Flat Washer 8 mm

234081410

$0.83

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

32

Flat Washer

224061201

$1.37

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

100a1

Leg Bushing

505072690

$12.49

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b1

Leg Bushing

505072690

$12.49

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100e

Bottom Plate

518332716

$36.99

100f

Rivet Avibulb 3/16

293150203

$2.09

100g

Insert M5 X 0.8

293450268

$2.09

100h

Front Member

518330100

$60.99

100j

Hex. Flange Screw M6 X 25

250000945

$4.44

100k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100m

Rivet Avibulb 3/16

293150203

$2.09

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Hemlock Rivet, 6.4 mm

293150174

$7.86

125

Hemlock Rivet 6.5 mm

293150120

$7.41

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207562056

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334460

$699.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

440

Hex. Flange Screw M6 X 16

207661636

$1.35

790

Insert

293450278

$4.49

800

Member Fixation Plate

518329480

$12.99

860

Black - LH Roller Link

518329123

$48.99

860

Liquid Titan, LH Rear Footrest Reinforce

518333103

$48.99

865

Black, RH Roller Link

518329124

$48.99

865

Liquid Titan, RH Rear Footrest Reinforce

518333104

$48.99

870

Rivet

293150183

$2.11

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

900a

LH Rear Diagonal Cross Member

518333356

$119.99

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$119.99

910a

RH Rear Diagonal Cross Member

518332559

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1300

Rear Short Bumper 175 | Includes 1300 to 1300a

518331207

$127.49

1300a

Cap

520001612

$10.99

3040

Dart

293730079

$2.09
