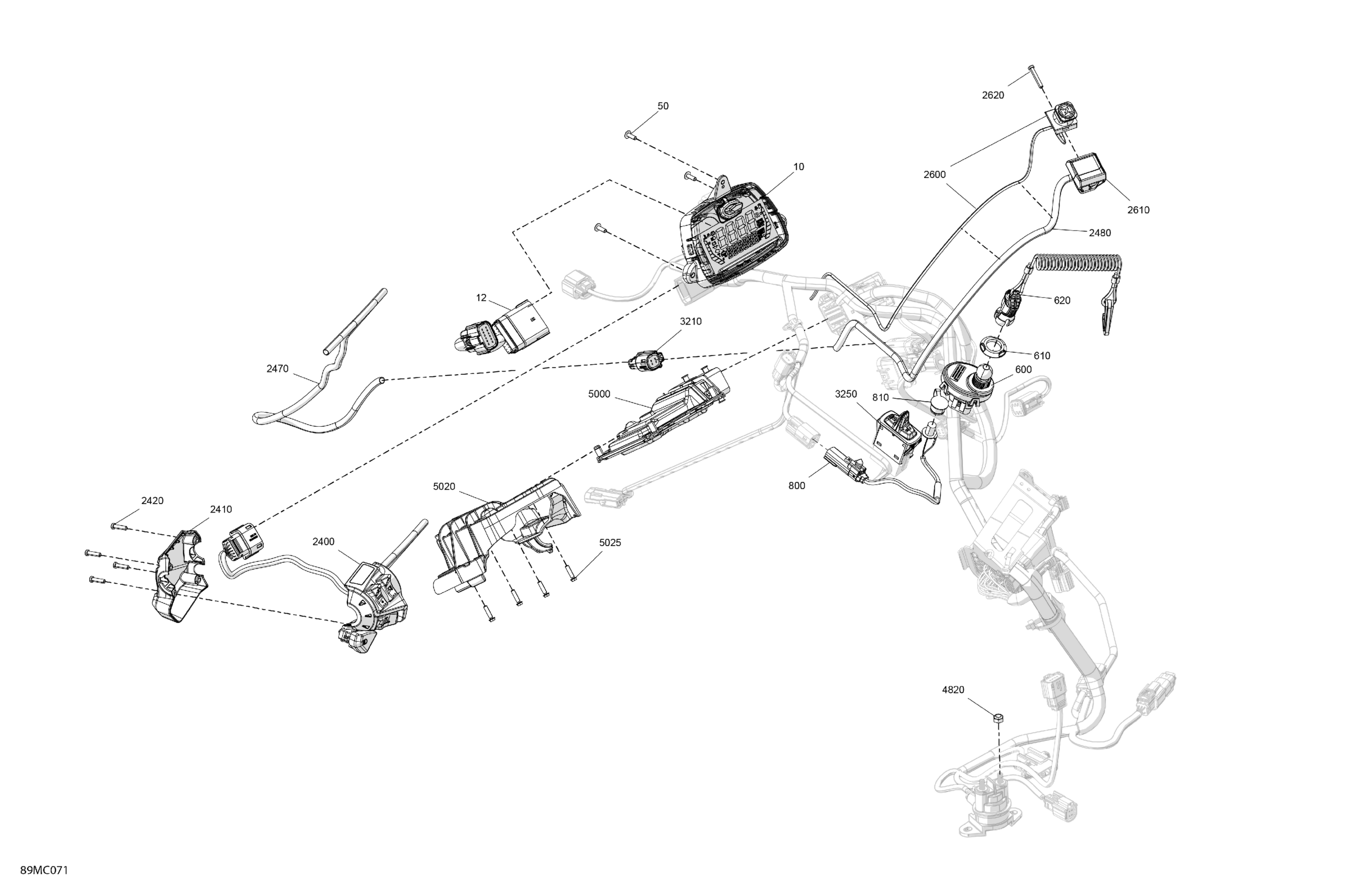

Ski-Doo EXPEDITION LE 900 ACE TURBO R - 24 INCH - (AXPC-AXPD) - 2023 Electric - Upper Section Diagram

Description

Price

1 Button Multifunction Compact Mono Gauge

515179303

$495.35

2 Button Multifunction Gauge Full Size Color

515178226

$557.66

Junction Wiring Harness

515179304

$23.05

Torx Truss PT K40 x 12

250001131

$1.74

600

Ignition Switch

710006855

$77.66

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

800

Heated Visor Wiring Harness

515178645

$36.12

810

Cap

572103300

$9.65

2400

LH Switch Housing

515178102

$266.12

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515177931

$74.58

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3210

4 Circuits Female Housing

515178177

$11.89

3250

Rocket Switch

515178501

$19.20

4820

Elastic Stop Nut M6

232561434

$1.55

5000

Vehicle Control Unit

420464172

$532.32

5020

Module Support

512061397

$14.54

5025

Hex. Flange Screw K40 X 16

241141660

$1.25
