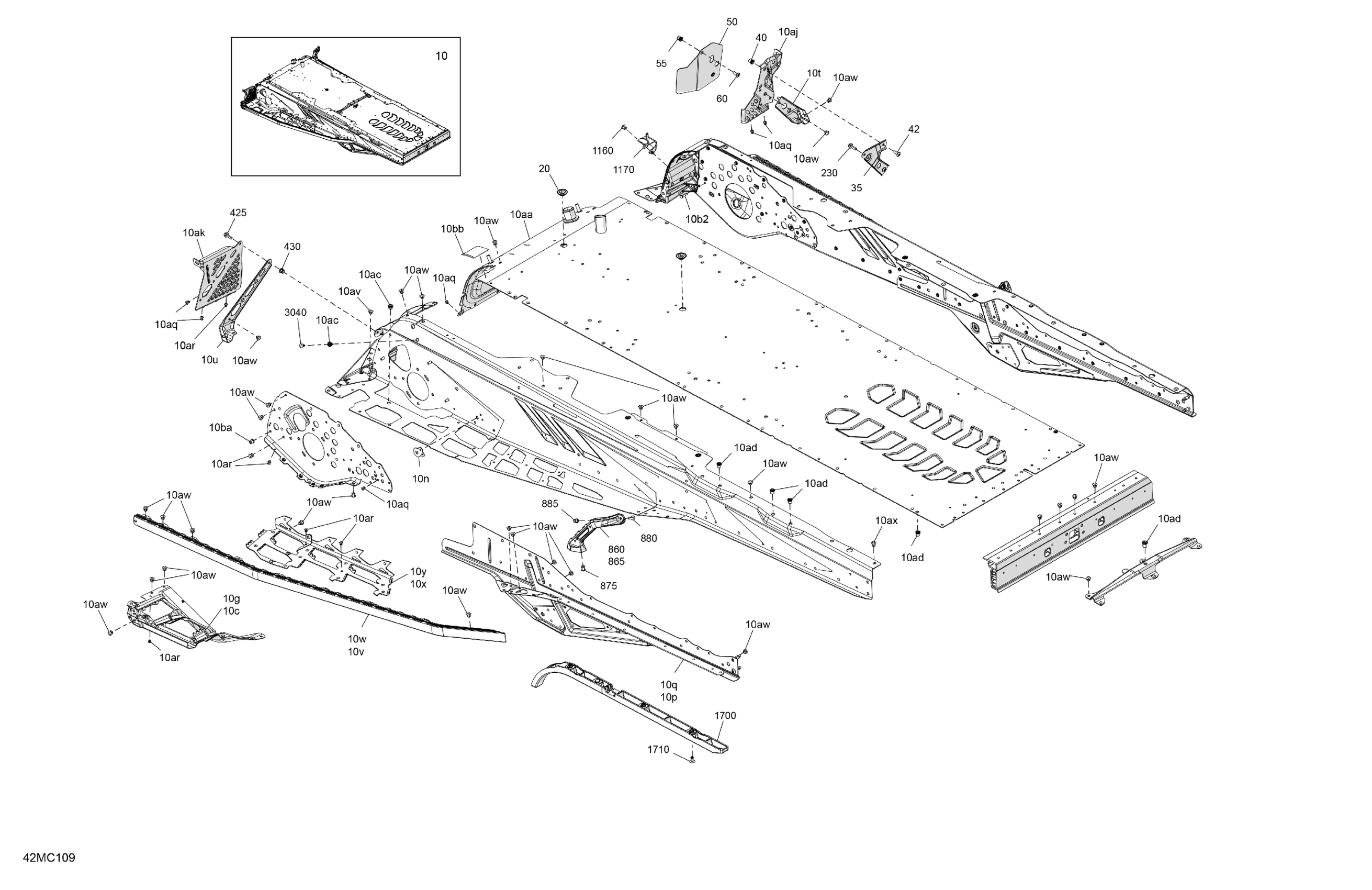

Ski-Doo EXPEDITION LE 900 ACE TURBO R - 24 INCH - (AXPC-AXPD) - 2023 Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10bb

518334283

$3.00

Clinch Stud M6 X 20

250300027

$2.09

Deep Black, RH Footrest Reinforcement

518332803

$86.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

Front Suspension Arm Reinforcement

518335959

$4.19

RH Rear Suspension Support

518333792

$109.99

LH Rear Suspension Support

518333791

$109.99

RH Footrest Reinforcement

518329789

$19.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

RH Roller

518329648

$194.99

LH Roller

518328452

$194.99

RH Tunnel Liner

518329646

$35.99

LH Tunnel Liner

518329647

$35.99

Radiator Tunnel 154

518335121

$625.49

Clinch Nut M6 Hexsert

605636003

$4.23

Insert

293450275

$12.99

RH Footrest

518331822

$24.49

LH Footrest

518332977

$43.49

Avex Rivet

390909100

$0.30

Avex Rivet

390909200

$0.30

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Collar Huck Magna-Grip 6.4

293150149

$0.48

Aluminum foil

44110

Unavailable

Black, Plug

293730052

$9.19

RH Stirrup Reinforcement

518331727

$19.99

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Muffler Support Ass'y

518334031

$21.99

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Dart

293730079

$2.09
