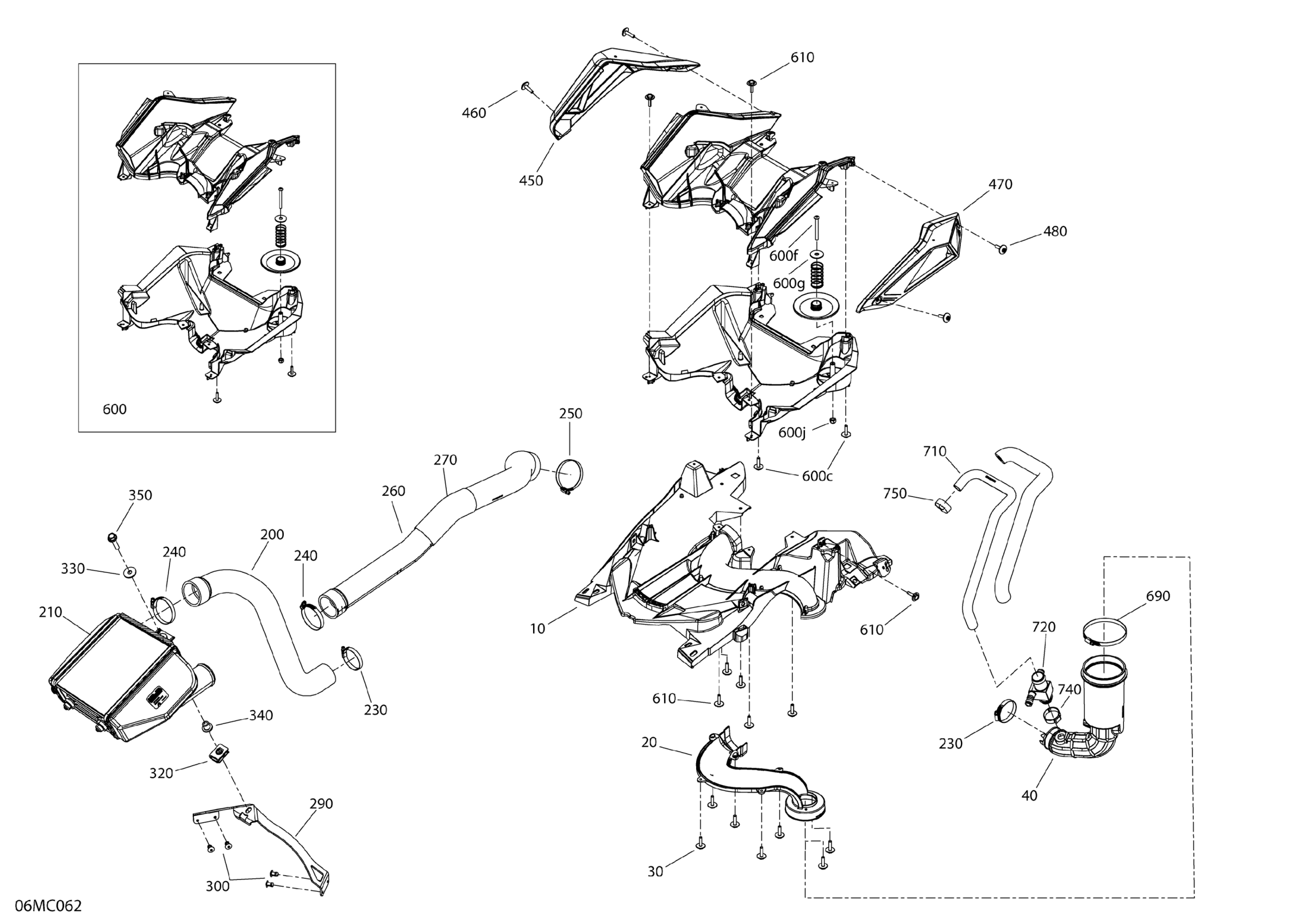

Ski-Doo 018 - EXPEDITION LE 900 ACE TURBO R - 24 INCH - (AXPC-AXPD) - North America, 2023 02- Engine - Air Intake Diagram

Description

Price

Multi Purpose Plate

508001077

$39.99

Tube In

508000887

$13.49

Screw M4 X 16

250000725

$3.49

Intake Silencer

508001183

$54.99

200

Inlet Hose

508001115

$76.99

210

Intercooler

508001317

$404.49

230

Mounting Clamp

293650303

$3.59

240

Mounting Clamp

293650302

$3.72

250

Mounting Clamp

293650302

$3.72

260

Inlet Hose

508001114

$92.99

270

Protector Tube

508001033

$13.49

290

Rear Support

508001053

$36.99

300

Avex Rivet

390909100

$0.30

320

Panel Nut M6 X 1.0

250100208

$1.46

330

Flat Washer

250200082

$0.42

340

Bushing

293900151

$7.66

350

Hex. Flange Screw M6 X 25

207562544

$1.69

450

RH Air Filter (Nitex Mesh)

508000906

$38.99

460

Screw M4 X 16

250000889

$3.09

470

LH Air Filter (Nitex Mesh)

508000905

$38.99

480

Screw M4 X 16

250000889

$3.09

600

Air Duct Ass'y | Includes 600 to 600j

508001078

$64.99

600c

Screw M4 X 16

250000725

$3.49

600f

Socket Head Screw M4 X 40

205444056

$2.11

600g

Flat Washer

224060201

$1.26

600j

Elastic Stop Nut M4

232541414

$0.58

610

Screw M4 X 16

250000725

$3.49

690

Norma Clamp

514052924

$14.22

710

Vent Hose

508001272

$15.49

720

Heated Breather

508000946

$27.99

740

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

750

Tridon Gear Clamp

293650172

$3.09
