Description

Price

10a1

Fixed Flange Ass'y

417224210

$209.99

10a2

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417224767

$349.99

10a2b

Bushing

293250389

$21.99

10a2c

Circlip

293370137

$3.28

10a2d

Back Torque Roller

417224153

$16.99

10a2f

Pulley Roller Ext

417224916

$31.99

10a2g

Pin

417224510

$9.95

10a2h

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10a3

Drive Pulley Spider Ass'y | Includes 10a3 to 10a3h

417225180

$209.99

10a3b

Stopper Spring

417224910

$10.16

10a3c

Spring Guide

417224614

$10.49

10a3d

Roller Pulley Ass'y

417224861

$33.99

10a3f

Axle - 10mm

417224204

$10.49

10a3g

Thrust Washer

417224868

$2.32

10a3h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10b

Clutch Spring

417224330

$28.49

10c

Seat Spring

417224003

$10.38

10d

Circlip

293370116

$3.28

10f

Ramp 880 Ass'y

417224290

$31.99

10g

Pin Ramp

417224694

$10.49

10h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10k

Coupling Flange

417224680

$45.99

10m

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127645

$459.99

100a3

Pulley Roller

417127016

$24.49

100a4

Pivot Stud

417127294

$14.49

100a5

Lock Washer 8 mm

250200009

$2.11

100a6

Spring Pin

250400070

$2.00

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100b2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100b3

Circlip

293370049

$4.99

100c

Cam Driven Pulley Ass'y | Includes 100c to 100c3

417127756

$132.99

100c2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100c3

Circlip

293370049

$4.99

100d

Green, Spring

417127137

$41.49

100f

Swivel Abutment

417127116

$9.39

100g

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100h

Calibration Ass'y

415129604

$21.49

100j

Socket Screw M5 X 25

250000981

$1.68

100k

Flat Washer M5

234051410

$0.53

100m

Elastic Stop Nut M5

232551414

$0.87

100n

Washer

417127155

$8.26

100p

Ball Bearing

504152574

$35.99

200

Drive Belt

417300571

$239.99

300

Belt Guard

417300620

$73.99

330

Front Retaining Hook

417300525

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Cooling Duct

417300609

$26.99

370

Pop Rivet 3/16"

293150103

$0.55

450

Front Guard Support

417300583

$14.49

480

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

500

Rear Guard Support

417300633

$13.99

510

Hex. Flange Screw M6 X 20

207562056

$2.11

520

Hair Pin

114045200

$11.11

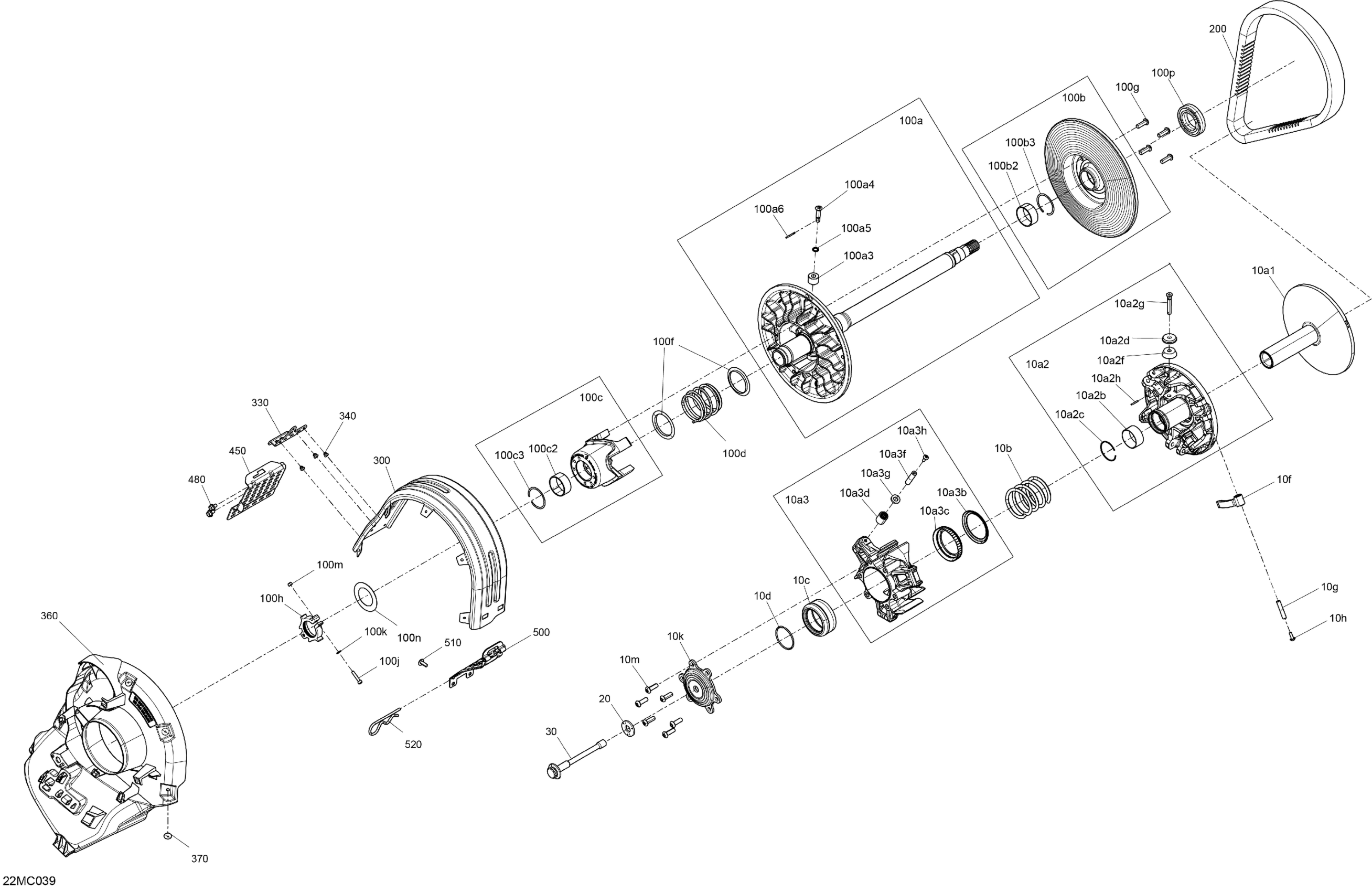

Ski-Doo EXPEDITION LE 900 ACE TURBO R - 24 INCH - (AXPA-AXPB) - 2023 Drive - Pulley Diagram
