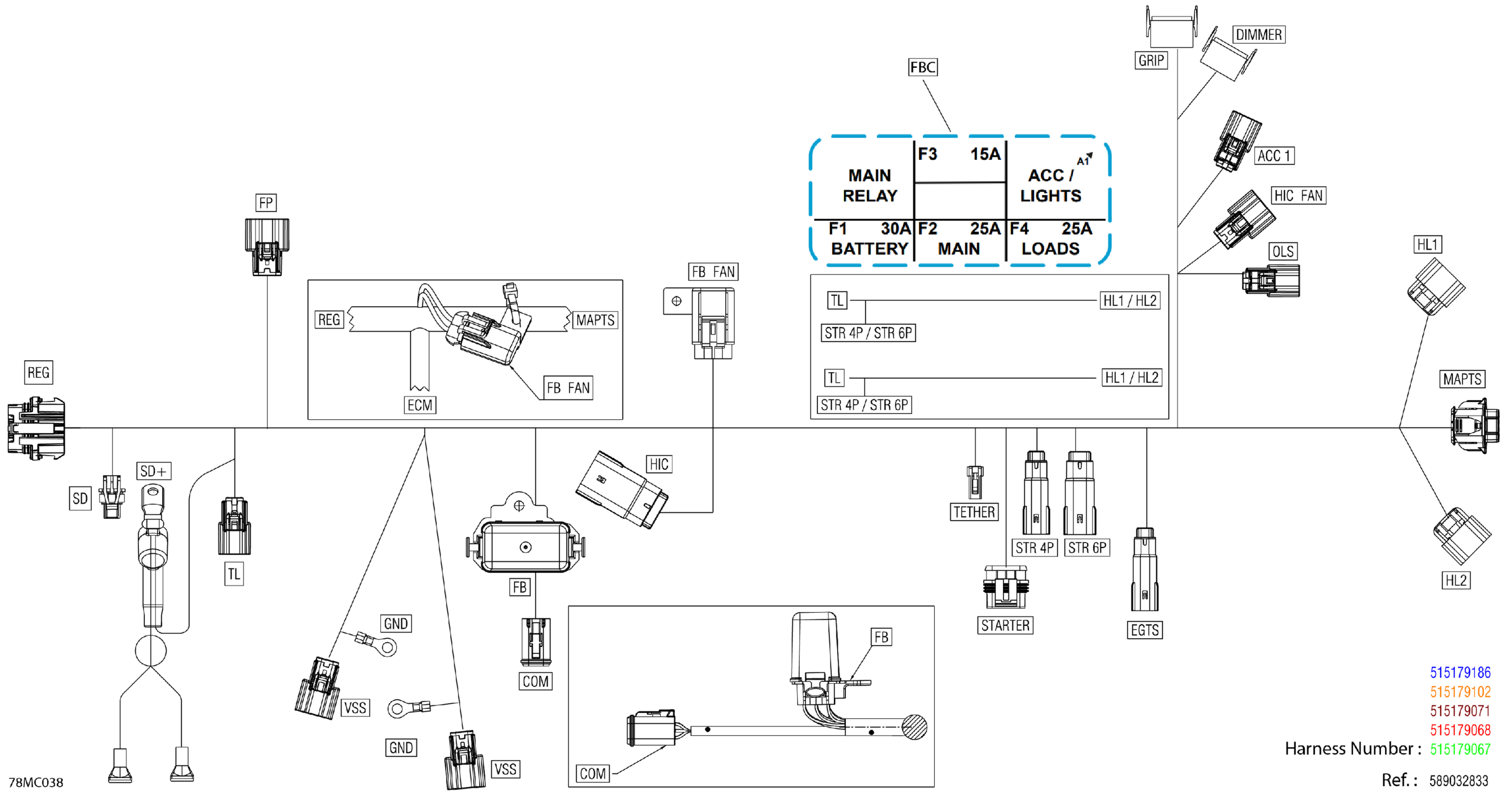

Ski-Doo 016 - SUMMIT 600 EFI - 55 - NEO+ - (TVPC) - North America, 2023 08- Electric - Main Harness - 515179401 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179401

$309.99

ACC1

2 Circuits Female Housing

278002853

$17.99

ACC1

Female Terminal

515178014

$2.39

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

DIMMER

Housing, 12 Circuits

515178174

$11.49

DIMMER

Terminal

710003048

$4.39

ECM

Cover, 48 positions

710001591

$12.18

ECM

48 Circuits Female Housing

515178168

$46.49

ECM

Plug

710001592

$2.21

ECM

Plug

710001593

$2.21

ECM

Female Terminal

710001589

$2.21

ECM

Female Terminal

710001727

$3.19

EGTS

2 Circuits Male Housing

515178020

$23.99

EGTS

Male Terminal

515178013

$3.19

F1

Little Fuse, 30 Amperes

710000747

$8.49

F2

Little Fuse, 25 Ampere

278002389

$4.55

F3

Little Fuse, 15 Ampere

710000745

$8.49

F4

Little Fuse, 25 Ampere

278002389

$4.55

FB

Fuse Box Cover

278002286

$27.49

FB

Fuse Box Ass'y

515178762

$28.49

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Wire Seal

710000048

$7.69

FB

Female Terminal

515177177

$6.49

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FBC

Fuse Box Cover

278002286

$27.49

FBC

Fuses Decal

516011640

Unavailable

FP

Female Housing

515178474

$34.99

FP

Female Terminal

515178018

$1.19

GND

Open Barrel Terminal

278001392

$4.79

GRIP

4 Circuits Female Housing

515178175

$12.99

GRIP

Female Terminal

515178302

$5.39

HIC

Clip Connector

515178223

$2.09

HIC

Block 12

515178578

$13.16

HIC

Male Terminal

515178013

$3.19

HL1

Female Housing

515178006

$15.28

HL1

Seal Wire

710001332

$3.28

HL1

Terminal

710001228

$3.28

HL2

Female Housing

515178006

$15.28

HL2

Seal Wire

710001332

$3.28

HL2

Terminal

710001228

$3.28

MAPTS

Male Connector

515176410

$51.49

MAPTS

Seal

415128501

$1.89

MAPTS

Female Terminal

710001137

$4.55

MG

Female Housing 20 Circuits

278002858

$22.49

MG

Sealing Cap

278002860

$1.79

MG

Female Terminal

515178018

$1.19

MG

Female Terminal

515178014

$2.39

OLS

Connector 2 Pins with CPA

710005827

$23.49

OLS

Female Terminal

515178018

$1.19

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Seal

710000881

$17.99

REG

Seal

278003685

$16.79

REG

Female Terminal

710000877

$9.12

RY1

Relay

715900824

$21.99

RY2

Relay

715900824

$21.99

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD+

Terminal

515177214

$7.86

STARTER

Female Housing, 4 Circuits

409209700

$16.18

STARTER

Plug

409013700

$4.55

STARTER

Wire Seal

278001013

$3.28

STARTER

Female Terminal

278001014

$3.28

STR 4P

Male Housing Connector 4 Pins

515178347

$14.28

STR 4P

Male Terminal

515178013

$3.19

STR 6P

Housing 6 Circuits

278003866

$13.75

STR 6P

Male Terminal

515178013

$3.19

TETHER

Female Housing, 2 Circuits

515175658

$16.18

TETHER

Female Terminal

515175231

$4.39

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

TL

Female Terminal

515178018

$1.19

TL

Female Terminal

515178014

$2.39

VSS

Housing

515178954

$35.99

VSS

Female Terminal

515178018

$1.19
