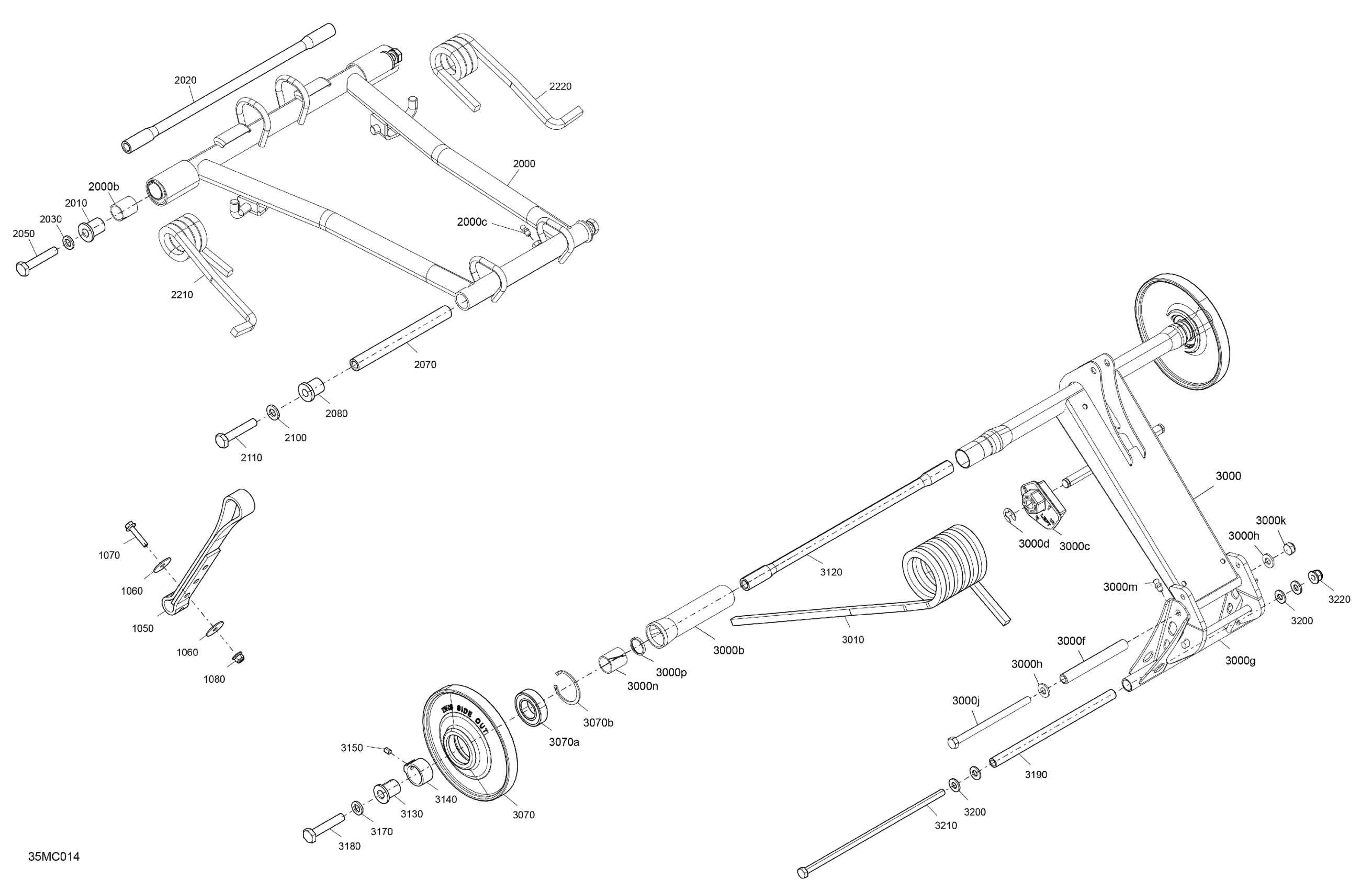

Ski-Doo SUMMIT 600 EFI - 55 - NEO+ - (TVPC) - 2023 Suspension - Rear - Upper Section Diagram

Description

Price

1050

Stopper Strap

503195313

$28.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

2000

Front Suspension Arm Ass'y | Includes 2000 to 2000c

503196681

$402.49

2000b

Extended Bushing

503191556

$7.83

2000c

Grease Fitting

408200700

$3.49

2010

Bushing

503191262

$15.79

2020

Upper Shaft

503191215

$38.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2070

Lower Shaft

503191279

$28.99

2080

Bushing

503189324

$14.15

2100

Washer

503192496

$0.77

2110

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2210

LH Front Torsion Spring

503195606

$104.99

2220

RH Front Torsion Spring

503195607

$104.99

3000

Rear Suspension Arm Ass'y | Includes 3000 to 3000p

503195595

$185.49

3000b

Bushing

572080700

$17.39

3000c

LH Cam Adjuster

503191565

$16.49

3000d

E-Circlip

293370013

$0.65

3000f

Upper Axle, Pivot Arm

503144300

$11.65

3000g

Shackle | Includes 3000g to 3000g4

503196689

$121.99

3000h

Washer

503192494

$3.17

3000j

Hex Screw M8 X 125

250001236

$0.85

3000k

Hex. Elastic Stop Nut M8

232581414

$0.56

3000m

Grease Fitting

408200700

$3.49

3000n

Extended Bushing

503191556

$7.83

3000p

Washer

503191651

$8.32

3010

Black, LH Spring Square

503192271

$80.49

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503191215

$38.99

3130

Bushing

503191262

$15.79

3140

Retaining Ring

503194366

$39.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503196358

$19.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01
