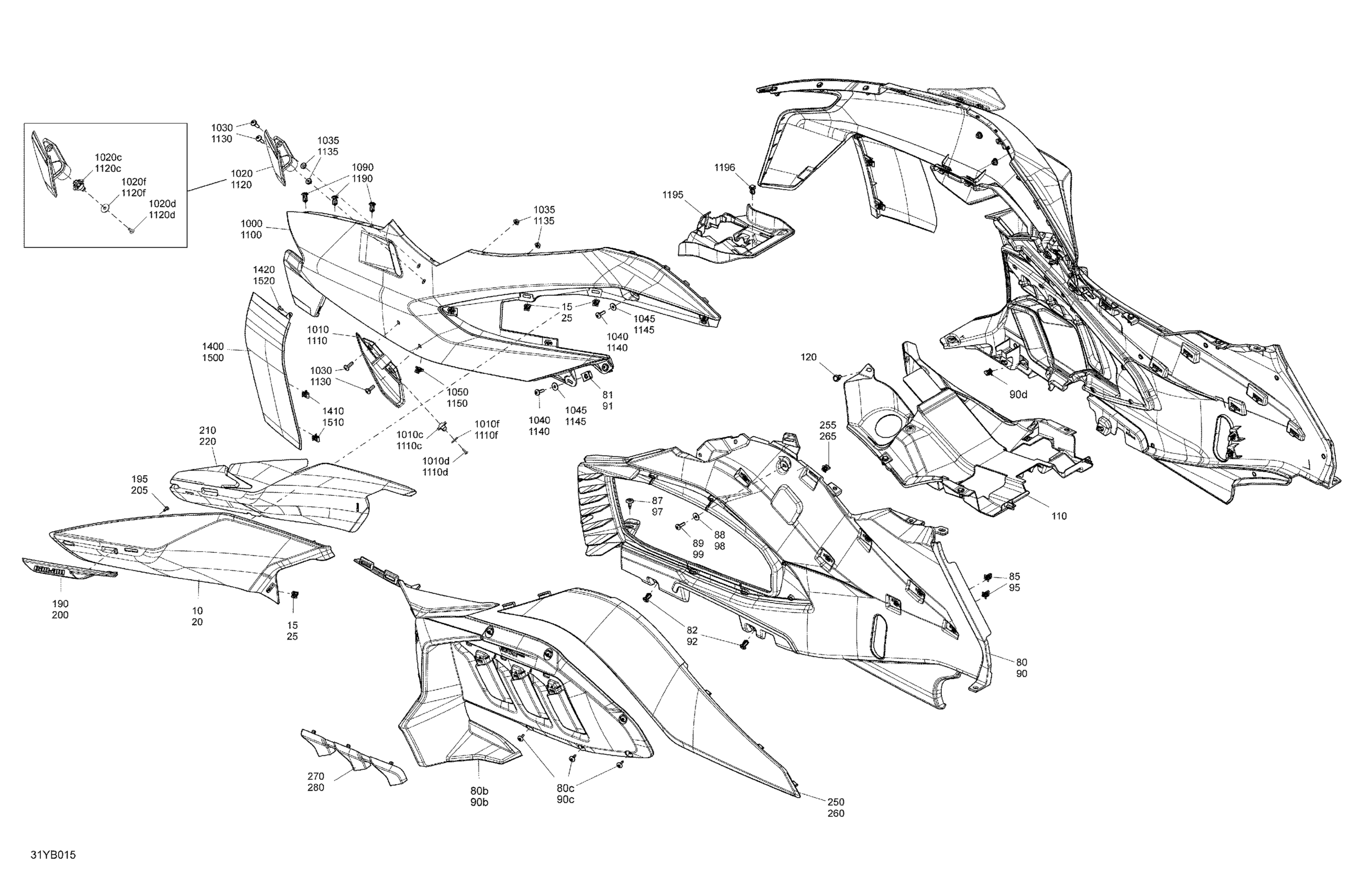

Can-Am RT LIMITED - Special Series - Mystery Blue Satin, 2022 Body - System Diagram

#

Description
Price

10

Black, LH Access Cover

705013938

$74.00

15

Edge Clip

517302785

Unavailable

20

Black, RH Access Cover

705013939

$74.00

25

Edge Clip

517302785

Unavailable

80

LH Central Fairing Ass'y | Includes 80 to 80c

705017527

$210.00

80b

LH Deflector

705016438

$150.00

80c

Screw Type K-40 M4 X 16

250001105

$2.22

81

Panel Nut M6 X 1.0

250100208

Unavailable

82

Tuflok Plastic Rivet

293150230

Unavailable

85

Edge Clip

517302785

Unavailable

87

Tuflock Phillips Plastic Screw

414745900

Unavailable

88

Stainless Steel Flat Washer

234062670

Unavailable

89

Torx Truss Screw M6 X 25

250000807

Unavailable

90

RH Central Fairing Ass'y | Includes 90 to 90d

705017528

$210.00

90b

RH Deflector

705016439

$150.00

90c

Screw Type K-40 M4 X 16

250001105

$2.22

90d

Edge Clip

517302785

Unavailable

91

Panel Nut M6 X 1.0

250100208

Unavailable

92

Tuflok Plastic Rivet

293150230

Unavailable

95

Edge Clip

517302785

Unavailable

97

Tuflock Phillips Plastic Screw

414745900

Unavailable

98

Stainless Steel Flat Washer

234062670

Unavailable

99

Torx Truss Screw M6 X 20

250000705

Unavailable

110

Tank Guard

705016790

$28.00

120

Tuflok Plastic Rivet

293150230

Unavailable

190

Sterling Silver, LH Fairing Trim

708304106

$155.00

195

Torx Truss PT K40 x 12

250001131

Unavailable

200

Sterling Silver, RH Fairing Trim

708304107

$155.00

205

Torx Truss PT K40 x 12

250001131

Unavailable

210

LH Front Trim Acoustic Insulation

518331044

$20.00

220

RH Front Trim Acoustic Insulation

518331045

$20.00

250

Mystery Blue, LH Upper Fairing

705016729

$250.00

255

Edge Clip

517302785

Unavailable

260

Mystery Blue, RH Upper Fairing

705016730

$250.00

265

Edge Clip

517302785

Unavailable

270

Sterling Silver, RH Engine Trim

708304109

$155.00

280

Sterling Silver, LH Engine Trim

708304108

$155.00

1000

Mystery Bue, LH Front Fairing

708201139

$460.00

1010

Lower Air Deflector Kit | Includes 1010 to 1010f

219401088

$138.00

1010c

RING_ADJUSTING - Call your local BRP dealership

705015127

$7.00

1010d

Torx Truss PT K40 x 12

250001131

Unavailable

1010f

Flat Washer M6, Stainless

234062600

Unavailable

1020

Upper Air Deflector Kit | Includes 1020 to 1020f

219401040

$138.00

1020c

RING_ADJUSTING - Call your local BRP dealership

705015127

$7.00

1020d

Torx Truss PT K40 x 12

250001131

Unavailable

1020f

Flat Washer M6, Stainless

234062600

Unavailable

1030

Torx Truss Screw M6 X 20

250000705

Unavailable

1035

Hex. Flange Nut M6

233161414

Unavailable

1040

Torx Truss Screw M6 X 20

250000705

Unavailable

1045

Stainless Steel Flat Washer

234062670

Unavailable

1050

Edge Clip

517302785

Unavailable

1090

Tuflok Plastic Rivet

293150230

Unavailable

1100

Mystery Blue, RH Front Fairing

708201140

$460.00

1110

Lower Air Deflector Kit | Includes 1010 to 1010f

219401088

$138.00

1110c

RING_ADJUSTING - Call your local BRP dealership

705015127

$7.00

1110d

Torx Truss PT K40 x 12

250001131

Unavailable

1110f

Flat Washer M6, Stainless

234062600

Unavailable

1120

Upper Air Deflector Kit | Includes 1020 to 1020f

219401040

$138.00

1120c

RING_ADJUSTING - Call your local BRP dealership

705015127

$7.00

1120d

Torx Truss PT K40 x 12

250001131

Unavailable

1120f

Flat Washer M6, Stainless

234062600

Unavailable

1130

Torx Truss Screw M6 X 20

250000705

Unavailable

1135

Hex. Flange Nut M6

233161414

Unavailable

1140

Torx Truss Screw M6 X 20

250000705

Unavailable

1145

Stainless Steel Flat Washer

234062670

Unavailable

1150

Edge Clip

517302785

Unavailable

1190

Tuflok Plastic Rivet

293150230

Unavailable

1195

Heat Shield

705014871

$18.00

1196

Tuflok Plastic Rivet

293150230

Unavailable

1400

LH Scoop In

708201167

$79.00

1410

Edge Clip

517302785

Unavailable

1420

Torx Truss PT K40 x 12

250001131

Unavailable

1500

RH Scoop In

708201168

$45.00

1510

Edge Clip

517302785

Unavailable

1520

Torx Truss PT K40 x 12

250001131

Unavailable
