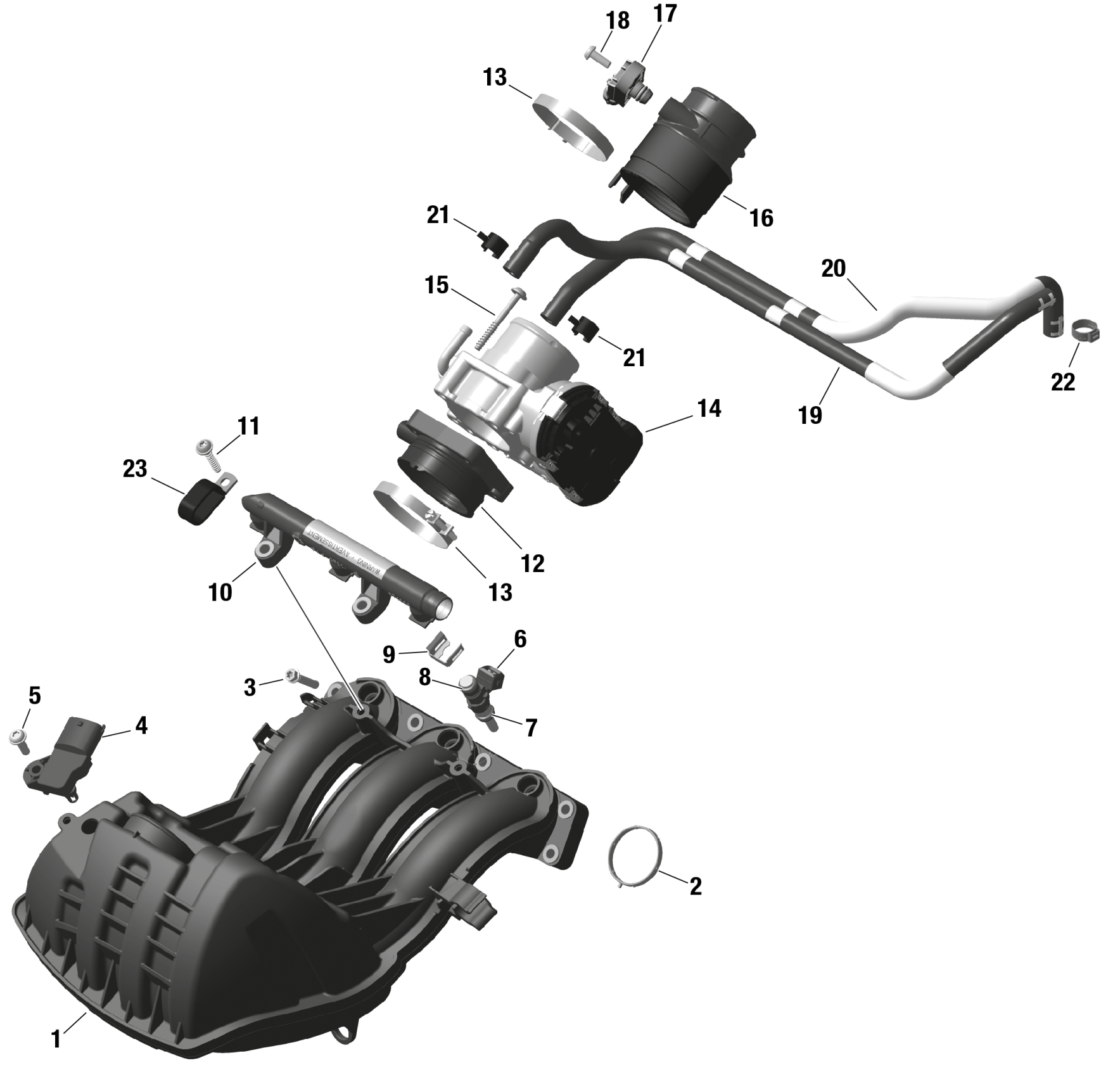

Ski-Doo 016 - RENEGADE 900 ACE TURBO - ADRENALINE - North America, 2023 01- ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Airbox Ass'y | Includes no. 1-2

420867342

$239.99

2

Gasket | Included in gasket kit

420431662

$10.33

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Pressure And Temperature Sensor

420874651

$169.99

5

Torx Flange Screw M6 X 20

420841103

$3.66

6

Injection Valve | Includes no. 10-12

420874858

$164.49

7

O-Ring

420831050

$20.49

8

O-Ring

420430775

$4.29

9

Injector Clip

420853030

$3.09

10

Fuel Rail

420874966

$14.49

11

Torx Screw 6X30

420441575

$3.06

12

Intake Neck

420867110

$35.99

13

Hose Clamp 60-80

420251832

$15.27

14

Throttle Body

420893148

$381.49

15

Torx Flange Screw M6 X 50

420441588

$4.44

16

Connecting Socket

420867556

$35.99

17

Pressure Sensor

420274052

$139.99

18

Molded Hose

420201506

$30.49

19

Molded Hose

420201500

$24.99

20

Clamp

420853511

$7.51

21

Clamp

420853308

$5.39

22

Double Clamp

420951830

$14.22

23

Not Available As Spare Parts

XXX

Unavailable
