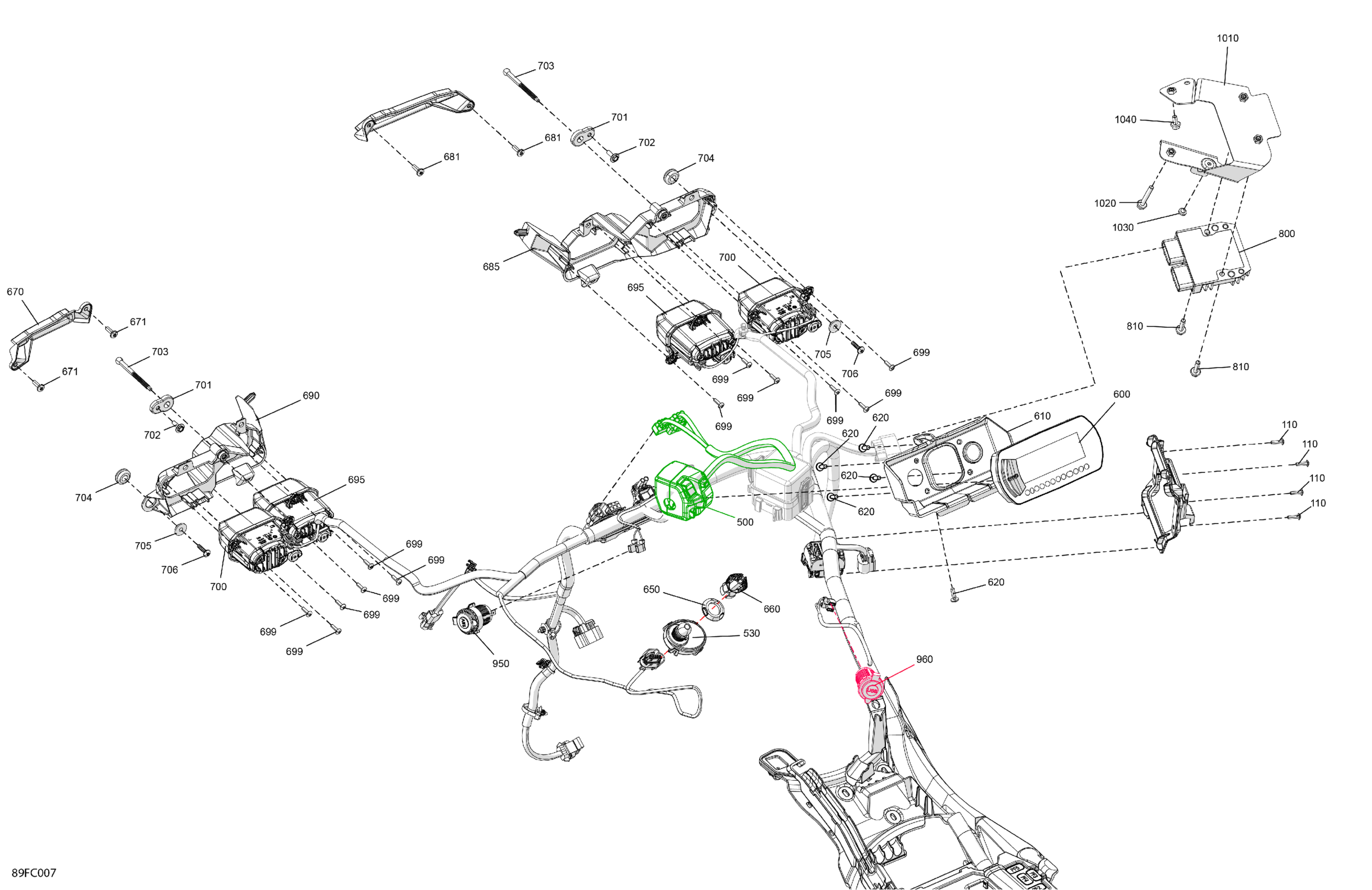

Can-Am Outlander PRO Hunting Edition HD7 - 2023 Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

$2.11

500

LH Front Switch Housing

710006671

$289.99

530

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

600

Multifunction Gauge Compact Mono

710008108

$409.99

610

Int Gauge Support

710007694

$6.09

620

Torx Screw K50 X 16

250000720

$1.69

650

Specialized Nut

278004274

$3.28

660

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

660

Grey, Can-Am DESS Key

515179384

$63.49

670

LH Cap

705015024

$11.99

671

Torx Screw K50 X 16

250000720

$1.69

681

Torx Screw K50 X 16

250000720

$1.69

685

RH Front Headlight Support

710008319

$47.99

690

LH Front Headlight Support

710008318

$47.99

695

HIgh Beam Light

710006910

$129.99

699

Torx-Truss Pt K40 X 16

250000759

$2.11

700

Low Beam Light

710008088

$139.99

701

Ball Socket

293900157

$9.59

702

Screw PT Type K-50 X 16

250000959

$2.11

703

Ajustment Screw

710005837

$6.35

704

Grommet

709000582

$4.69

705

Shoulder Bushing

710004749

$2.69

706

Torx Screw K50 X 16

250000720

$1.69

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

810

Hex. Flange Screw M6 X 25

207562544

$1.69

950

DC Outlet

710001248

$37.99

960

USB Outlet

219400510

$42.99

1010

Voltage Regulator Support

710006542

$17.49

1020

Hex. Flange Screw M6 X 40

207664044

$2.22

1030

Rubber Stopper

293830229

$8.79

1040

Hex. Flange Screw M6 X 12

207661244

$2.11
