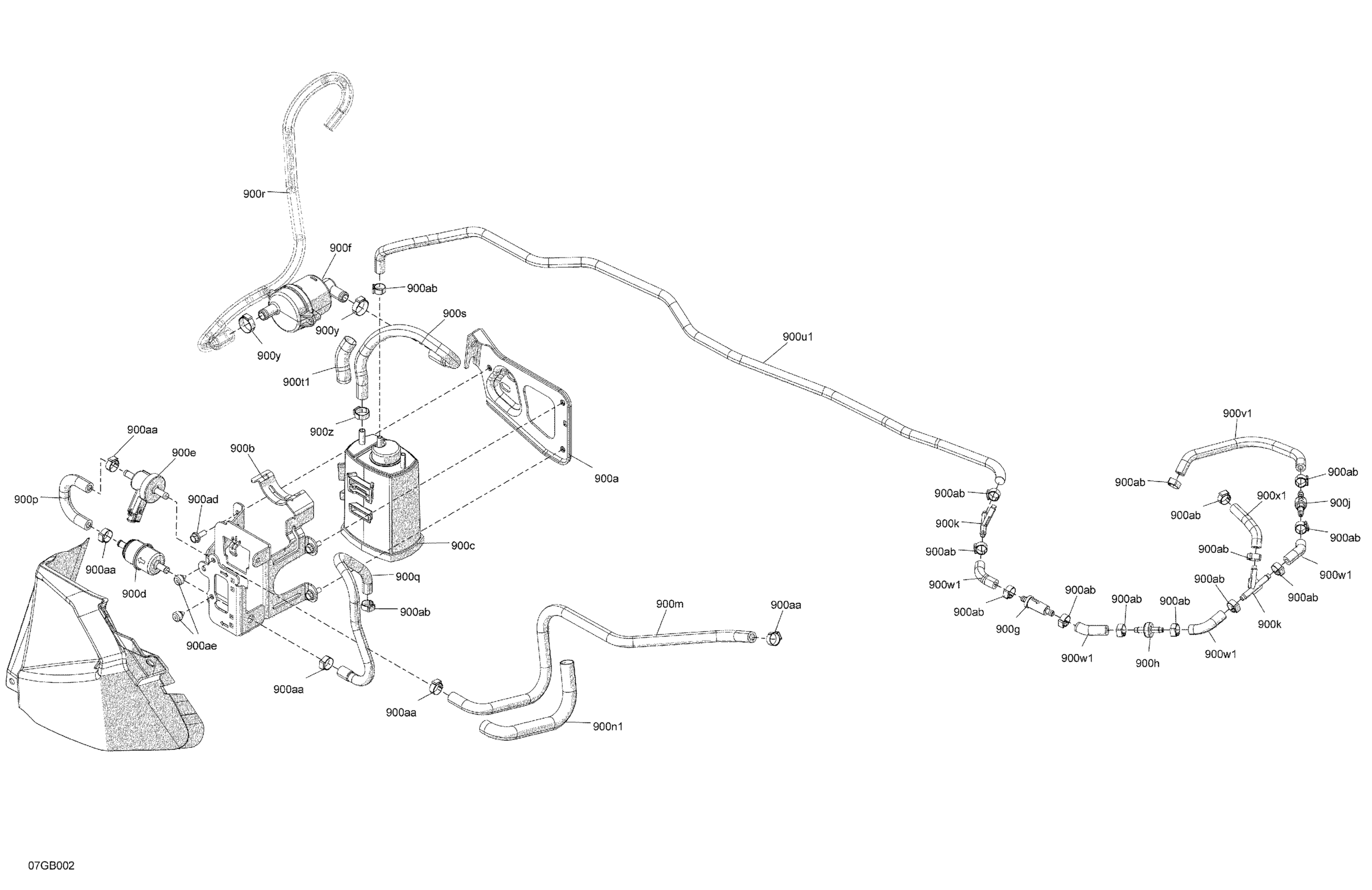

Can-Am Outlander MAX 570 EFI - XT - (2ZNA-2ZNB) 2022 Engine - Charcoal Canister Assembly Diagram

Description

Price

900a

Charcoal Canister Support

709001222

$38.03

900b

Charcoal Canister Support

709001221

$93.25

900c

Vapor Canister

709000090

$84.30

900d

Fuel Filter

513034047

$35.99

900e

Bleed Valve

709000443

$65.64

900f

Air Filter

709001109

$19.37

900g

Filter

709001120

$7.48

900h

Check Valve

275500398

$9.84

900j

Check Valve

513033469

$29.07

900k

Y-Fitting

293710059

$9.40

900m

Hose

709001237

$36.54

900n1

Tubing 16 Mm 1000Mm Long

219704408

$7.15

900p

Hose

709001256

$27.58

900q

Hose

709001225

$24.60

900r

Hose Fuel Vapour Canister

709001226

$20.87

900s

Hose

709001227

$29.07

900t1

Tubing 16 Mm 1000Mm Long

219704408

$7.15

900u1

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

900v1

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

900w1

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

900x1

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

900y

Oetiker Clamp

293650186

$3.82

900z

Crimp Clamp

293650053

$2.78

900aa

Crimp Clamp, 15.3-706R

293650047

$3.03

900ab

Oetiker Clamp

293650042

$2.82

900ad

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

900ae

Rubber Bumper

293830005

$6.12
