Description

Price

10

Deep Black, Chassis Tunnel Module 146" | Includes 10 to 10at

415130551

$3,291.01

10c

Deep Black, RH Footrest Reinforcement

518330738

$79.82

10g

Deep Black, LH Footrest Reinforcement

518331523

$79.82

10h

Front Suspension Arm Reinforcement

518335959

$3.73

10k

LH Rear Suspension Support

518334406

$64.15

10m

RH Rear Suspension Support

518334407

$37.28

10n

Stirrup Reinforcement

518334507

$17.88

10p

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10q

RH Roller

518328451

$175.34

10r

LH Roller

518328452

$175.34

10s

LH Footrest Reinforcement

518332296

$17.88

10t

RH Footrest Reinforcement

518332297

$17.88

10u

LH Reinforcement Plate

518329088

$2.99

10v

RH Reinforcement Plate

518329089

$4.09

10w

Radiator Tunnel 146

518334489

$658.93

10y

Insert Half Hex Body M6 x 1.0

250100199

$2.91

10ab

Rear Cap

518328990

$20.12

10ad

RH Footrest

518333006

$37.28

10af

Black, Plug

293730052

$6.18

10ag

LH Footrest

518333007

$37.28

10aj

Rivet Avibulb 3/16

293150203

$0.28

10an

Henrob Rivet

293150245

$1.60

10aq

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10ar

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10as

Rivet Ornit 6,5 X 16.5

293150267

$1.88

10at

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

790

Insert

293450278

$3.97

1300

Rear Bumper 146 | Includes 1300 to 1300b

518334306

$141.01

1300b

Cap

520001612

$8.36

1400

Black, Dart 8 mm

293730047

$2.07

1405

Black, Dart 10 mm

293730060

$4.28

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

3040

Dart

293730079

$1.87

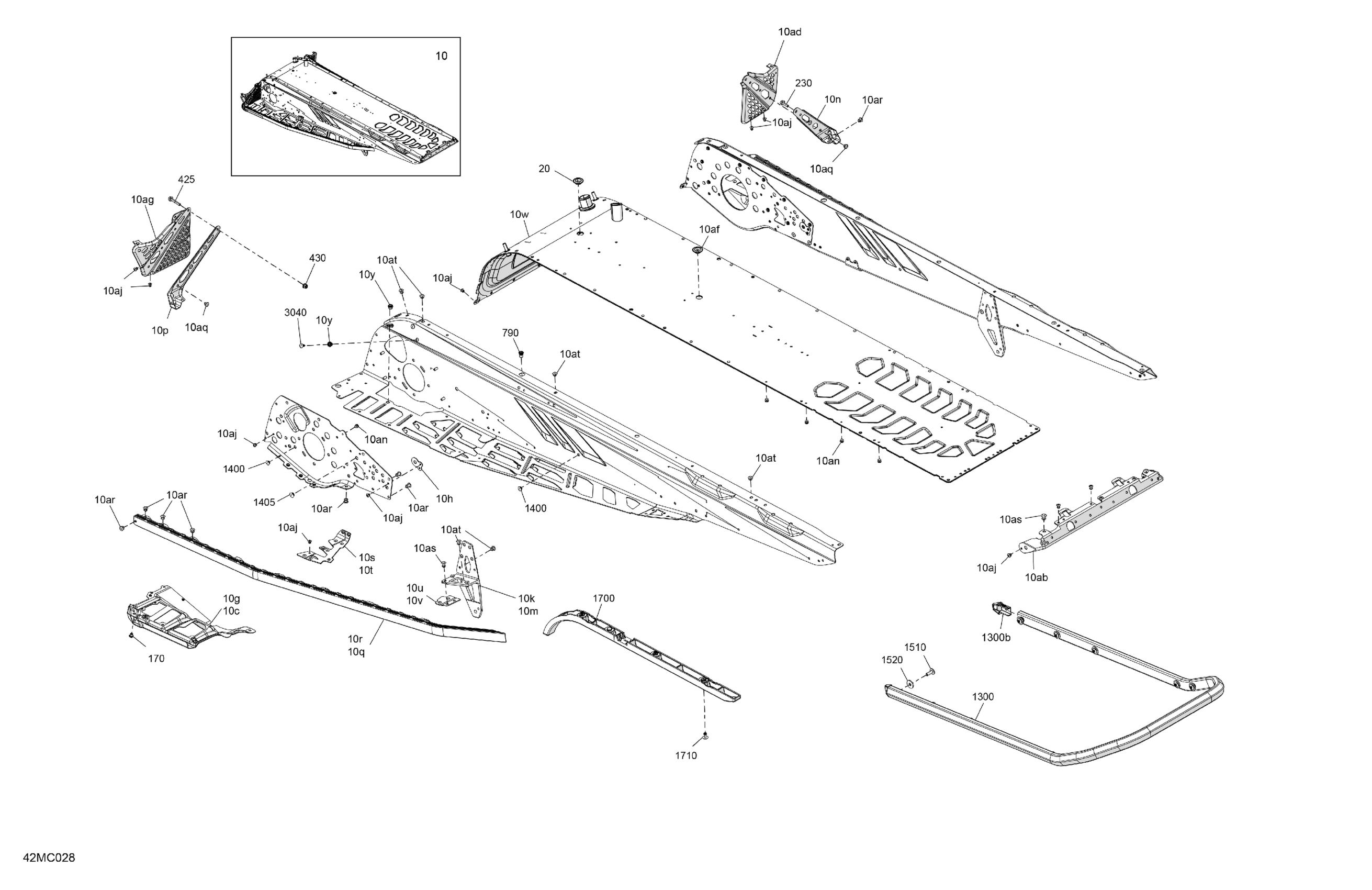

Ski-Doo SUMMIT 600 EFI - 55 - NEO+ - (TVPA) - 2023 Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 146" | Includes 10 to 10at

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

LH Rear Suspension Support

RH Rear Suspension Support

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

LH Footrest Reinforcement

RH Footrest Reinforcement

LH Reinforcement Plate

RH Reinforcement Plate

Radiator Tunnel 146

Insert Half Hex Body M6 x 1.0

Rear Cap

RH Footrest

Black, Plug

LH Footrest

Rivet Avibulb 3/16

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Rivet Ornit 6,5 X 16.5

Ornit Rivet 6,5 X 14.5

Black, Plug

Insert M5 - 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Insert

Rear Bumper 146 | Includes 1300 to 1300b

Cap

Black, Dart 8 mm

Black, Dart 10 mm

Front Protector

Pop Rivet 3/16”

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Dart
