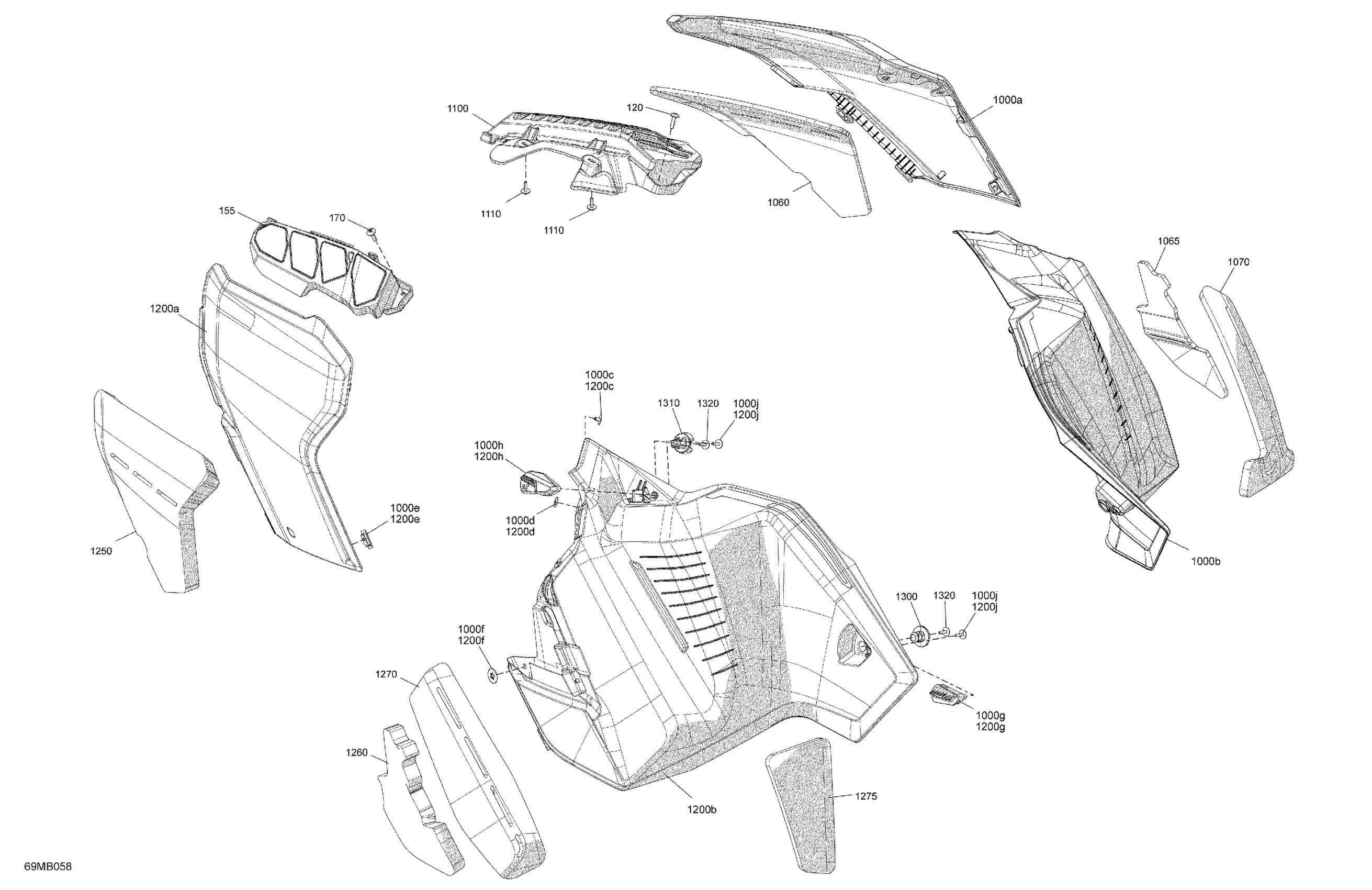

Ski-Doo RENEGADE 900 ACE TURBO - Enduro - 2022 Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$1.74

155

LH Hood Trim

517306690

$29.20

170

Torx Screw M5 X 20

250000528

$1.74

1000a

Deep Black, RH Front Panel

517307314

$175.35

1000b

RH Rear Panel

517306671

$175.35

1000c

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1000d

Washer

517124300

$0.16

1000e

Rivet Plate

517305109

$4.66

1000f

Push Nut

508000853

$1.92

1000g

RH Rear Latch

517305773

$14.22

1000h

RH Front Latch

517305979

$13.88

1000j

Screw M4 X 16

250000725

$2.87

1060

Foam

517306461

$13.63

1065

Foam

517306495

$5.25

1070

RH Rear Panel Foam

517306845

$13.63

1100

RH Hood Grille Ass'y

517308292

$75.35

1110

Screw M4 X 16

250000725

$2.87

1200a

Deep Black, LH Front Panel

517308779

$193.05

1200b

Deep Black, LH Rear Panel

517308780

$63.82

1200c

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1200d

Washer

517124300

$0.16

1200e

Rivet Plate

517305109

$4.66

1200f

Push Nut

508000853

$1.92

1200g

LH Rear Latch

517305774

$14.22

1200h

LH Front Latch

517305980

$14.22

1200j

Screw M4 X 16

250000725

$2.87

1250

Foam

517306463

$13.63

1260

Foam

517306464

$6.77

1270

Foam

517306465

$13.63

1275

LH Rear Panel Foam

517306496

$5.49

1300

Rear Stud

517305985

$15.00

1310

Front Stud

517305988

$15.35

1320

Screw M4 X 16

250000725

$2.87
