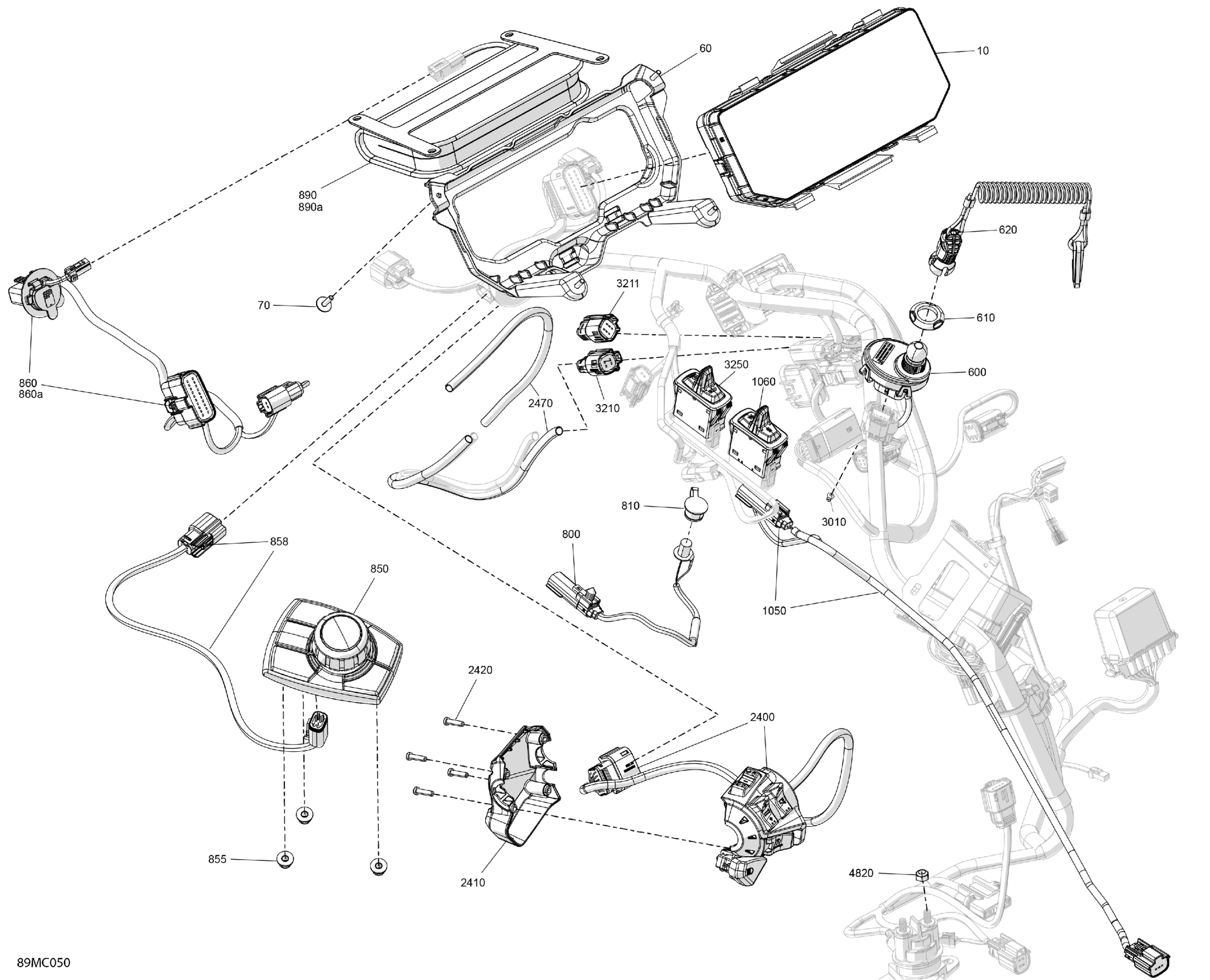

Ski-Doo 015 - RENEGADE 900 ACE - ENDURO - North America, 2023 08- Electric - Upper Section Diagram

Description

Price

Full Size Color Multifunction Gauge

515179262

$1.00

Gauge Support

515178965

$6.69

Screw M4 X 16

250000725

$3.49

600

Terminal DESS One Wire

515179305

$74.99

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Heated Visor Wiring Harness

515178645

$38.99

810

Cap

572103300

$10.49

850

Switch

515178325

$509.99

855

Elastic Flange Nut M6 X 1.0

233261416

$2.11

858

Adaptor Wiring Harness

515178958

$26.99

860

USB Wiring Harness | Includes 860 to 860a

515178758

$93.99

860a

USB Connector

710006405

$41.49

890

Protective Bag | Includes 890 to 890a

515179153

$119.99

890a

Push Nut

732610072

$2.19

1050

Seat Wiring Harness

515178608

$38.99

1060

Switch Rocker

515178502

$20.49

2400

LH Switch Housing

515178851

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

3010

Rivet

515177929

$2.21

3210

4 Circuits Female Housing

515178177

$12.18

3211

Coil Connector

515178202

$13.24

3250

Rocket Switch

515178501

$20.49

4820

Elastic Stop Nut M6

232561434

$1.99
