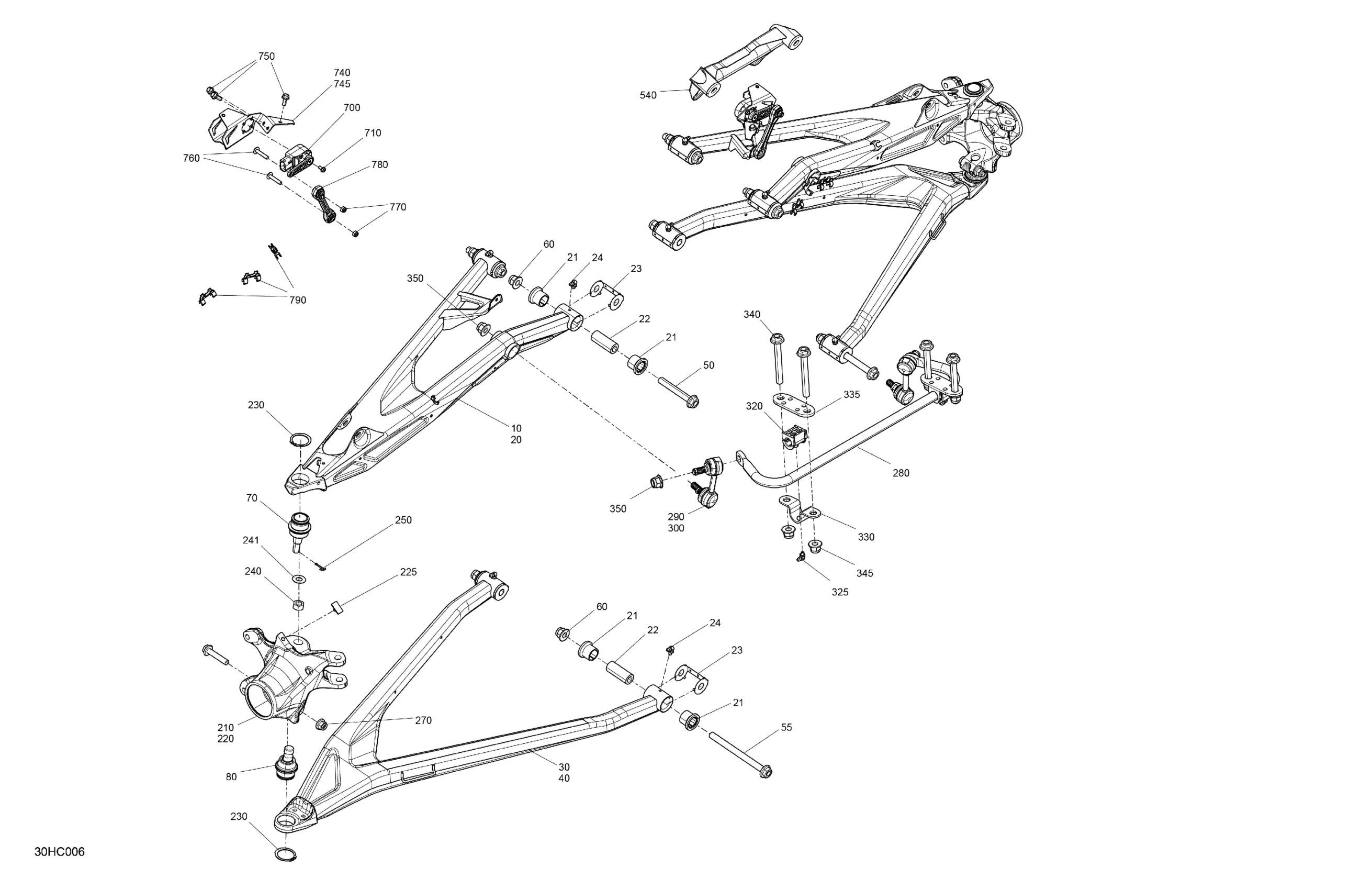

Can-Am Maverick MAX Turbo RR - XRS Smart Shock - 2023 Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706203685

$259.67

10

Magma Red, LH Upper Suspension Arm Ass'y With Balljoint | Macchiato
Satin Model This part replaces 706204276.

715011477

$264.15

10

Chalk, LH Upper Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205159.

715011471

$264.15

20

Deep Black, RH Upper Suspension Arm

706203686

$259.67

20

Magma Red, RH Upper Suspension Arm Ass'y With Balljoint | Macchiato
Satin Model This part replaces 706204278.

715011475

$264.15

20

Chalk, RH Upper Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205160.

715011470

$264.15

21

Suspension Arm Bushing

706204409

$8.40

22

Interior Bushing

706202257

$7.27

23

Wear Plate

706202300

$1.69

24

Grease Fitting 90°

293550056

$1.04

30

Deep Black, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204733.

715010614

$259.67

30

Chalk, LH Lower Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205165.

715010641

$264.15

40

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$259.67

40

Chalk, RH Lower Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205166.

715010652

$264.15

50

Flange Screw M12 X 85

250000859

$3.95

55

Flange Screw M12 X 145

250000861

$5.47

60

Elastic Flange Nut M12

250001195

$2.15

70

Ball Joint

706203084

$34.30

80

Ball Joint

706202045

$34.30

210

LH Front Knuckle

706204785

$187.28

220

RH Front Knuckle

706204786

$138.03

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.48

240

Hex Nut M12

250100239

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Stabilizer Bar Ass'y

706203953

$91.01

290

LH Stabilizer Bar Link

706203611

$62.66

300

RH Stabilizer Bar Link

706203612

$62.66

320

Stabilizer Bar Bushing

706204564

$3.58

325

Grease Fitting 90°

293550056

$1.04

330

Clamp

706202460

$6.19

335

Support Plate

706202551

$4.52

340

Hex. Flange Screw M12 X 95

250000876

$5.54

345

Elastic Flange Nut M12

250001195

$2.15

350

Elastic Flange Nut M12

250001195

$2.15

540

Black, Link

706202708

$49.97

540

Macchiato, Front Shock Reinforcement

706204350

$48.48

540

Macchiatio, Front Shock Reinforcement

706204492

$47.73

700

Suspension Position Sensor

710005235

$62.66

710

Hex. Flange Screw M5x10

207551056

$1.57

740

LH Front Sensor Support

705211588

$34.30

745

RH Front Sensor Support

705211589

$34.30

750

Hex. Flange Screw M6 X 16

207661654

$1.74

760

Stainless, Torx Screw M6 X 30

250000842

$1.74

770

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

780

Link

706203429

$17.88

790

Hose Support

706203549

$1.27
