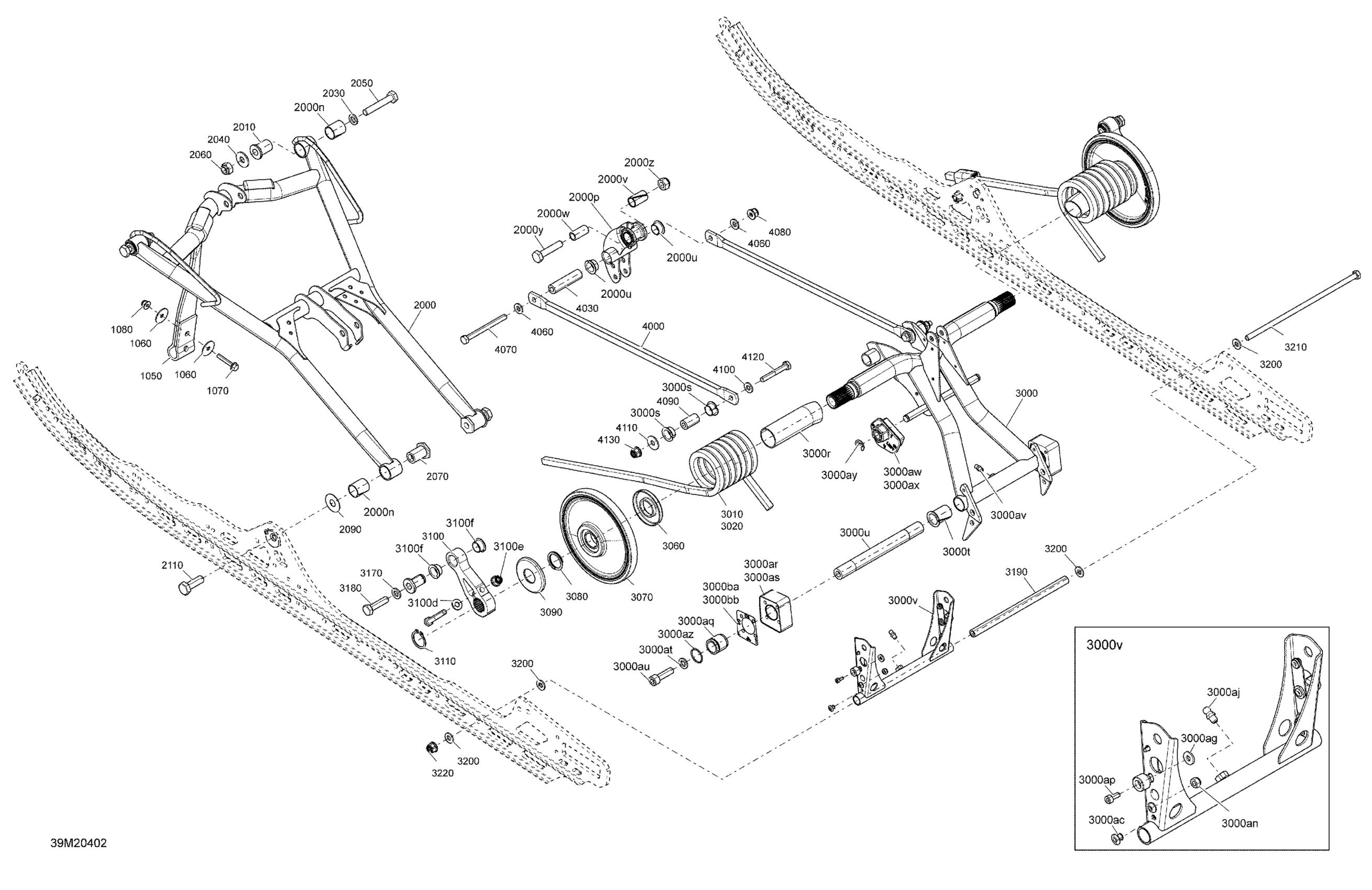

Ski-Doo RENEGADE 850 E-TEC - XRS rMotion X - 2020 Suspension, Rear - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503195313

$26.84

1060

Washer | Not Shown

503193995

$4.25

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

1080

Hex. Flange Elastic Nut M6

233261466

$1.91

2000

Front Arm | Included 2000 to 2000z

503193704

$429.82

2000n

Extended Bushing

503191556

$5.54

2000p

Rocker

503192531

$76.09

2000u

Swivel Bushing

503191555

$5.54

2000v

Bushing

503193037

$14.90

2000w

Bushing | Includes 240d to 240d1

503189282

$4.06

2000y

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

2000z

Elastic Locking Nut M10 X 1.5

233601416

$1.63

2010

Upper Axle

503193714

$13.67

2030

Washer

503192496

$0.73

2040

Washer

503191926

$1.52

2050

Hex. Cap Screw M10 X 60

207006056

$7.09

2060

Elastic Locking Nut M10

233601466

$2.00

2070

Lower Axle

503193716

$15.64

2090

Washer

503190656

$2.82

2110

Hex. Cap Screw M12 X 35

250000537

$3.01

3000

Rear Arm Ass'y | Included 3000 to 3000bb

503195290

$265.64

3000r

Bushing

503192767

$14.81

3000s

Swivel Bushing

503191555

$5.54

3000t

Cushion

503191640

$5.54

3000u

Lower Shaft

503195743

$17.13

3000v

Pivot Arm Ass'y | Includes 3000g to 3000g13

503195658

$88.78

3000ac

Pop Rivet 3/16"

390402200

$0.30

3000ag

Flat Washer

517225900

$0.16

3000aj

Grease Fitting

408200700

$3.21

3000an

Elastic Stop Nut M5

232551414

$0.82

3000ap

Socket Head Screw M4X 10

205041060

$2.00

3000aq

Guide

503195700

$5.67

3000ar

LH Cam

503195701

$2.04

3000as

RH Cam

503195702

$2.04

3000at

Flat Washer

250200143

$3.01

3000au

Socket Head Screw M10 X 35

205503554

$7.09

3000av

Grease Fitting

408200700

$3.21

3000aw

LH Cam Adjuster

503191565

$13.54

3000ax

RH Cam Adjuster

503191566

$13.54

3000ay

E-Circlip

293370013

$0.60

3000az

O-Ring

503195853

$2.18

3000ba

LH Block Sticker Decal

516004900

$15.64

3000bb

RH Block Sticker Decal

516004901

$15.64

3010

Black Lh Spring

503192105

$75.34

3020

Black, RH Spring Square

503192104

$75.34

3060

Labyrinth Seal

503190434

$4.16

3070

Black, Wheel Ass'y 165 | Includes 3070 to 3070b

503195817

$48.48

3080

Axle Spring

503189146

$7.31

3090

Labyrinth Ring

503192592

$4.52

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$75.34

3100d

Washer

503192494

$3.01

3100e

Elastic Flange Nut M8

233281466

$0.96

3100f

Swivel Bushing

503191555

$5.54

3110

Retaining Ring

293370080

$2.06

3170

Washer

503192496

$0.73

3180

Cap Screw Hex. M10 X 40

207204056

$7.09

3190

Pivot Arm Axle

503189156

$20.12

3200

Washer

503192494

$3.01

3210

Bolt M8 X 248mm

503192440

$29.07

3220

Elastic Flange Nut M8

233281466

$0.96

4000

Accélération Link Rod

503193814

$23.85

4030

Axle Bar (Long)

503190643

$14.90

4060

Washer

503192494

$3.01

4070

Screw M8 X 90

503193372

$4.15

4080

Elastic Flange Nut M8

233281466

$0.96

4090

Axle Bar

503192555

$11.06

4100

Washer

503192494

$3.01

4110

Flat Washer 8 mm

234082410

$1.27

4120

Hex. Screw M8 X 55

207085556

$1.60

4130

Elastic Flange Nut M8

233281466

$0.96
