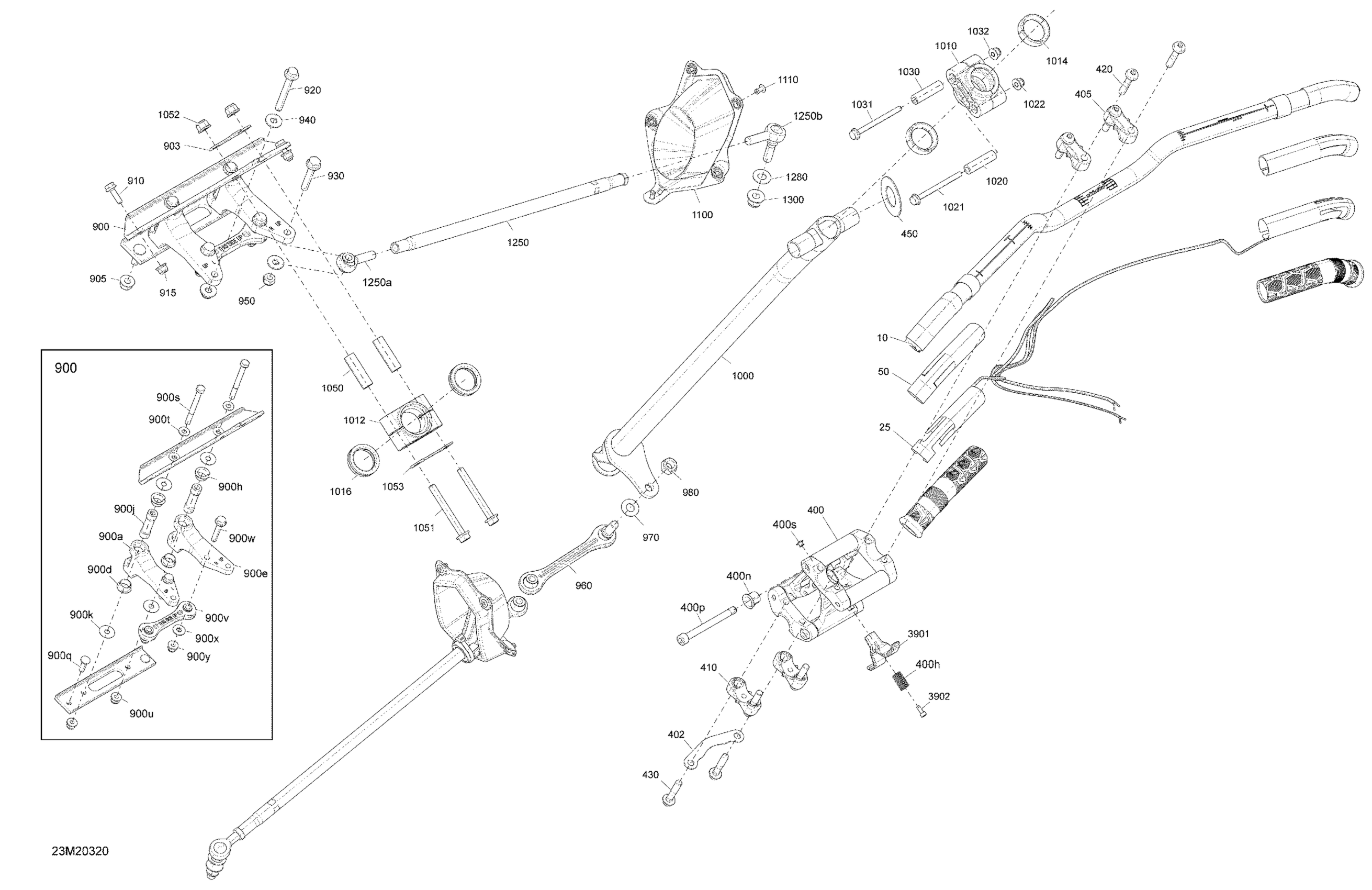

Ski-Doo RENEGADE 850 E-TEC - XRS rMotion X - 2020 Steering - System Diagram

#

Description
Price

10

Aluminum Handle Bar

506152825

$76.09

20

Grip 148mm

506152560

$15.64

25

Heated Film

506152856

$44.75

50

Thermal Insulation

506153176

$5.54

400

Handlebar Adjustable Riser Block | Includes 400 to 400q

506153192

$152.21

400h

Spring

506152820

$7.57

400n

Cushion

506152520

$12.00

400p

Socket Head Screw M8 X 85

205588554

$0.96

400s

Pop Rivet 3/16"

390402200

$0.30

402

Steering Stopper

506153028

$5.45

405

Steering Support

506152894

$12.10

410

Steering Support

506152894

$12.10

420

Button Head Torx Screw M8 X 38

250000904

$2.00

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

450

Washer

506152992

$1.03

900

Steering Linkage Ass'y | Includes 900 to 900p

506152917

$216.39

900a

LH Swivel Arm | Includes 900a to 900a.b

506152788

$38.78

900d

Bushing

503194671

$5.54

900e

RH Swivel Arm | Includes 900b to 900b2

506152790

$38.78

900h

Bushing

503194671

$5.54

900j

Swivel Pivot

506152792

$26.84

900k

Washer

503191800

$2.00

900q

Clinch Stud

250300038

$3.88

900s

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

900t

Washer

503192494

$3.01

900u

Elastic Flange Nut M8

233281466

$0.96

900v

Ball Joint

506152755

$47.73

900w

Hex. Flange Screw M6 X 45

250001028

$1.22

900x

Washer

506151245

$0.88

900y

Elastic Flange Nut M8

233281466

$0.96

903

Steering Stopper

506153157

$5.45

905

Hex. Elastic Flange Nut M8

233281416

$1.43

910

Hex. Flange Screw M6 X 20

207662044

$1.91

915

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

920

Hex. Flange Screw, M8 X 65

207686544

$11.18

930

Hex. Flange Screw M8 X 45

207684544

$3.57

940

Washer

506151245

$0.88

950

Hex. Elastic Stop Nut M8

232581414

$0.54

960

Ball Joint

506152753

$50.72

970

Washer

506152582

$4.28

980

Elastic Stop Nut M10

232500416

$1.79

1000

Main Tube

506153026

$173.85

1010

Upper Half Housing

506152219

$1.63

1012

Lower Half Housing

506153048

$5.40

1014

Upper Vibration Ring

506152292

$0.70

1016

Lower Vibration Ring

506152518

$4.39

1020

Housing Bushing

506152297

$9.93

1021

Hex. Flange Screw M6 x 75

250001114

$4.15

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1030

Housing Bushing

506152297

$9.93

1031

Hex. Flange Screw M6 x 75

250001114

$4.15

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1050

Housing Bushing

506152937

$9.93

1051

Hex. Flange Screw M8 X 70

207687044

$7.01

1052

Hex. Elastic Flange Nut M8

233281416

$1.43

1053

Stopper Plate

506152938

$9.93

1100

Cap

506153294

$24.60

1110

Pop Rivet 3/16"

293150008

$0.46

1250

Rod Ass'y | Includes 1250 to 1250c

506153056

$74.60

1250a

LH Threaded Ball Joint

506152344

$38.78

1250b

RH Threaded Ball Joint

506152684

$41.01

1280

Washer

506152582

$4.28

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

3901

Handle

506152821

$3.01

3902

Socket Head Screw M4X 10

205041060

$2.00
