07- Body - Front Section

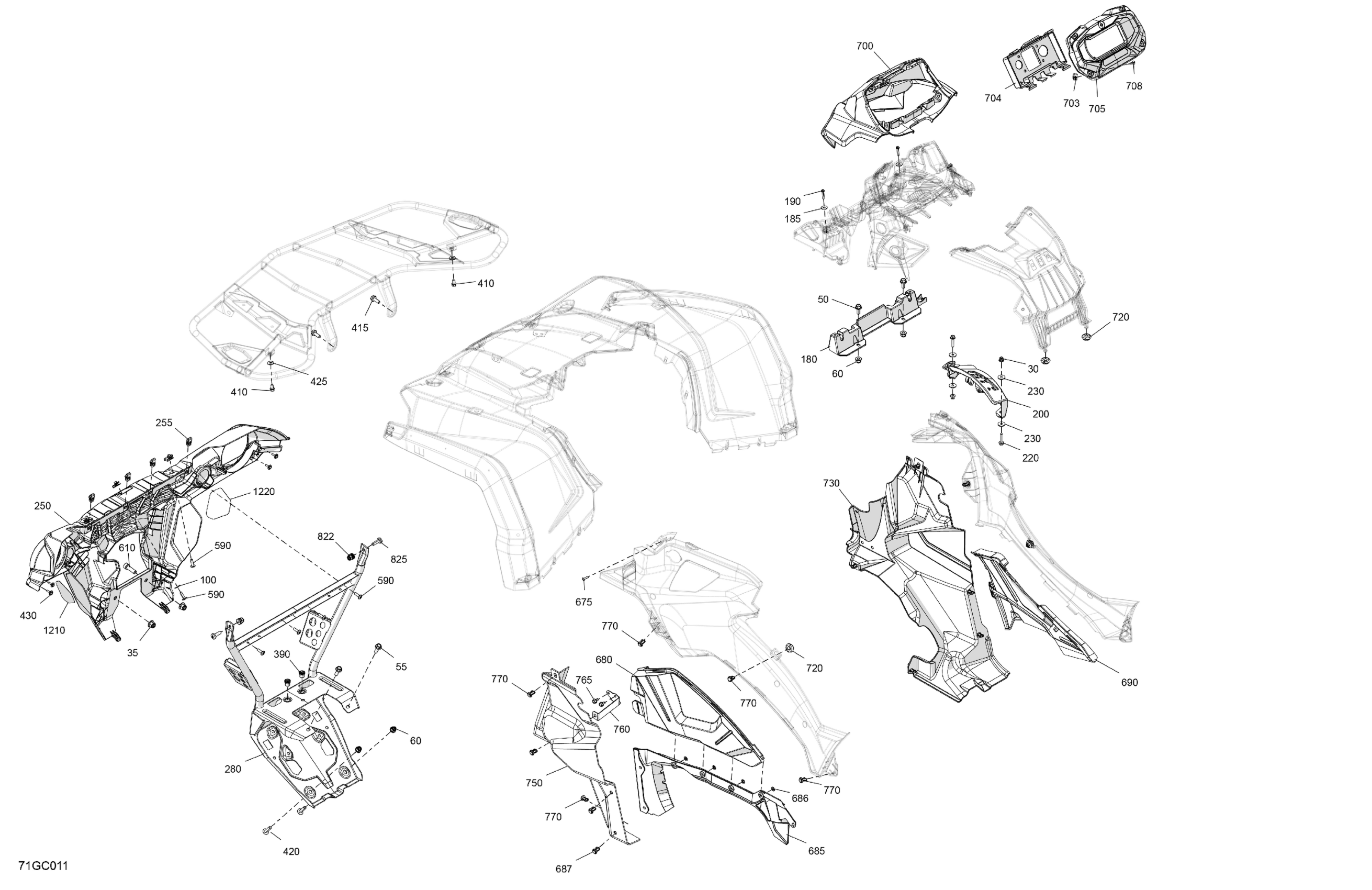

Can-Am 014 - Outlander MAX 570 EFI - XT - (2ZPA-2ZPB) North America, 2023 07- Body - Front Section Diagram
#
30
Flange Elastic Nut M6
233261434
Unavailable
35
Hex. Flange Elastic Nut M10
233201434
Unavailable
50
Hex. Flange Screw M8 X 20
207682044
Unavailable
55
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
60
Hex. Flange Elastic Nut M8
233281434
Unavailable
100
Flat Washer 6 mm
234062410
Unavailable
180
Console Support Insert
705010406
Unavailable
185
Flat Washer M6, Stainless
234062600
Unavailable
190
Hex. Flange Screw K50 X 2.24 X 25
241152540
Unavailable
200
Shifter Gate Kit | Engine 570 Except Europe, T3
715003977
Unavailable
220
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
230
Flat Washer
224061201
Unavailable
250
Front Facia | Model-North America, International
705009334
Unavailable
255
Panel Nut M6 X 1.0
250100198
Unavailable
280
Front Frame
705017337
Unavailable
390
Insert Half Hex Body M8 x 1.25
293450307
Unavailable
410
Hex. Flange Screw M6 X 12
210261250
Unavailable
415
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
420
Torx Screw M8 X 30
250000886
Unavailable
425
Stainless Steel Flat Washer
234062670
Unavailable
430
Screw M4 X 16
250000725
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
610
Socket Screw M10 x 30 | XT
205003044
Unavailable
675
Phillips Screw K40 X 16
250000723
Unavailable
680
Deflector Body Panel Kit
715007294
Unavailable
685
Deflector Body Panel
705014061
Unavailable
686
Push Nut
732610072
Unavailable
687
Tuflok Plastic Rivet
293150230
Unavailable
690
Engine Cover
705003444
Unavailable
700
Gauge Support
705013984
Unavailable
703
Extruded Panel Nut M4 X 0.7
250100143
Unavailable
704
Interior Gauge Support
705015548
Unavailable
705
Gauge Trim
705015547
Unavailable
708
Torx Head Screw M4 X 16
250000797
Unavailable
720
Grommet
705003264
Unavailable
730
RH Front Wheel Arch Protector
705017023
Unavailable
750
LH Front Wheel Arch Protector
705016486
Unavailable
760
LH Inner Fender Bracket
705007140
Unavailable
765
Hex. Flange Screw M6 X 10
210261040
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
822
Elastic Flange Nut M8
233281464
Unavailable
825
Pan Torx Screw M8 X 25
250000898
Unavailable
1210
LH Side Front Reflector | Model-North America, International
704903972
Unavailable
1220
RH Side Front Reflector | Model-North America, International
704903973
Unavailable
