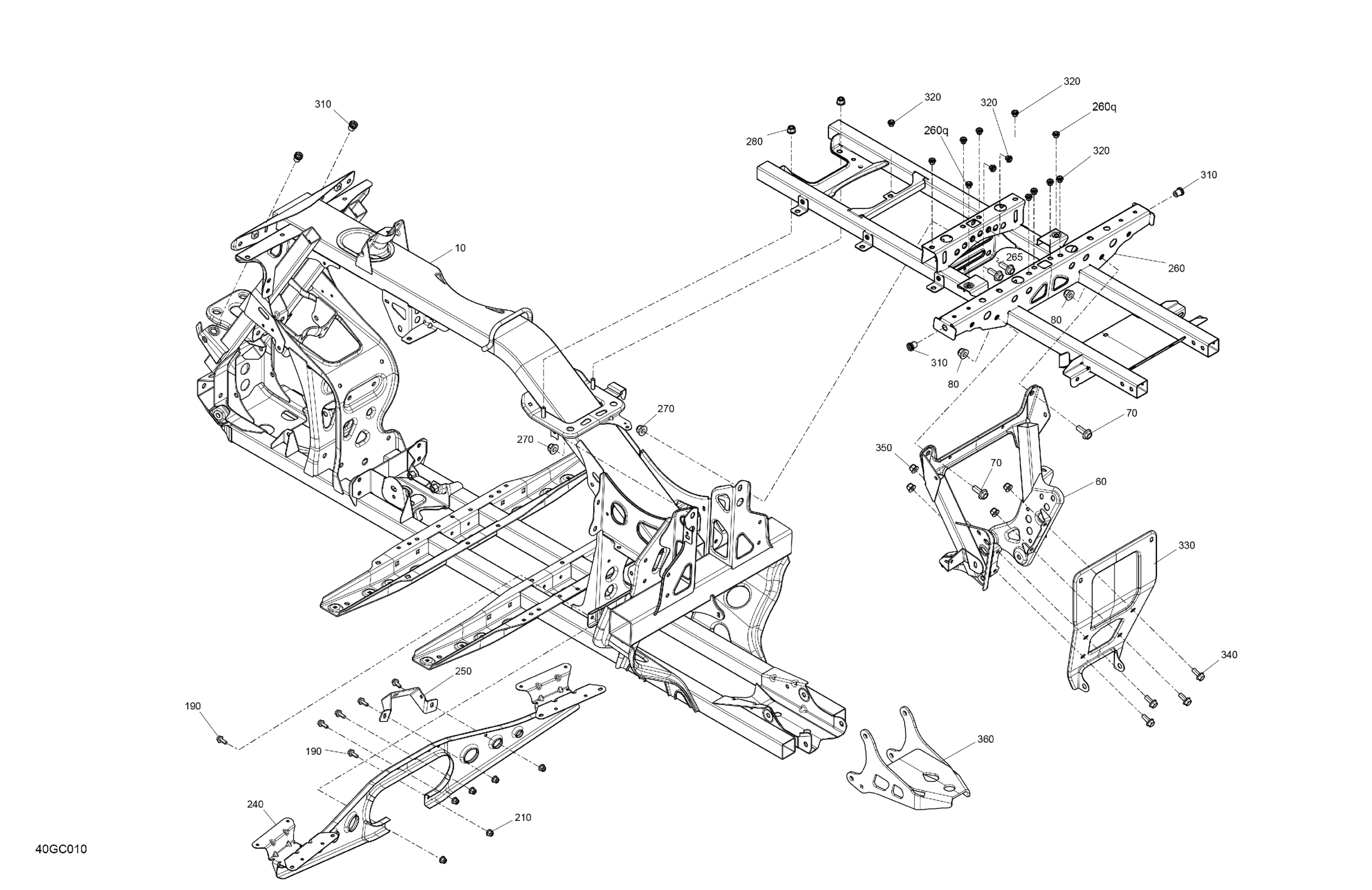

Can-Am Outlander MAX 570 EFI - XT - (2ZPA-2ZPB) 2023 Frame - System Diagram

#

Description
Price

10

Chassis

705210816

$1,049.99

60

Rear Pillar

705210818

$69.99

70

Hex. Flange Screw M10 X 25

207602546

$2.11

80

Hex. Flange Elastic Nut M10

233201436

$2.11

190

Hex. Flange Screw M6 X 16

207661644

$0.74

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

240

Footrest Support

705210817

$76.99

250

Master Cylinder Bracket

705203874

$11.49

260

Chassis Extension

705210820

$124.99

260q

Insert Half Hex Body M6 x 1.0

250100199

$3.19

265

Hex. Flange Screw M10 X 25

207602546

$2.11

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Hex. Flange Elastic Nut M8

233281414

$1.47

310

Insert Half Hex Body M8 x 1.25

293450307

$2.69

320

Insert Half Hex Body M6 x 1.0

250100199

$3.19

330

Rear Support

705203541

$43.99

340

Hex. Flange Screw M8 X 20

207682046

$1.90

350

Hex. Elastic Flange Nut M8

233281416

$1.48

360

Black Trailer Hitch Kit

715005839

$117.49
