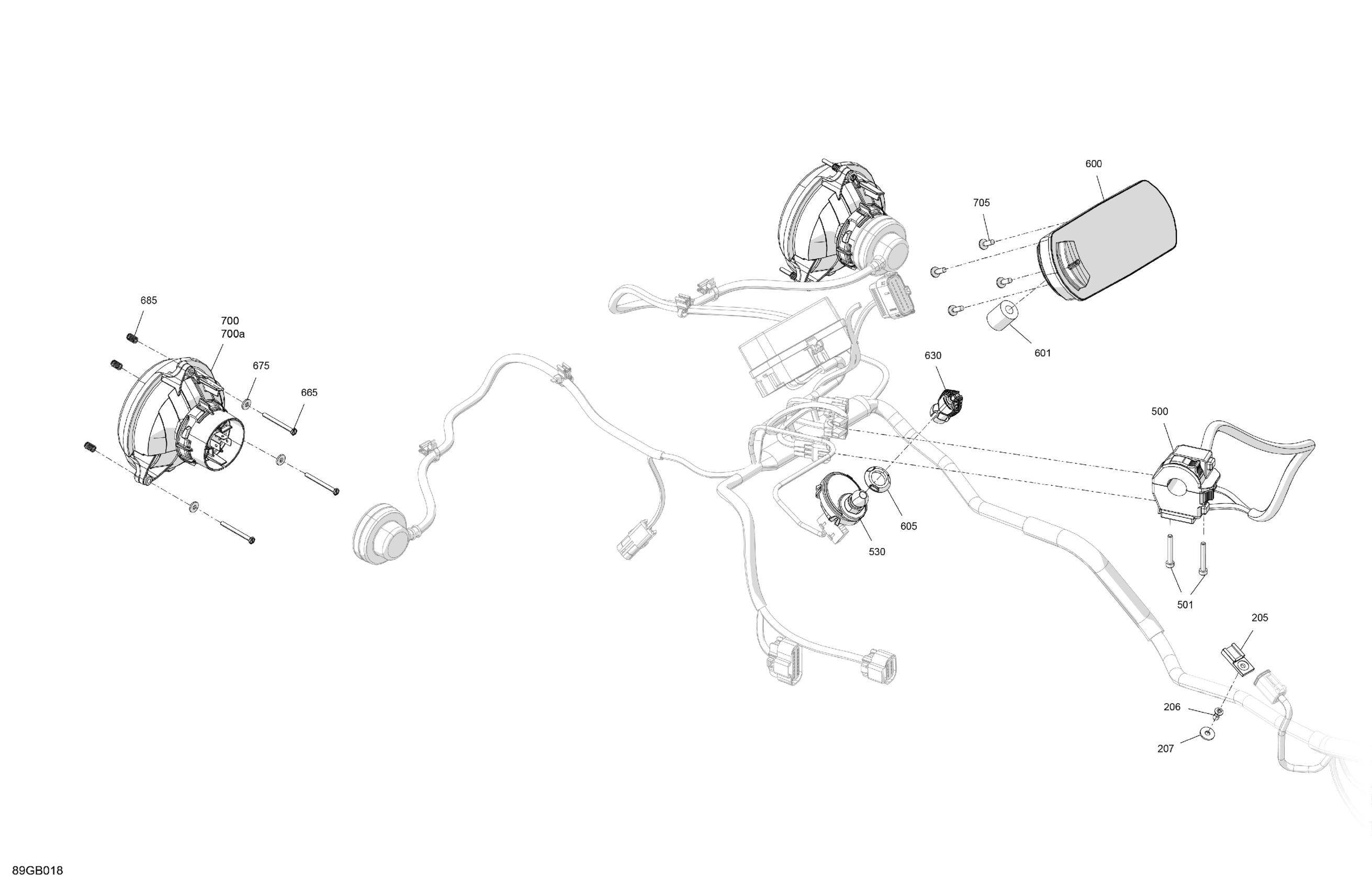

Can-Am Outlander MAX 570 EFI - DPS - (5NNA-5NNB) 2022 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

500

Multi Fonction Control | Package STD

710006229

$67.99

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

600

Multifunction Gauge Compact Mono

710008108

$409.99

601

Ferrite

415130224

$15.89

605

Specialized Nut

278004274

$3.28

630

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

665

Hex. Screw K40 X 45

250000718

$2.11

675

Flat Washer

517225900

$0.18

685

Spring

517168600

$7.39

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

705

Torx Screw K50 X 16

250000720

$1.69
