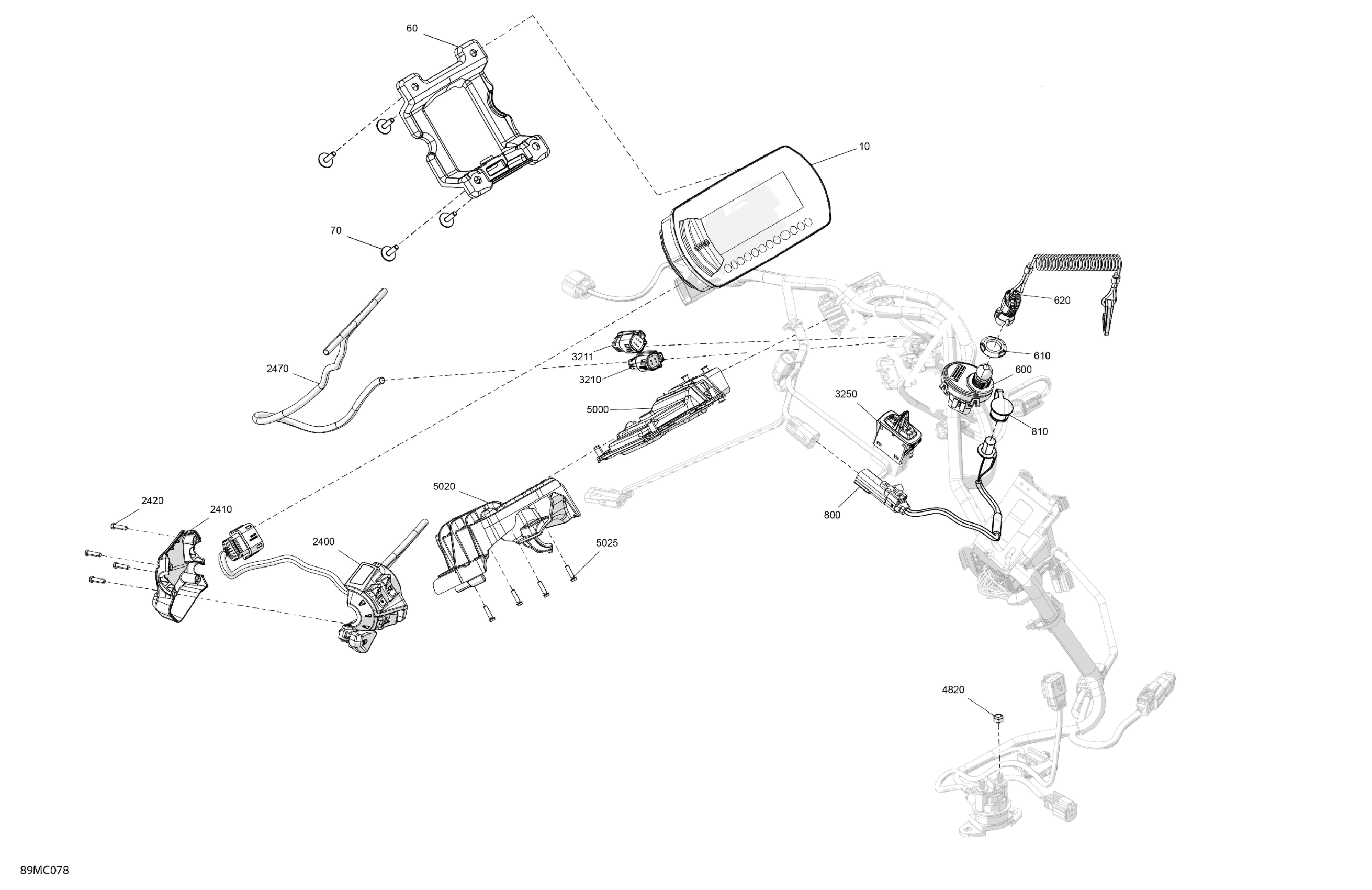

Ski-Doo EXPEDITION LE 900 ACE TURBO - 20 INCH - (ACPD-E-F) - 2023 Electric - Upper Section Diagram

Description

Price

2 Button Multifunction Gauge Full Size Color

515178226

$541.01

Housing

515178450

$5.06

Screw M4 X 16

250000725

$3.30

600

Ignition Switch

710006855

$75.34

610

Specialized Nut

278004274

$3.12

620

Grey, Ski-Doo DESS Key

515179475

$62.66

800

Heated Visor Wiring Harness

515178645

$35.04

810

Cap

572103300

$9.36

2400

LH Switch Housing

515178102

$258.18

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

3210

4 Circuits Female Housing

515178177

$11.54

3211

Coil Connector

515178202

$12.49

3250

Rocket Switch

515178501

$18.63

4820

Elastic Stop Nut M6

232561434

$1.78

5000

Vehicle Control Unit

420464172

$611.16

5020

Module Support

512061397

$14.10

5025

Hex. Flange Screw K40 X 16

241141660

$1.43
