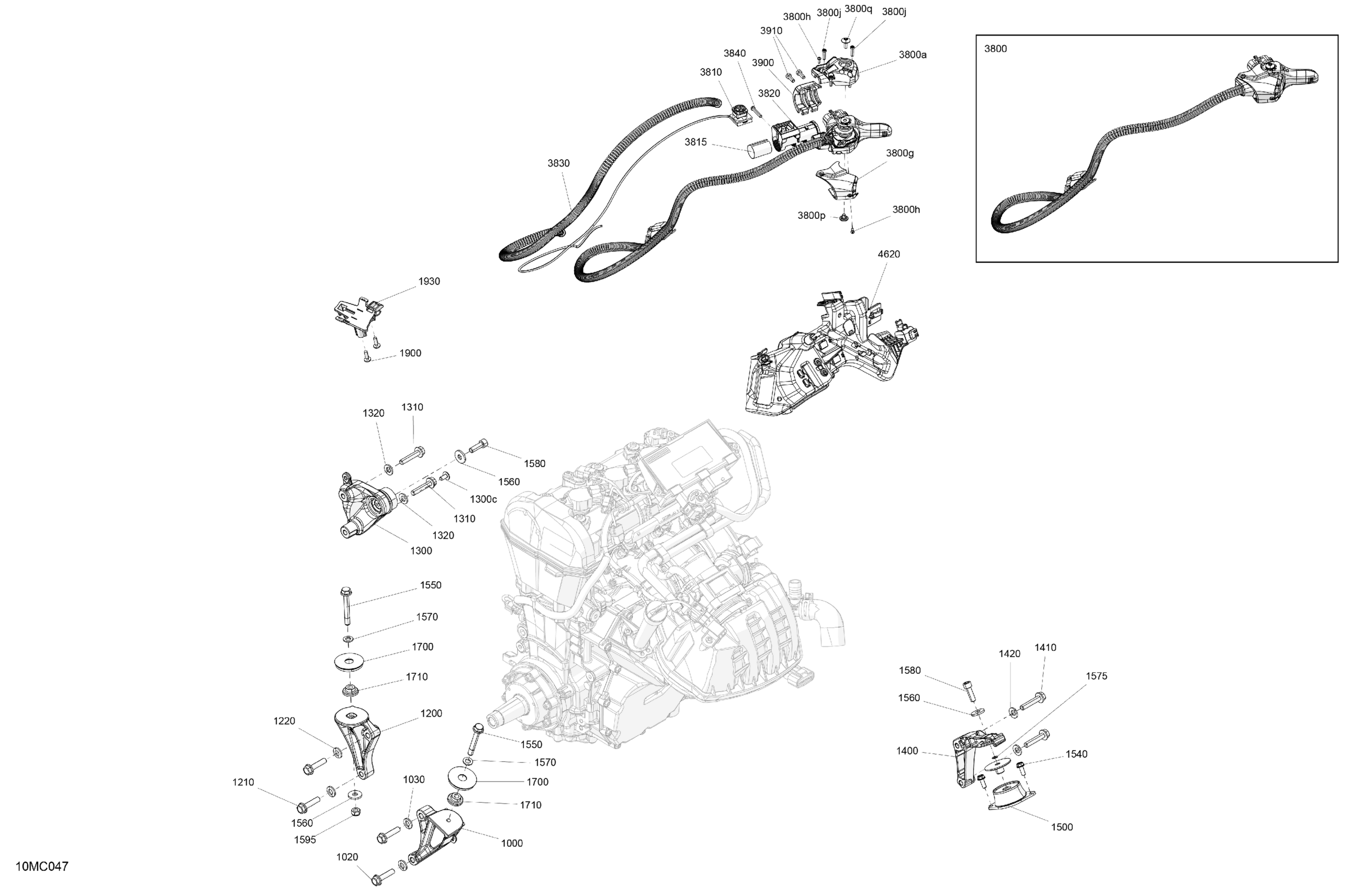

Ski-Doo EXPEDITION LE 900 ACE TURBO - 20 INCH - (ACPD-E-F) - 2023 Engine - System Diagram

Description

Price

1000

Rear PTO Support

512061220

$20.99

1020

Hex. Flange Screw M8 X 35

250000986

$2.11

1030

Conical Spring Washer M8

250200146

$1.01

1200

Front PTO Support

512061193

$20.99

1210

Hex. Flange Screw M8 X 35

250000986

$2.11

1220

Conical Spring Washer M8

250200146

$1.01

1300

Engine Support Ass'y | Includes 1300 to 1300c

512061519

$104.99

1300c

Torx Truss Screw M6 X 12

250000767

$2.00

1310

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.46

1320

Conical Spring Washer M8

250200146

$1.01

1400

Rear Support, Mag

512061194

$21.99

1410

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1500

Rubber Mount

512061514

$73.99

1540

Hex. Flange Screw M6 X 16

250001062

$1.57

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

1560

Yellow, Washer

503183200

$3.19

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1575

O-Ring

293300123

$1.03

1580

Socket Head Screw M8 X 25

205082544

$1.15

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1700

Engine Stopper

512061536

$21.99

1710

Spacer

512060285

$19.99

1900

Torx Screw K50 X 16

250000720

$1.69

1930

Support Solenoid

512061327

$5.39

3800

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

3800a

Handle Ass'y kit

415130364

$99.99

3800g

Cap

512060862

$13.49

3800h

Torx Screw M2.9 x 9.5

250000623

$3.17

3800j

Torx Screw

250000671

$1.01

3800p

Screw

512060961

$11.60

3800q

Torx Truss Head Screw W Nylon M5X14

250001059

$2.11

3810

Emergency Stop Switch

515177931

$76.49

3815

Protector

512061214

$2.11

3820

Switch Support

512061453

$9.28

3830

Sheath Corrugated 9 MM ID

515178885

$1.47

3840

Torx Screw #8-18

250000263

$1.04

3900

Front Housing

512060987

$8.57

3910

Torx Screw M5 X 14

250000632

$7.51

4620

Multi Purpose Support

512061395

$14.30
