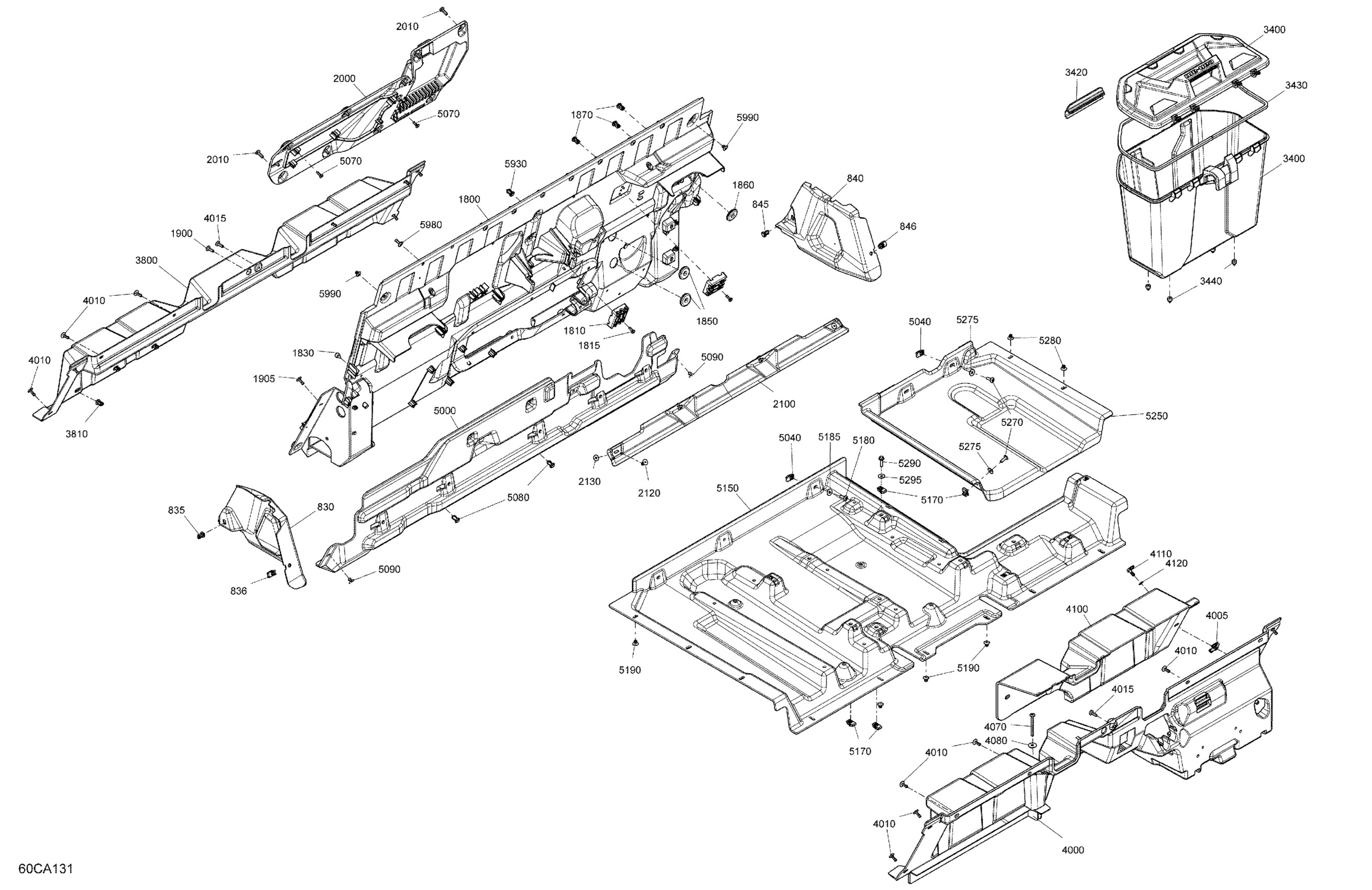

Can-Am Defender PRO HD10 - Lone Star - 2021 Cab Interior - Back Wall Diagram

#

Description
Price

830

LH Lower Cover

707900802

$73.85

835

Tuflok Plastic Rivet

293150230

$1.39

836

Panel Nut M6 X 1.0

250100198

$1.99

840

RH Lower Cover

707900803

$73.85

845

Tuflok Plastic Rivet

293150230

$1.39

846

Panel Nut M6 X 1.0

250100198

$1.99

1800

Rear Upper Cab Panel

707900715

$374.60

1810

Hose Support

707900788

$0.82

1815

Torx Screw K50 X 16

250000720

$1.60

1830

Rubber Bumper

293830005

$6.12

1850

Grommet

293720119

$4.04

1860

Grommet

293720119

$4.04

1870

Tuflok Plastic Rivet

293150230

$1.39

1900

Torx Screw M6 X 20

250000722

$1.54

1905

Pop Rivet 3/16"

293150100

$1.04

2000

Rear Access Cover

707900742

$75.34

2010

Torx Screw M6 X 20

250000712

$2.00

2100

Rear Deflector

707900795

$77.58

2120

Pop Rivet 3/16"

293150100

$1.04

2130

Washer M5

250200025

$0.70

3400

Storage Box

715003314

$101.17

3420

Clip | Outlander Max

269501945

$14.90

3430

Neoprene Seal

293250453

$17.13

3440

Rubber Bumper

293830005

$6.12

3800

Rear Panel

707900722

$182.81

3810

Tuflok Plastic Rivet

293150230

$1.39

4000

Rear Lower Cab Panel

707901074

$196.99

4005

Quarter Turn Nut

705002651

$4.40

4010

Pop Rivet 3/16"

293150100

$1.04

4015

Torx Screw M6 X 20

250000722

$1.54

4070

Torx Screw M6 X 70

250000954

$1.79

4080

Flat Washer M6.6 X 22

250200162

$2.19

4100

Battery Cover

707900743

$81.31

4110

Quarter Turn Screw

705002649

$14.43

4120

Washer

708400286

$3.90

5000

Front Upper Box Panel

707900800

$196.99

5040

Panel Nut M6 X 1.0

250100198

$1.99

5070

Torx Screw K50 X 16

250000720

$1.60

5080

Tuflok Plastic Rivet

293150230

$1.39

5090

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

5150

LH Upper Box Panel

707901044

$191.76

5170

Panel Nut M6 X 1.0

250100198

$1.99

5180

Torx Screw M6 X 20

250000722

$1.54

5185

Stainless Steel Flat Washer

234062670

$2.00

5190

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

5250

RH Upper Box Panel

707900721

$196.99

5270

Torx Screw M6 X 20

250000722

$1.54

5275

Stainless Steel Flat Washer

234062670

$2.00

5280

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

5290

Hex. Flange Screw M6 X 25

207562544

$1.60

5295

Stainless Steel Flat Washer

234062670

$2.00

5930

Tuflok Plastic Rivet

293150230

$1.39

5980

Pop Rivet 3/16"

293150100

$1.04

5990

Pop Rivet 3/16"

293150103

$0.52
