Description

Price

10

Seat Member | Includes 10 to 10a8

703501076

$139.99

20

Hex. Flange Screw M8 X 25

207682534

$2.11

30

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Operator Seat Member | Includes 50 to 50a7

708001723

$329.99

50a

Pop Rivet 3/16"

390402200

$0.35

60

Mid Seat Member

708002815

$204.99

70

Passenger Seat Member

708002821

$204.99

90

Seat Base Ass'y

708003242

$249.99

100

Seat Base Ass'y

708003244

$249.99

110

Central Cushion Ass'y

708002793

$249.99

120

Backrest Ass'y

708003255

$349.99

130

Backrest Ass'y | Includes 130 to 130d

708003254

$349.99

130a

Rubber Bumper

293830005

$8.09

140

Backrest Ass'y

708003160

$349.99

150

Seat Base Pivot

708002581

$9.59

160

Hex. Flange Screw M8 X 45

207684544

$3.80

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Bushing

708001903

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.11

210

Hex. Screw M6 X 45

207064544

$2.11

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Hex. Screw M8 X 20

207182044

$0.74

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.29

270

Latch

269501487

$16.99

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.09

300

LH Rail

708000848

$53.99

310

RH Rail | Package XT, Cab

708002001

$35.99

320

Seat Stopper

708003672

$2.59

330

Pop Rivet 3/16"

390402200

$0.35

500a

Headrest

708002853

$58.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

LH Safety Belt

708003082

$243.49

575

RH Safety Belt

708003200

$227.99

580

Central Safety Belt

708003688

$243.49

605

Hex. Screw M12 X 80

207028046

$3.91

610

Elastic Flange Nut M12

233221416

$2.85

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

625

Flat Washer M12

250200102

$2.11

630

Lock Nut Nylon 7/16

250100183

$2.00

6110

Torx Screw Truss Head K50X20 T20

250000760

$2.11

6120

Torx Screw M6 X 20

250000722

$1.68

6130

Flat Washer M6.6 X 22

250200162

$2.32

6140

Elastic Flange Nut M12

233221416

$2.85

6150

Lock Nut Nylon 7/16

250100183

$2.00

6155

Safety Belt screw

708002504

$5.29

6160

Safety Belt Screw

708000890

$3.79

6170

Position Washer

708000891

$1.29

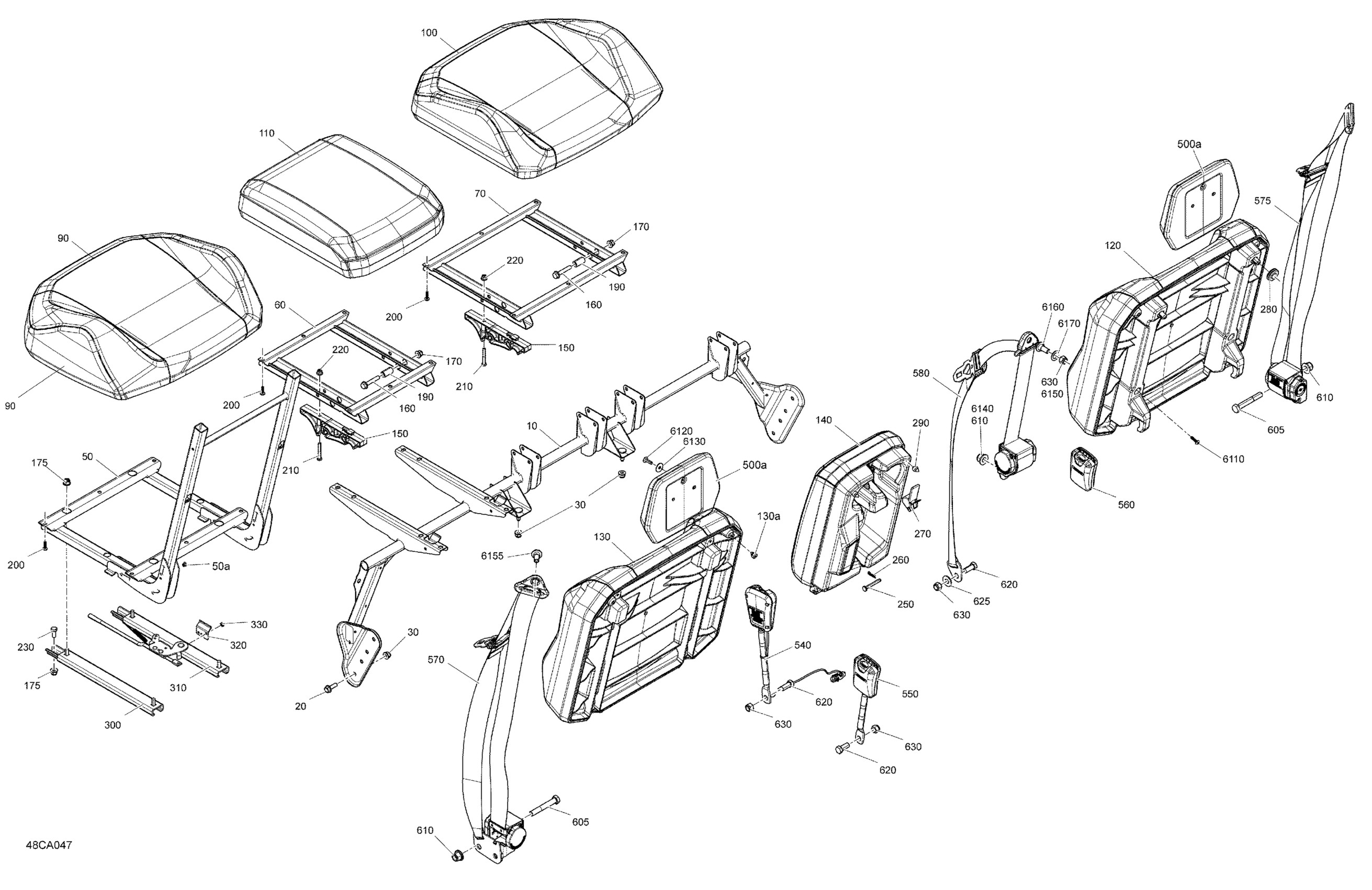

Can-Am 014 - Defender PRO HD10 - Lone Star - North America, 2021 07- Body - Seat Diagram

Seat Member | Includes 10 to 10a8

Hex. Flange Screw M8 X 25

Hex. Flange Elastic Nut M8

Operator Seat Member | Includes 50 to 50a7

Pop Rivet 3/16"

Mid Seat Member

Passenger Seat Member

Seat Base Ass'y

Seat Base Ass'y

Central Cushion Ass'y

Backrest Ass'y

Backrest Ass'y | Includes 130 to 130d

Rubber Bumper

Backrest Ass'y

Seat Base Pivot

Hex. Flange Screw M8 X 45

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M8

Bushing

Torx Screw Truss Head K50X20 T20

Hex. Screw M6 X 45

Hex. Flange Elastic Nut M6 x 1.0

Hex. Screw M8 X 20

Pin

Hairpin Cotter

Latch

Grommet

Rubber Bumper

LH Rail

RH Rail | Package XT, Cab

Seat Stopper

Pop Rivet 3/16"

Headrest

Driver Buckle

Middle Buckle

Passenger Buckle

LH Safety Belt

RH Safety Belt

Central Safety Belt

Hex. Screw M12 X 80

Elastic Flange Nut M12

Hex. Cap Screw 7/16'' X 1'' | Europe

Flat Washer M12

Lock Nut Nylon 7/16

Torx Screw Truss Head K50X20 T20

Torx Screw M6 X 20

Flat Washer M6.6 X 22

Elastic Flange Nut M12

Lock Nut Nylon 7/16

Safety Belt screw

Safety Belt Screw

Position Washer
