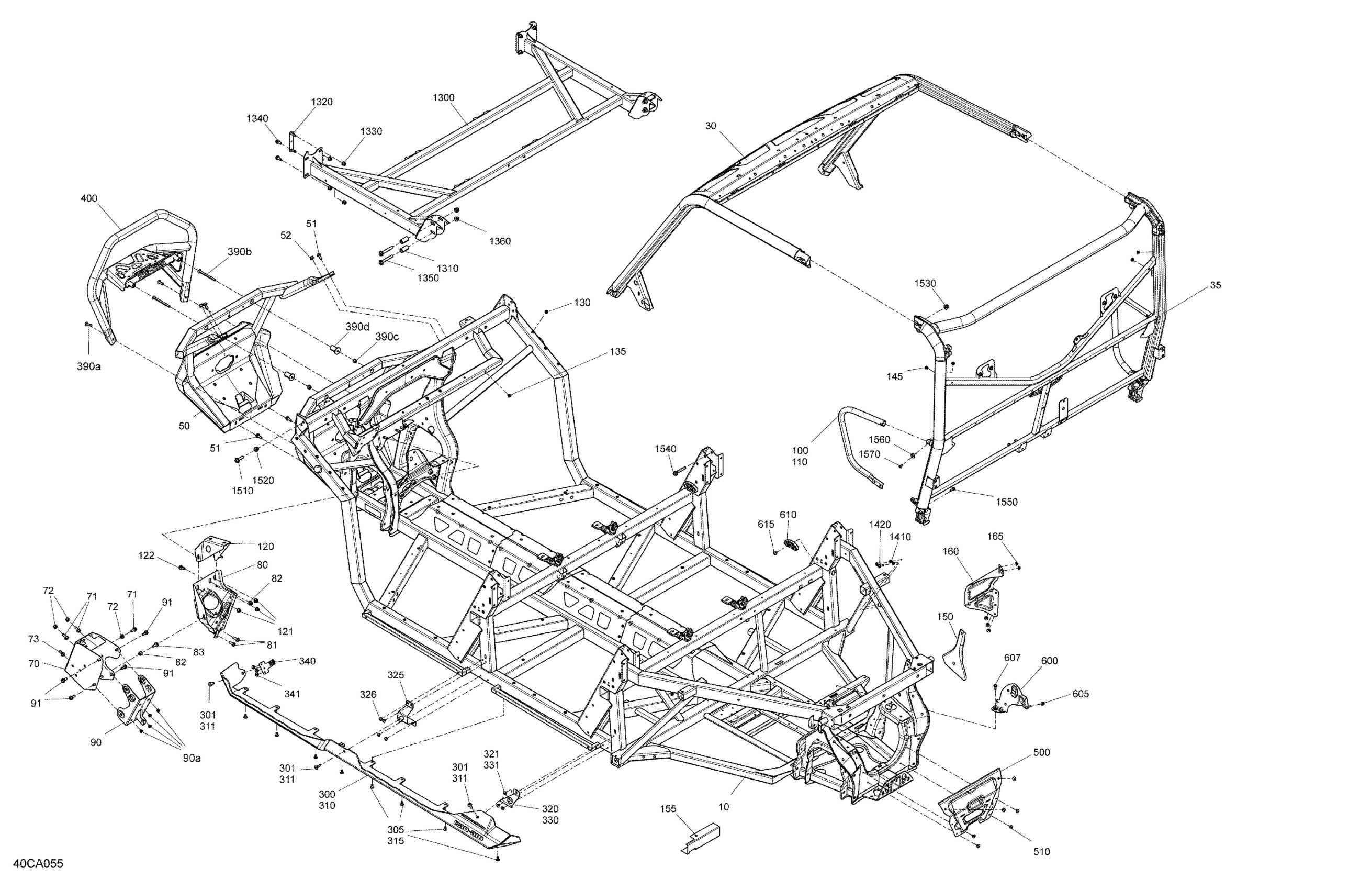

Can-Am Defender PRO HD10 - Lone Star - 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009071

Unavailable

30

Deep Black, Front Cage Service Kit

715008354

$649.99

35

Rear Cage Profile Ass'y

715007384

$649.99

50

Deep Black, Front Bumper

705207588

$519.97

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

$1.25

70

Module Support

705209388

$52.28

71

Hex. Flange Screw M8 X 20

207682044

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Power Steering Support

705208741

$65.35

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Elastic Flange Nut M8

233281416

$1.25

83

Hex. Flange Screw M8 X 20

207682044

$0.92

90

Steering Column Support | Includes 90 to 90d

705209190

$34.58

90a

Insert Half Hex Body M6 x 1.0

250100199

$2.54

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Deep Black, LH Protector Tube

705204594

$46.12

110

Deep Black, RH Protector Tube

705204592

$46.12

120

Support

705208742

$28.43

121

Hex. Elastic Flange Nut M8

233281416

$1.25

122

Hex. Flange Screw M8 X 20

207682044

$0.92

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Insert Half Hex Body M6 x 1.0

250100199

$2.54

145

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Heat Shield

705014849

$2.75

155

Heat Shield

705015496

$2.75

160

Heat Shield

707002709

$49.97

165

Pop Rivet 3/16"

293150103

$0.54

300

Deep Black, LH Guard Panel

705208715

$289.97

301

Torx Truss M8 X 25

250000874

$1.74

305

Pop Rivet 3/16”

293150108

$1.23

310

Deep Black, RH Guard Panel

705208716

$289.97

311

Torx Truss M8 X 25

250000874

$1.74

315

Pop Rivet 3/16”

293150108

$1.23

320

LH Rock Slider Support

705206342

$46.12

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

325

Support Guard

705207220

$19.20

326

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

330

RH Rock Slider Support

705206343

$41.51

331

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

340

Front Guard Support

705208661

$4.95

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

390a

Torx Screw M8 X 30

250000886

$1.74

390b

Torx Truss M/S M8 x X 100

250001106

$5.53

390c

Hex. Flange Elastic Nut M8

233281414

$1.14

390d

Spacer

705207754

$12.08

400

Deep Black, Front Bumper

715006143

$364.58

500

Rear Chassis Reinforcement

705207753

$31.51

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

600

Voltage Regulator Support

710007522

$16.12

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

610

Spacer

705208203

$17.66

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1300

Central Chassis Extension

705207484

$124.99

1310

Spacer

705207818

$13.49

1320

Support

705208025

$13.18

1330

Hex. Elastic Flange Nut M8

233281416

$1.25

1340

Hex. Flange Screw M8 X 20

207682046

$1.82

1350

Hex. Flange Screw M10 X 70

207607046

$2.91

1360

Hex. Flange Elastic Nut M10

233201436

$1.74

1400

Rear Solenoid Support

705015557

$49.97

1410

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1420

Hex Flange Screw M6 X 16

250000906

$4.39

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Hex. Flange Elastic Nut M10

233201436

$1.74

1530

Flange Elastic Nut M10

233201466

$2.63

1540

Hex. Flange Screw M10 X 6

207606046

$3.38

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1560

Offset Washer

705202223

$4.98

1570

Torx Truss M6X14

250000789

$4.41
