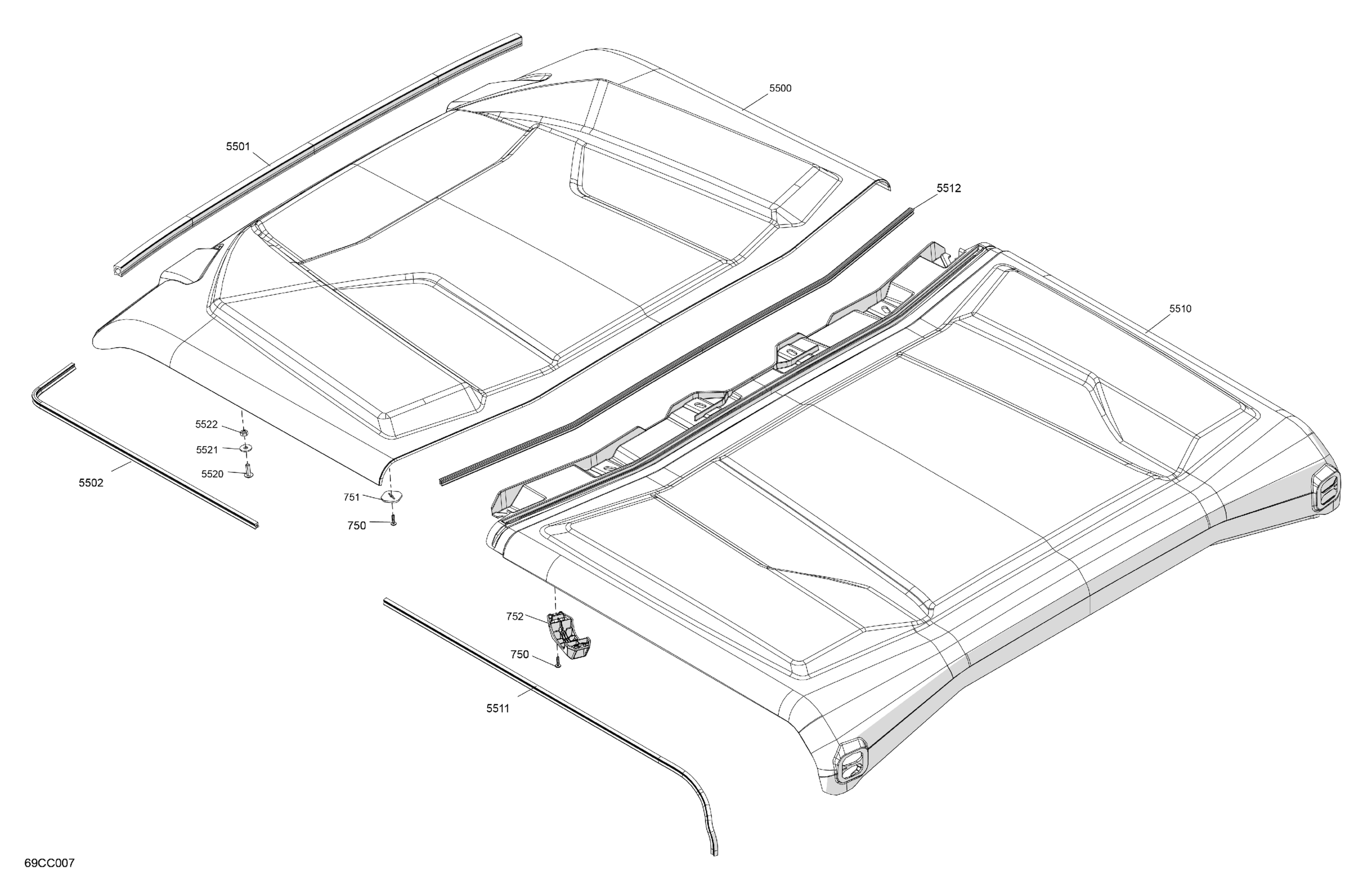

Can-Am Defender MAX HD9 - XT - 2023 Body - Roof Diagram

Description

Price

750

Torx Screw Truss Head K50X20 T20

250000760

$1.74

751

Support Plate

705003841

$0.91

752

Roof Anchor

705800131

$7.11

5500

Front Roof

705800066

$491.51

5501

Was 293250361 Gasket

219704379

$73.82

5502

Outer Seal

705800054

$36.89

5510

Rear Roof

705800067

$332.28

5511

Outer Seal

705800054

$36.89

5512

Outer Seal

705800054

$36.89

5520

Torx Truss M8 X 25

250000874

$1.74

5521

Flat Washer 8 mm

234082410

$1.11

5522

Hex. Nut M8

232081414

$0.60
