Description

Price

20

Braided Sleeve 60MM Long

515178492

$5.39

25

Turbocharger Ass'y

420893746

$1.00

30

Compressor Support

512061457

$49.99

35

Hex. Flange Screw M8 X 20

207682046

$1.90

80

Hex. Flange Screw M8 X 50

250001058

$10.48

90

Upper Stopper

512061328

$17.99

300

LH Side Member

512061447

$154.99

310

Upper CVT Cooling Duct

512061449

$14.49

315

Torx-truss M/s M6 X 10

250000995

$4.44

317

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

320

Lower CVT Cooling Duct

512061450

$14.49

325

Torx-truss M/s M6 X 10

250000995

$4.44

400

Not Available As Spare Parts

XXX

Unavailable

400a

Mounting Bracket

420912007

$20.99

400b

Servo Motor Ass'y

420889432

$329.99

400c

Hex. Flange Screw M6 X 12

420440149

$2.11

420

Circlip

293370122

$4.29

440

Hex. Flange Screw M5 X 10

207551044

$4.12

1000

LH Rear Engine Support Ass'y

512061634

$81.99

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1030

Conical Spring Washer M8

250200146

$1.01

1200

LH Front Engine Support Ass'y | Includes 1200 to 1200a

512061418

$78.99

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1220

Conical Spring Washer M8

250200146

$1.01

1300

RH Front Engine Support

512061439

$27.99

1305

Vibration Damper

512061454

$59.49

1310

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1320

Conical Spring Washer M8

250200146

$1.01

1330

Hex. Flange Screw M6 X 16

250001062

$1.57

1400

RH Rear Engine Support Ass'y

512061411

$20.99

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1500

Vibration Damper

512061454

$59.49

1540

Hex. Flange Screw M6 X 16

250001062

$1.57

1550

Hex. Flange Screw M8 X 55

207585544

$1.69

1560

Yellow, Washer

503183200

$3.19

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1580

Socket Head Screw M8 X 25

205082544

$1.15

1585

Yellow, Washer

503183200

$3.19

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1700

Engine Stopper

512061530

$21.99

2000

Primary Chamber Ass'y | Includes 2000 to 2000r

508001367

$219.99

2000f

Rubber

512061083

$8.89

2000g

Screw

420441840

$2.11

2000h

Norma Clamp

293650079

$11.60

2000p

Hex. Flange Screw M5 X 25

207652544

$0.50

2000q

Flange Elastic Nut M5

233251434

$2.00

2000r

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2005

Pressure Sensor And Air Temperature

515178563

$159.99

2020

Torx-Truss Pt K40 X 16

250000759

$2.11

2030

Norma Clamp

293650091

$11.12

2050

Rubber Cap

420201630

$4.44

2060

Airbox Support

512061274

$12.49

2070

Pop Rivet 3/16"

293150103

$0.55

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2090

Inlet Tube

512061570

$26.99

2100

Norma Clamp

293650077

$7.41

3600

Throttle Cable

512061326

$20.99

3690

Circlip

414274500

$0.90

3800

Upper Housing

512060859

$8.89

3810

Lower Housing

512060860

$17.53

3820

Heated Hand Lever Accelerator

512061544

$124.99

3840

Flange Screw M5x12

250000991

$7.51

4200

Ignition Coil

512061168

$132.49

4210

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

4220

Ignition Cable

512061166

$27.49

4240

Spark Plug Wire Holder

512061238

$4.44

4270

O-Ring

293300059

$7.51

5050

Clamp

512060993

$5.39

5300

Starter Grip

512060136

$14.83

5610

LH Acoustic Cover

512061513

$36.99

7900

Oil Tank

512061538

$38.99

8000

Oil Pump

519000332

$134.99

8010

Hose 7,94 mm ID

512061379

$1.46

8040

Hose

512061381

$2.49

8060

Oetiker Clamp

293650140

$2.69

8090

Protector Tube | Not shown

503195447

$13.49

8100

Protector Tube | Not shown

503195447

$13.49

8110

Protector Tube | Not shown

503195447

$13.49

8120

Torx Truss Screw M6 X 12

250000767

$2.00

8130

Torx-Truss Pt K40 X 16

250000759

$2.11

8140

Grommet

512061322

$8.79

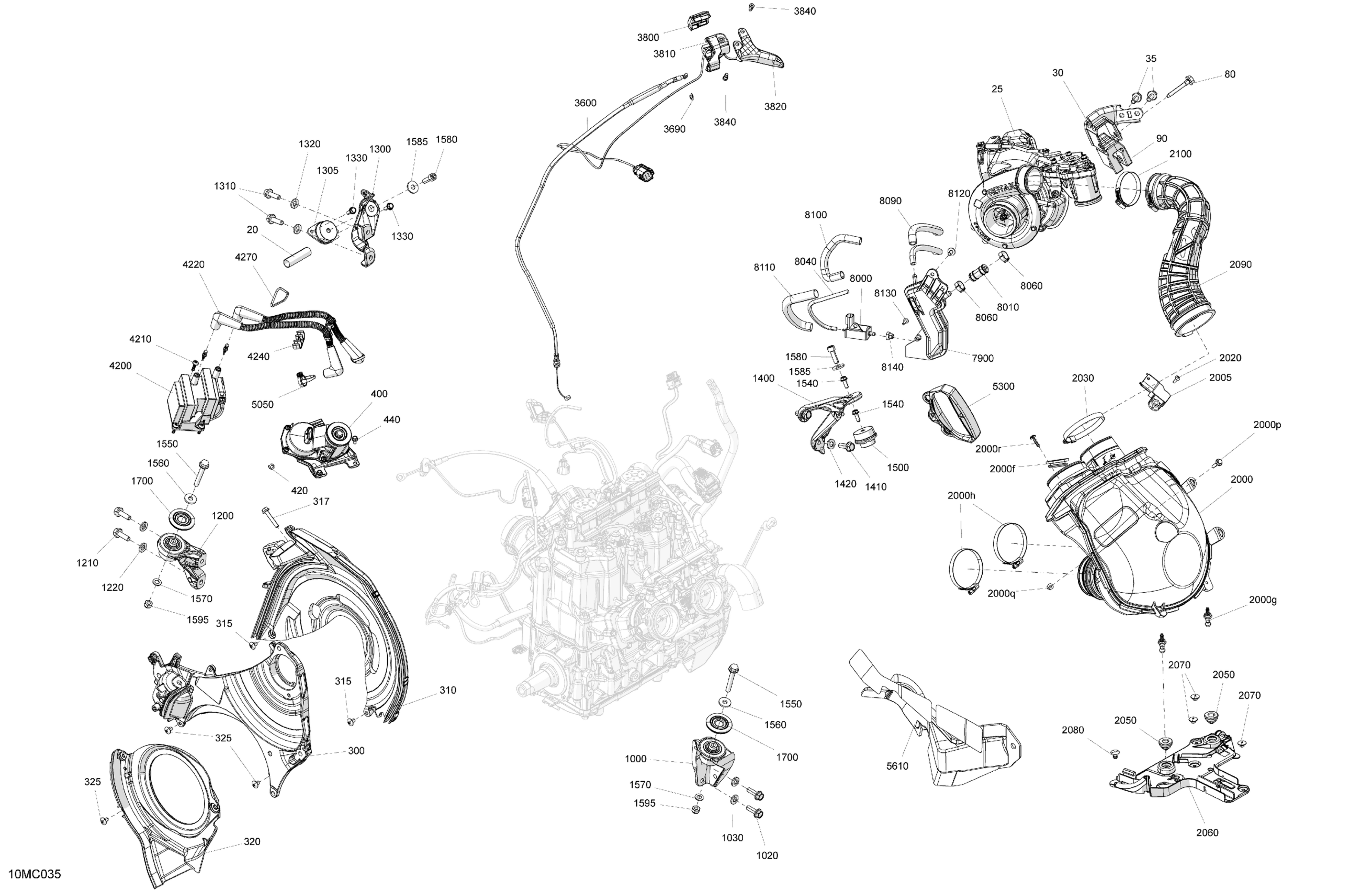

Ski-Doo 013 - SUMMIT 850 E-TEC - EXPERT - Package 165" (THPP) - North America, 2023 02- Engine - System Diagram

Braided Sleeve 60MM Long

Turbocharger Ass'y

Compressor Support

Hex. Flange Screw M8 X 20

Hex. Flange Screw M8 X 50

Upper Stopper

LH Side Member

Upper CVT Cooling Duct

Torx-truss M/s M6 X 10

Hex. Flange Screw S.Grip M6 X 35

Lower CVT Cooling Duct

Torx-truss M/s M6 X 10

Not Available As Spare Parts

Mounting Bracket

Servo Motor Ass'y

Hex. Flange Screw M6 X 12

Circlip

Hex. Flange Screw M5 X 10

LH Rear Engine Support Ass'y

Hex Flange Screw M8 X 25 S.Grip

Conical Spring Washer M8

LH Front Engine Support Ass'y | Includes 1200 to 1200a

Hex Flange Screw M8 X 25 S.Grip

Conical Spring Washer M8

RH Front Engine Support

Vibration Damper

Hex Flange Screw M8 X 25 S.Grip

Conical Spring Washer M8

Hex. Flange Screw M6 X 16

RH Rear Engine Support Ass'y

Hex Flange Screw M8 X 25 S.Grip

Conical Spring Washer M8

Vibration Damper

Hex. Flange Screw M6 X 16

Hex. Flange Screw M8 X 55

Yellow, Washer

Flat Washer With Teflon 8 mm

Socket Head Screw M8 X 25

Yellow, Washer

Hex. Elastic Stop Nut M8

Engine Stopper

Primary Chamber Ass'y | Includes 2000 to 2000r

Rubber

Screw

Norma Clamp

Hex. Flange Screw M5 X 25

Flange Elastic Nut M5

Torx Screw Truss Head K50X20 T20

Pressure Sensor And Air Temperature

Torx-Truss Pt K40 X 16

Norma Clamp

Rubber Cap

Airbox Support

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Inlet Tube

Norma Clamp

Throttle Cable

Circlip

Upper Housing

Lower Housing

Heated Hand Lever Accelerator

Flange Screw M5x12

Ignition Coil

Hex. Plastic Screw M4.8 X 16

Ignition Cable

Spark Plug Wire Holder

O-Ring

Clamp

Starter Grip

LH Acoustic Cover

Oil Tank

Oil Pump

Hose 7,94 mm ID

Hose

Oetiker Clamp

Protector Tube | Not shown

Protector Tube | Not shown

Protector Tube | Not shown
