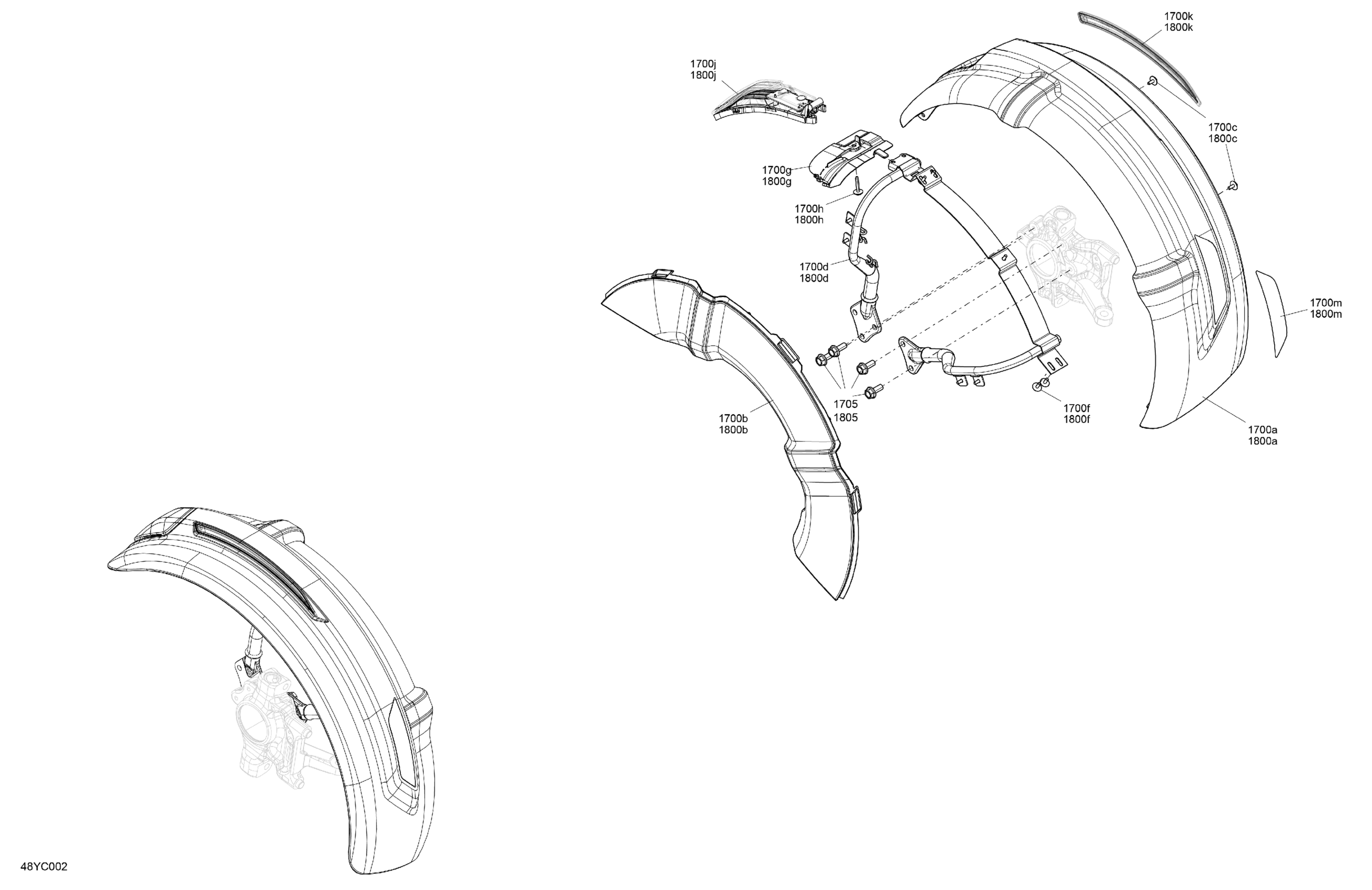

Can-Am RT LIMITED - Special Edition - Shadow Green, Europe, 2023 Body - Fender Kit Diagram

Description

Price

1700a

Shadow Green, LH Front Fender

705017580

$204.99

1700b

LH Inner Fender

705012975

$54.99

1700c

Plastite Screw M4 X 10

250000805

$2.11

1700d

LH Front Fender Support Ass'y

705013519

$88.99

1700f

Plastite Screw M4 X 10

250000805

$2.11

1700g

LH Light Protector

705013499

$2.39

1700h

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

1700j

LH Front Position Light

710007008

$119.99

1700k

Yellow, LH Reflector

705012404

$18.49

1700m

Red, Rear Reflector

705014736

$5.39

1705

Hexagonal Screw M8X25 Dog Point

250000773

$1.90

1800a

Shadow Green, RH Front Fender

705017581

$309.99

1800b

RH Inner Fender

705012867

$55.99

1800c

Plastite Screw M4 X 10

250000805

$2.11

1800d

RH Front Fender Support Ass'y

705012981

$88.99

1800f

Plastite Screw M4 X 10

250000805

$2.11

1800g

RH Light Protector

705013530

$2.39

1800h

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

1800j

RH Front Position Light

710007009

$119.99

1800k

Yellow, RH Reflector

705012405

$18.49

1800m

Red, Rear Reflector

705014736

$5.39

1805

Hexagonal Screw M8X25 Dog Point

250000773

$1.90
