08- Electric - Front Section

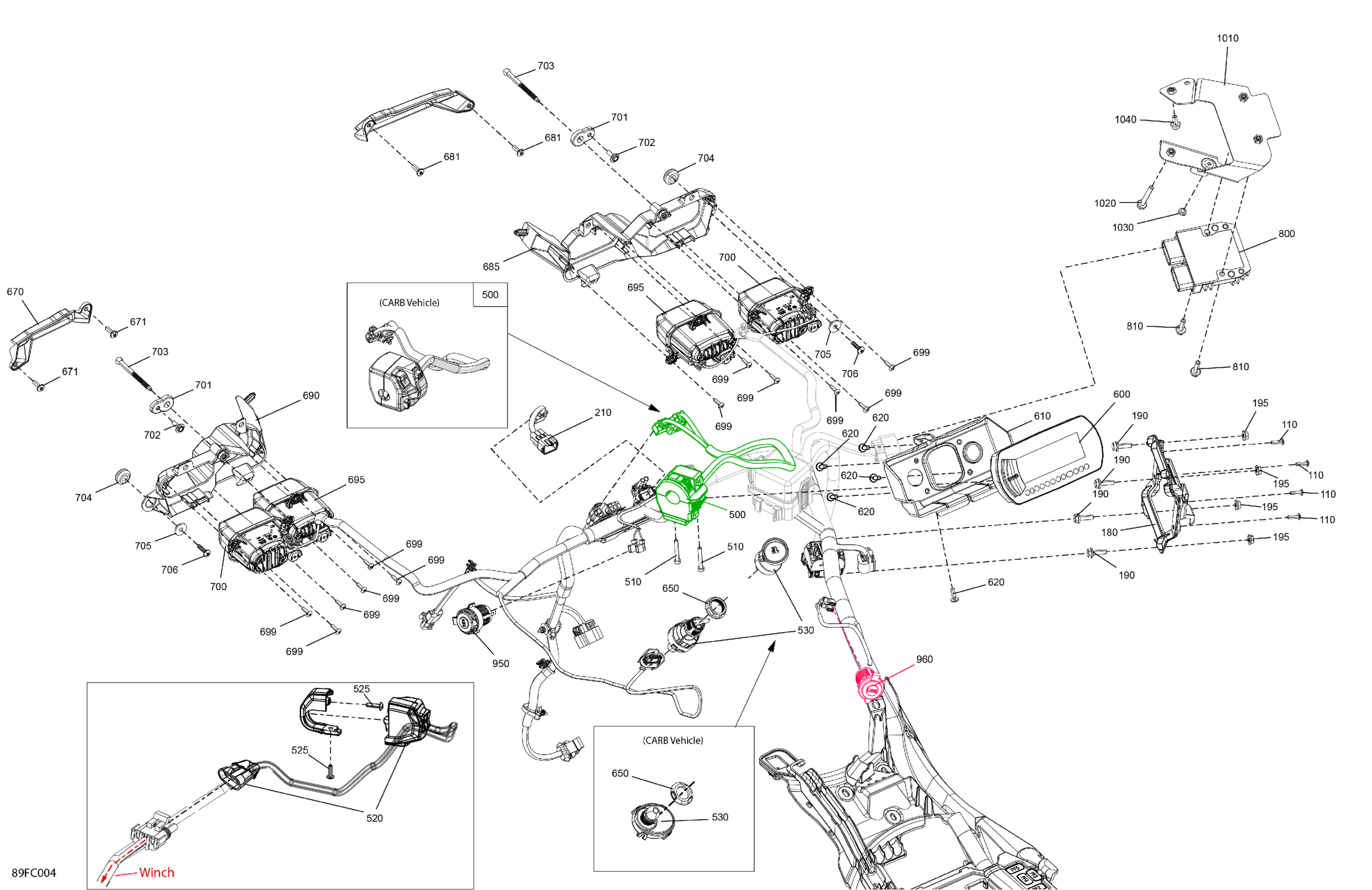

Can-Am 013 - Outlander MAX XT 700 - North America, 2023 08- Electric - Front Section Diagram
#
110
Torx-Truss Pt K40 X 16
250000759
Unavailable
180
Muffler Support
710006328
Unavailable
190
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
195
Hex. Flange Nut M6
233161414
Unavailable
210
Switch Wiring Harness
710009366
Unavailable
500
LH Front Switch Housing | CARB Vehicle
710007301
Unavailable
500
Multifunction Switch
710008837
Unavailable
510
Socket Head Screw M5 X 35
205053588
Unavailable
520
Winch Switch | EPA Vehicle
710008040
Unavailable
525
Torx-Truss Pt K40 X 16
250000759
Unavailable
530
Terminal DESS CAN | CARB Vehicle
710008832
Unavailable
530
Ignition Switch | Includes 530 to 530a
710008938
Unavailable
535
Blank Ignition Key
715900934
Unavailable
600
Multifunction Gauge Compact Mono
710008108
Unavailable
610
Int Gauge Support
710007694
Unavailable
620
Torx Screw K50 X 16
250000720
Unavailable
650
Specialized Nut
278004274
Unavailable
650
Specialized Nut
710007923
Unavailable
670
LH Cap
705015024
Unavailable
671
Torx Screw K50 X 16
250000720
Unavailable
681
Torx Screw K50 X 16
250000720
Unavailable
685
RH Front Headlight Support
710008319
Unavailable
690
LH Front Headlight Support
710008318
Unavailable
695
HIgh Beam Light
710006910
Unavailable
699
Torx-Truss Pt K40 X 16
250000759
Unavailable
700
Low Beam Light
710008088
Unavailable
701
Ball Socket
293900157
Unavailable
702
Screw PT Type K-50 X 16
250000959
Unavailable
703
Ajustment Screw
710005837
Unavailable
704
Grommet
709000582
Unavailable
705
Shoulder Bushing
710004749
Unavailable
706
Torx Screw K50 X 16
250000720
Unavailable
800
Voltage Regulator | Package-DPS, Model-Europe
710005569
Unavailable
810
Hex. Flange Screw M6 X 25
207562544
Unavailable
950
DC Outlet
710001248
Unavailable
960
USB Outlet
219400510
Unavailable
1010
Voltage Regulator Support
710006542
Unavailable
1020
Hex. Flange Screw M6 X 40
207664044
Unavailable
1030
Rubber Stopper
293830229
Unavailable
1040
Hex. Flange Screw M6 X 12
207661244
Unavailable
