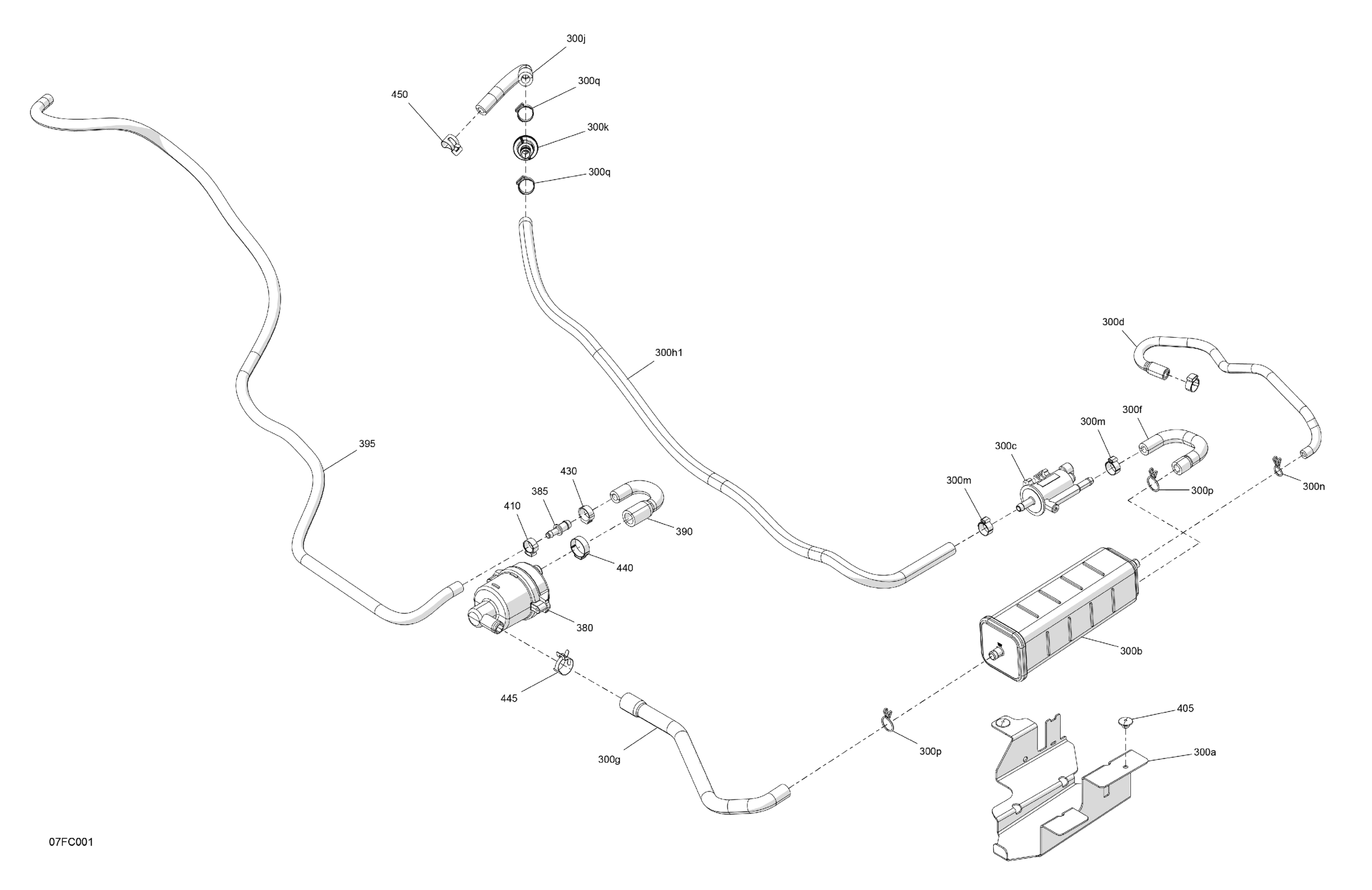

Can-Am Outlander MAX XT 700 - 2023 Engine - Canister Charcoal Ass'y Diagram

Description

Price

300a

Support Module | Includes 300a to 300q

709001219

$49.22

300b

Vapor Canister

709001217

$90.27

300c

Bleed Selenoid Valve

709000991

Unavailable

300d

Hose

709001103

$47.73

300g

Hose

709001107

$28.33

300h1

Hose 3000Mm Long

219704612

$77.58

300f

Hose

709001105

$43.25

300j

Hose

709001371

$15.64

300k

Check Valve

275500941

$23.10

300m

Crimp Clamp, 15.3-706R

293650047

$3.03

300n

Hose Clamp 9.8mm-11.5mm (Spring Type)

293650295

$11.28

300p

Hose Clamp 15.5mm-17.5mm (Spring Type)

293650294

$11.28

300q

Crimp Clamp

293650053

$2.78

380

Air Filter

709001109

$19.37

385

Straight Fitting

293710035

$8.37

390

Hose

709001372

$14.49

395

Hose 6.35MM ID

219704534

$23.10

405

Pop Rivet 3/16"

293150103

$0.52

410

Oetiker Clamp

293650042

$2.82

430

Crimp Clamp

293650053

$2.78

440

Oetiker Clamp

293650186

$3.82

445

Norma Clamp

293650110

$4.25

450

Norma Spring Clamp

293650214

$14.90
