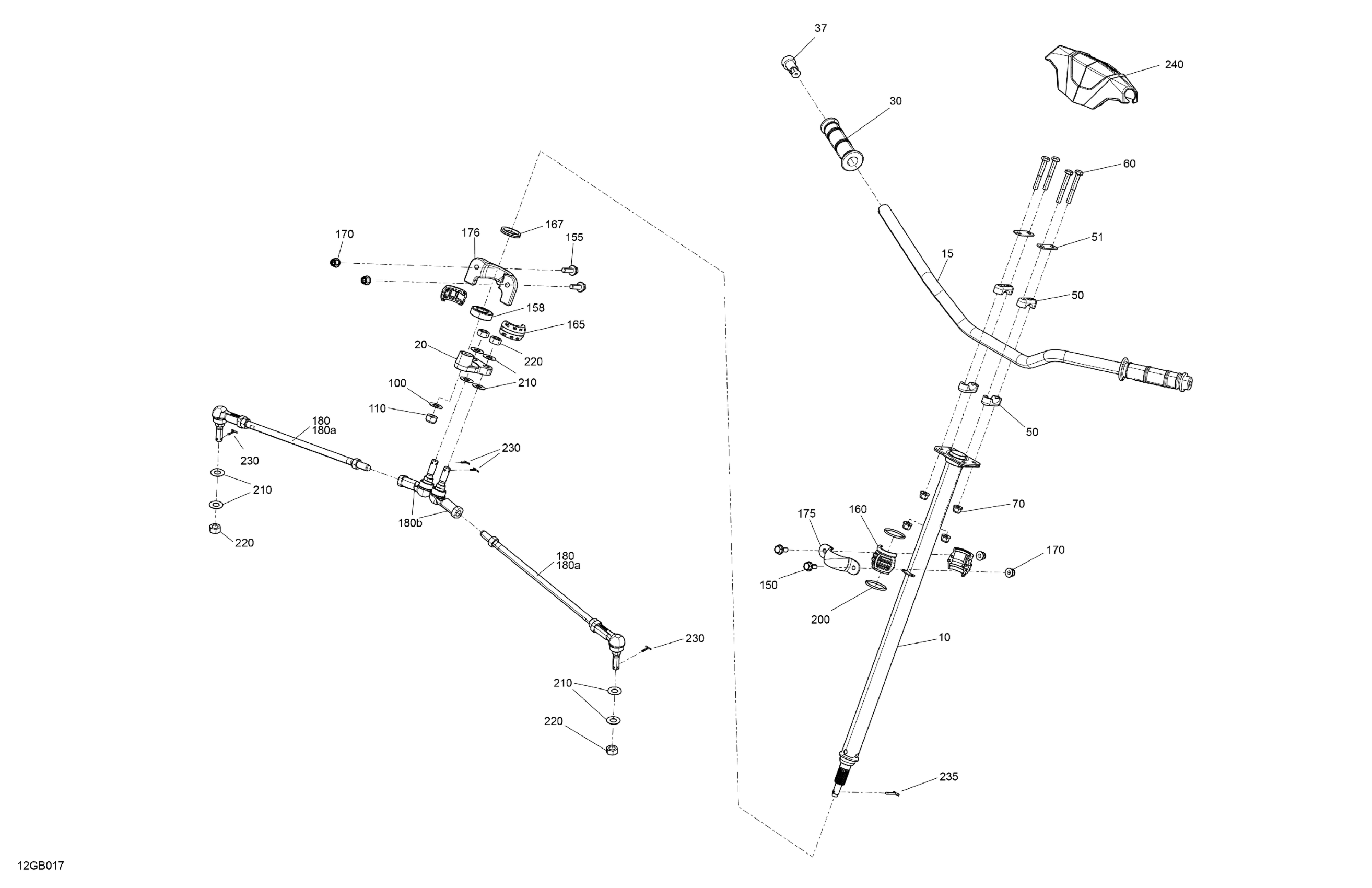

Can-Am Outlander MAX 570 EFI - DPS - (2FNA-2FNB) 2022 Mechanic - Steering - Without DPS Diagram

Description

Price

Steering Axle

709402797

$132.81

Deep Black, Handlebar

709402872

$52.96

Pitman Arm | Package-STD

709401542

$26.09

Handle Grip

709400493

$13.82

End Piece

709400449

$7.57

Steering Support

709401799

$20.12

Stiffner

709400509

$4.30

Hex. Screw M8 X 60

207086046

$2.64

Hex. Elastic Flange Nut M8

233281416

$1.43

100

Hardened Washer

706200281

$2.69

110

Hex. Flange Elastic Nut M12

250000047

$1.79

150

Hex. Flange Screw M8 X 20

207682044

$1.06

155

Hex. Flange Screw M8 X 25

207682544

$1.03

158

Ball Bearing | Package-STD

503190396

$8.18

160

Spherical Half Bushing

709400783

$5.96

165

Spherical Half Bushing | Package-STD

709401370

$5.63

167

Seal

293250177

$6.49

170

Hex. Elastic Flange Nut M8

233281416

$1.43

175

Upper Column Attachment

709400827

$0.97

176

Column Attachment

709401428

$35.04

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$89.52

180a

LH Ball Joint

709402303

$34.30

180b

RH Ball Joint

709402302

$34.30

200

O-Ring

293300068

$6.07

210

Hardened Washer

706200281

$2.69

220

Hex Nut M12

250100239

$1.88

230

Cotter Pin

211400013

$0.31

235

Cotter Pin

250400034

$2.00

240

Cover

709400939

$22.36
