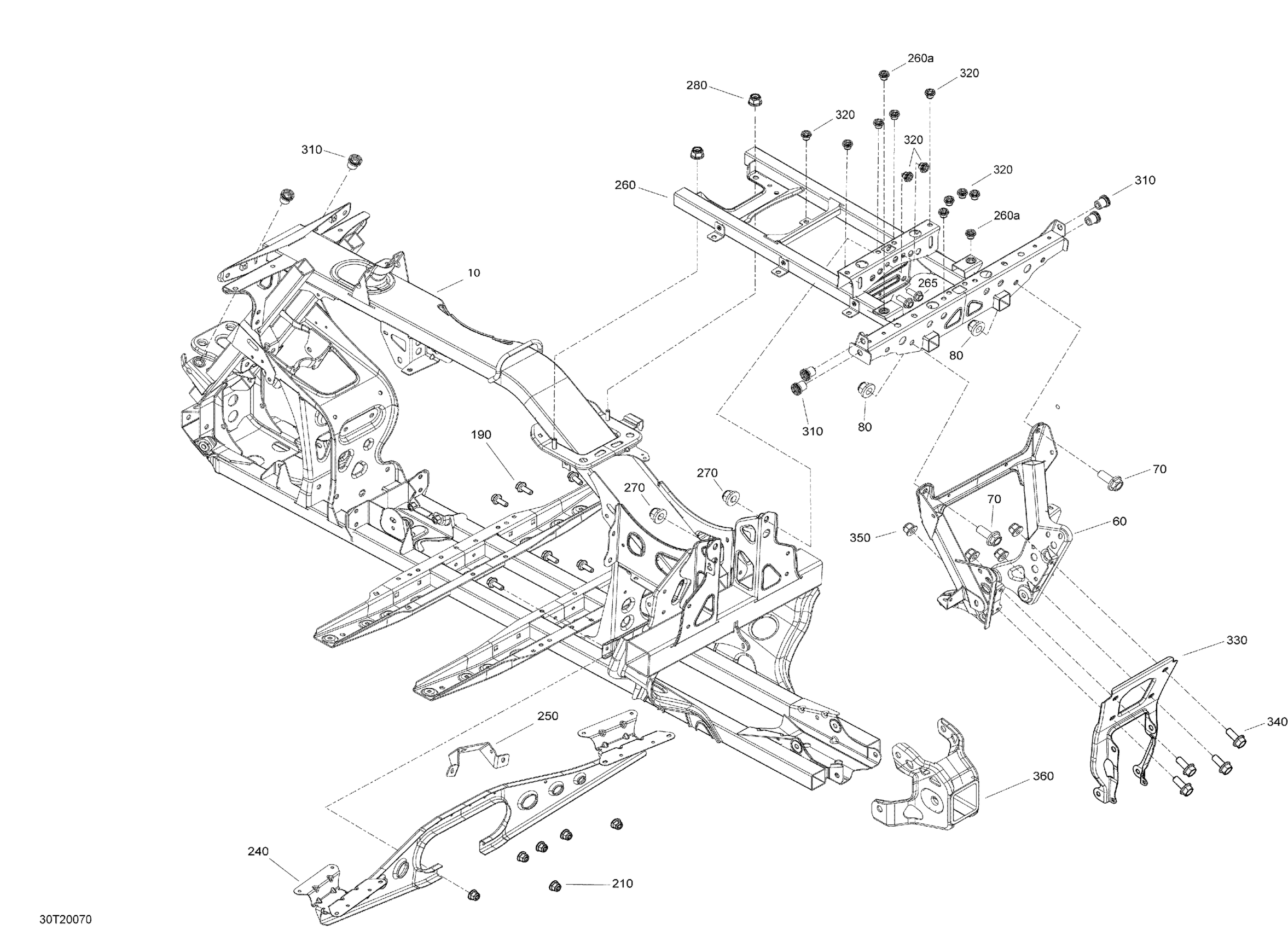

Can-Am Outlander 1000R EFI - XMR - 2020 Frame Diagram

Chassis

705209379

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Footrest Support

705210817

$76.99

Master Cylinder Bracket

705203874

$11.49

Chassis Extension

705210822

$124.99

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Support

705203301

$43.99

Hex. Flange Screw M8 X 20

207682046

$1.90

Hex. Elastic Flange Nut M8

233281416

$1.48

Trailer Hitch

715005186

$128.49
