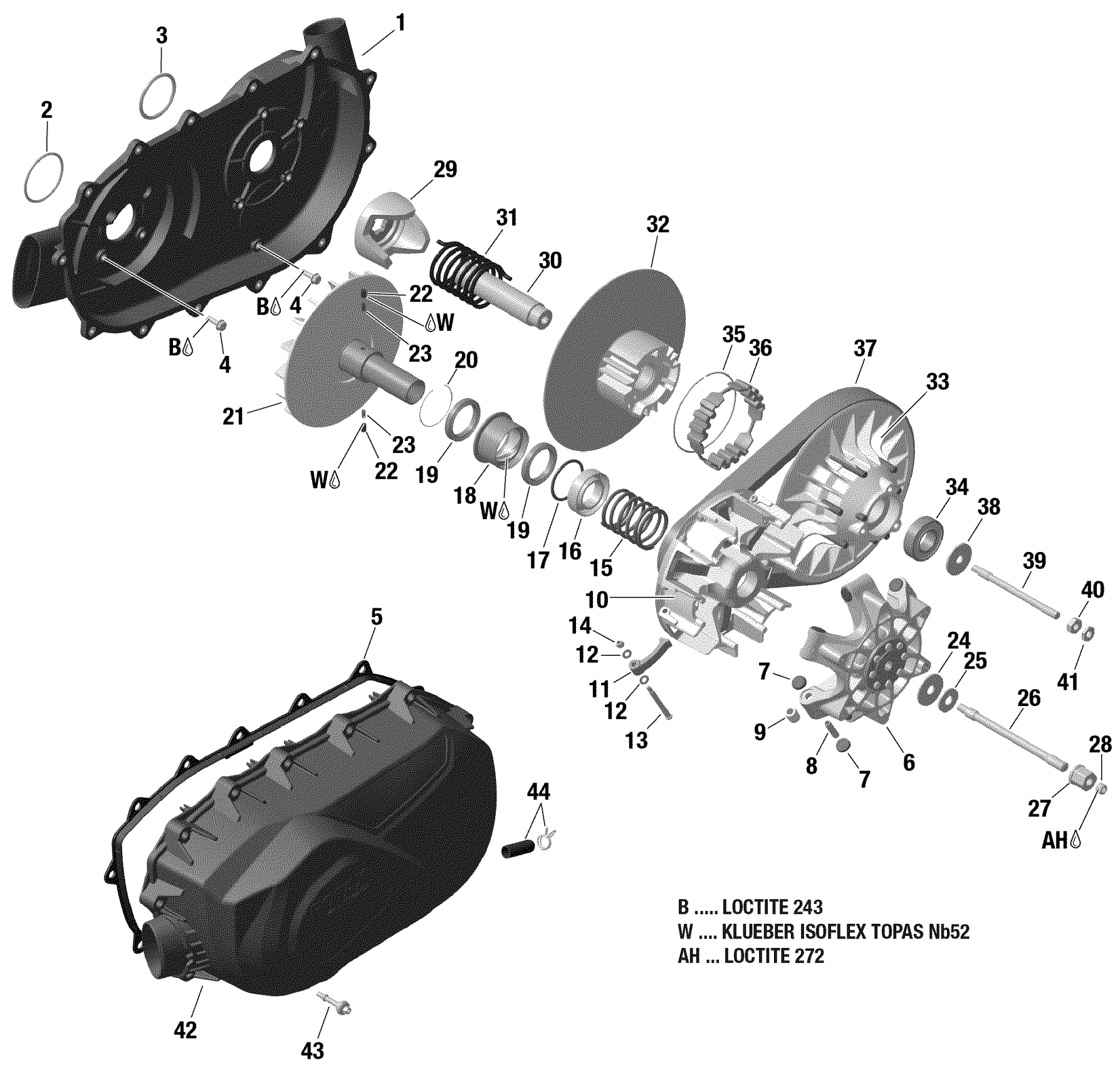

Can-Am Outlander MAX 1000R EFI - 2020 Transmission - 322 Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Gasket

420430126

$41.49

6

Governor Cup

420280664

$369.99

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Outer Haft

420280467

$329.99

11

Lever Set Ass'y | Includes 11a to 14

420248682

$174.99

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Compression Spring, Drive Pulley

420238617

$29.49

16

Seat Spring

420627578

$35.99

17

Friction Washer

420460430

$13.99

18

Drive Pulley Clutch

420257195

$114.99

19

Ball Bearing

420632377

$49.99

20

Retaining Ring

420245951

$5.31

21

Inner Half

420280374

$339.99

22

Spring Sleeve

420229577

$18.49

23

Spring

420239134

$3.06

24

Clutch Bolt Repair Kit

703500842

$68.99

25

Clutch Bolt Repair Kit

703500842

$68.99

26

Clutch Bolt Repair Kit

703500842

$68.99

27

Clutch Bolt Repair Kit

703500842

$68.99

28

Clutch Bolt Repair Kit

703500842

$68.99

29

Cam

420280473

$137.99

30

Driven Pulley Shaft

420220914

$129.99

31

Compression Spring

420638040

$61.99

32

Inner Half Ass'y

420280786

$308.49

33>34

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

34

Ball Bearing

420932421

$28.49

35

Retaining Ring

420245911

$5.31

36

Torque Gear

420660124

$23.49

37

V-Belt

422280366

$179.99

38

Thrust Washer

420627594

$13.49

39

Stud Screw M10 X 136

420441900

$25.99

40

Nut M10

420242097

$2.51

41

Hexagonal Nut M10

420242403

$1.90

42

Variator Cover

420612316

$169.49

43

Hex Screw M6 X 30

420440568

$8.58

44

Drain Plug Kit

707001179

$9.63
