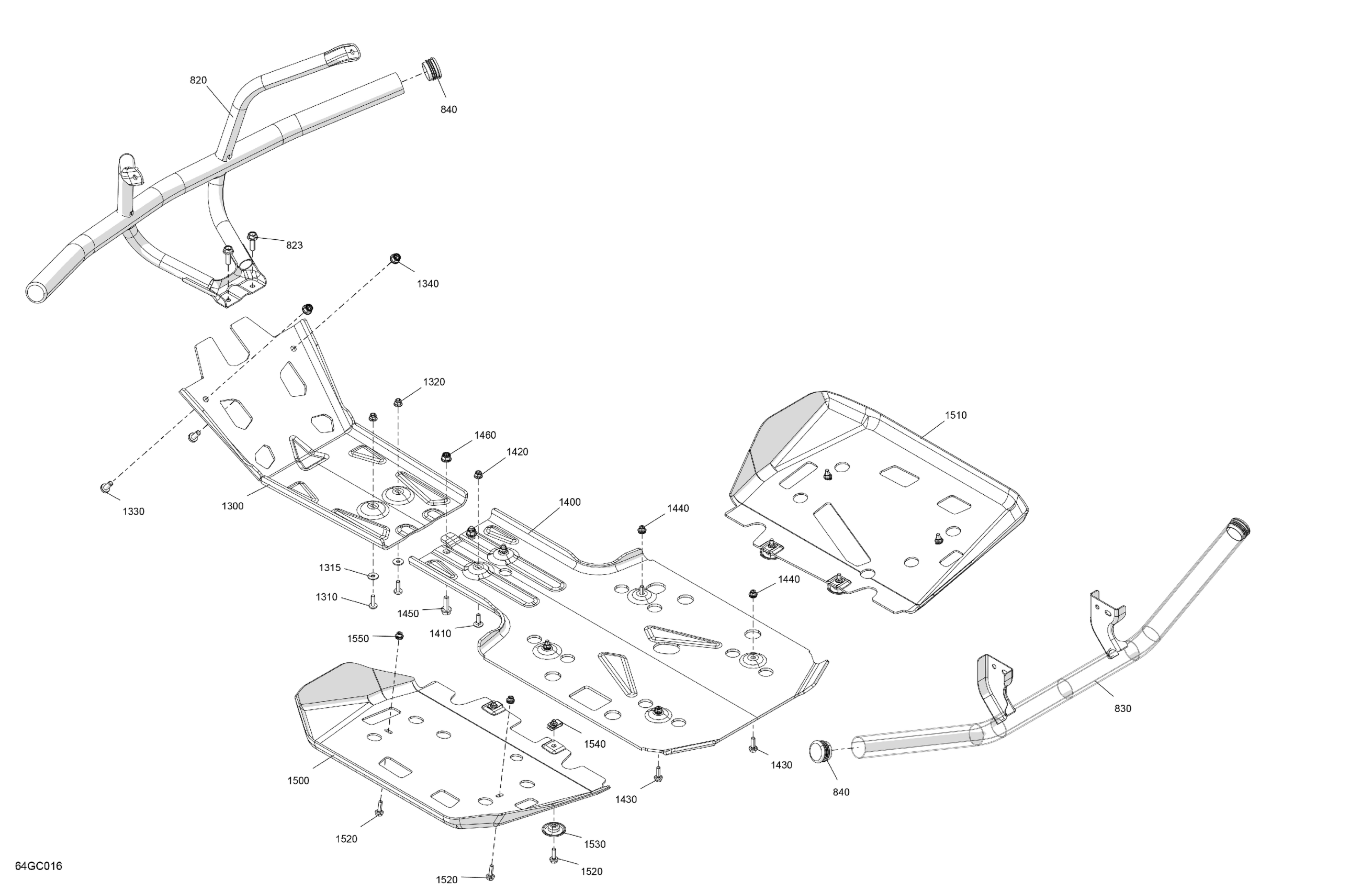

Can-Am Outlander 570 EFI - Mossy Oak Edition - 2023 Body - Skid Plate and Bumper Diagram

Description

Price

820

Front Bumper kit | Model XT, Hunter

715001910

$179.99

823

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

830

Rear Bumper kit | Package Hunter

715001911

$142.99

840

Cap

705202455

$5.69

1300

Front Skid Plate | Package Hunter

705205019

$179.99

1310

Torx Screw M6 X 20

250000712

$2.11

1315

Stainless Steel Flat Washer

234062670

$2.11

1320

Flange Elastic Nut M6

233261434

$4.44

1330

Hex. Screw M8 X 20

236282054

$1.47

1340

Hex. Flange Elastic Nut M8

233281434

$2.11

1400

Central Skid Plate | Package-XXC

705204031

$174.49

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

1420

Flange Elastic Nut M6

233261434

$4.44

1430

Hex. Flange Screw M6 X 20

207662054

$1.01

1440

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1450

Hex. Flange Screw M8 X 25

207682544

$1.35

1460

Hex. Flange Elastic Nut M8

233281434

$2.11

1500

LH Skid Plate | Package Hunter

705010659

$121.49

1510

RH Skid Plate | Package Hunter

705010660

$121.49

1520

Hex. Flange Screw M6 X 20

207662054

$1.01

1530

Cup | Package Hunter

705007171

$7.89

1540

Panel Nut M6 X 1.0

250100198

$2.11

1550

Insert Half Hex Body M6 x 1.0

250100199

$3.19
