Description

Price

10

Deep Black, Chassis Tunnel Module 137 | Includes 10 to 10d

415130728

$3.00

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

RH Footrest

518332921

$42.99

10j

LH Footrest

518332306

$42.99

10q

RH Rear Suspension Anchorage

518337140

Unavailable

10r

LH Rear Suspension Anchorage

518334498

$109.99

10s

Stirrup Reinforcement

518334507

$21.99

10t

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10u

RH Roller

518329023

$194.99

10v

LH Roller

518329024

$194.99

10w

Radiator Tunnel Ass'y 120 This part replaces 518334497.

518335616

Unavailable

10y

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10aa

Rear Tunnel 137

518334039

$194.99

10ab

RH Footrest

518333006

$40.99

10ac

Black, Plug

293730052

$9.19

10af

Rear Radiator Guard

518332732

$34.99

10aj

Rivet Avibulb 3/16

293150203

$2.09

10am

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10ap

Henrob Rivet

293150245

$1.69

10ar

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10as

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10at

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10au

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

27

Insert

293450275

$12.99

170

Insert M5 - 0.8

293450267

$4.59

200

LH Junction Reinforcement

518329493

$22.49

210

RH Junction Reinforcement

518329494

$22.49

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300b

518331570

$111.49

1300b

Cap

520001612

$10.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3000

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$219.99

3000a1b

Avex Rivet

390909100

$0.30

3010

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$219.99

3010a1b

Avex Rivet

390909100

$0.30

3015

Support

518329838

$33.99

3050

Torx Truss Screw M6 X 12

250000767

$2.00

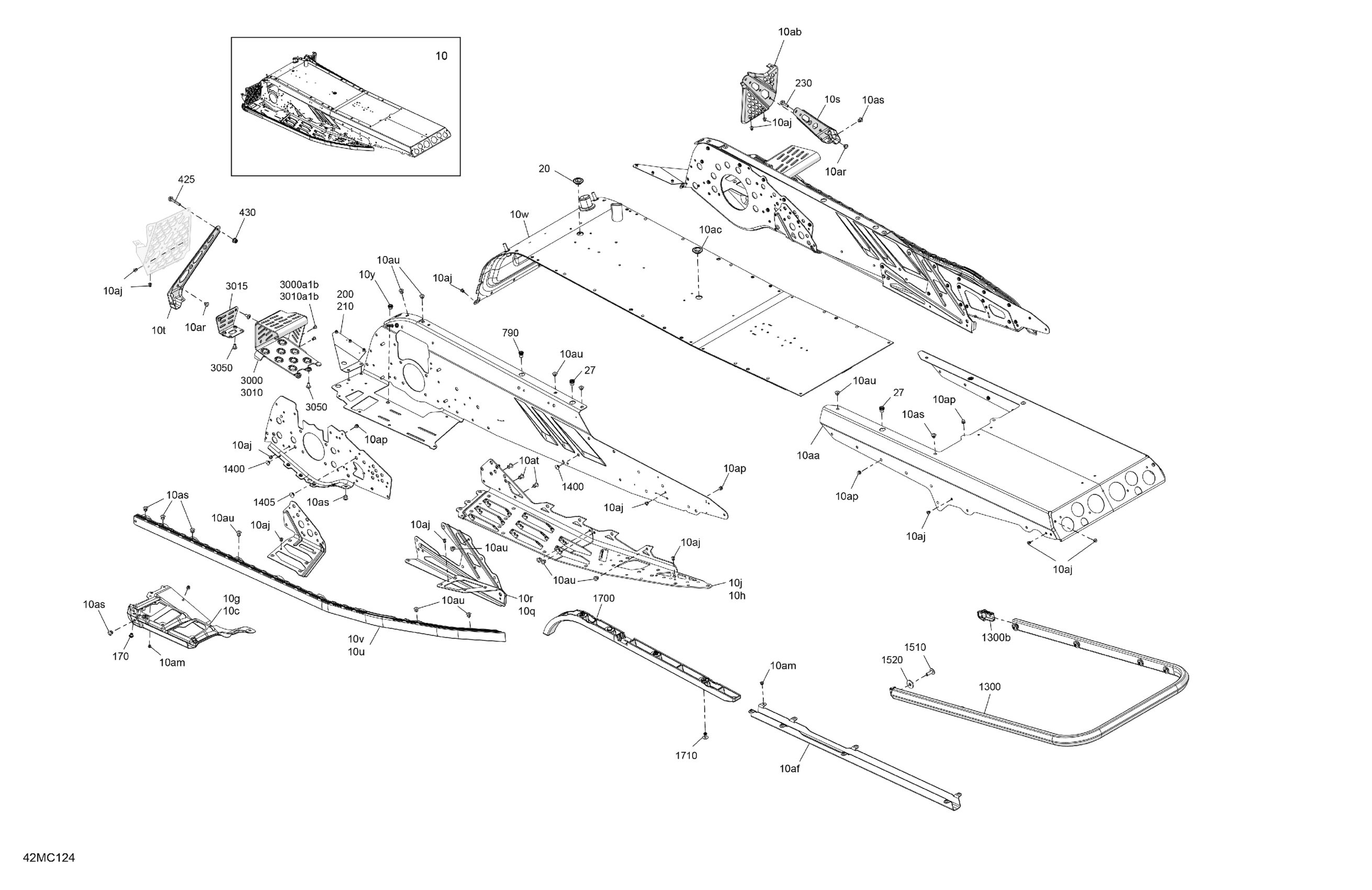

Ski-Doo 013 - MXZ 600RS - North America, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 137 | Includes 10 to 10d

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

RH Footrest

LH Footrest

RH Rear Suspension Anchorage

LH Rear Suspension Anchorage

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

Radiator Tunnel Ass'y 120 This part replaces 518334497.

Insert Half Hex Body M6 x 1.0

Rear Tunnel 137

RH Footrest

Black, Plug

Rear Radiator Guard

Rivet Avibulb 3/16

Avibulb Rivet 4.8 X 12.1

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Rivet Ornit 6,5 X 16.5

Ornit Rivet 6,5 X 14.5

Black, Plug

Insert

Insert M5 - 0.8

LH Junction Reinforcement

RH Junction Reinforcement

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Insert

Rear Bumper | Includes 1300 to 1300b

Cap

Black, Dart 8 mm

Black, Dart 10 mm

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Pop Rivet 3/16”

LH Footrest Ass'y | Includes 5000a to 5000a1a2

Avex Rivet

RH Footrest Ass'y | Includes 5000b to 5000b1a

Avex Rivet

Support

Torx Truss Screw M6 X 12
