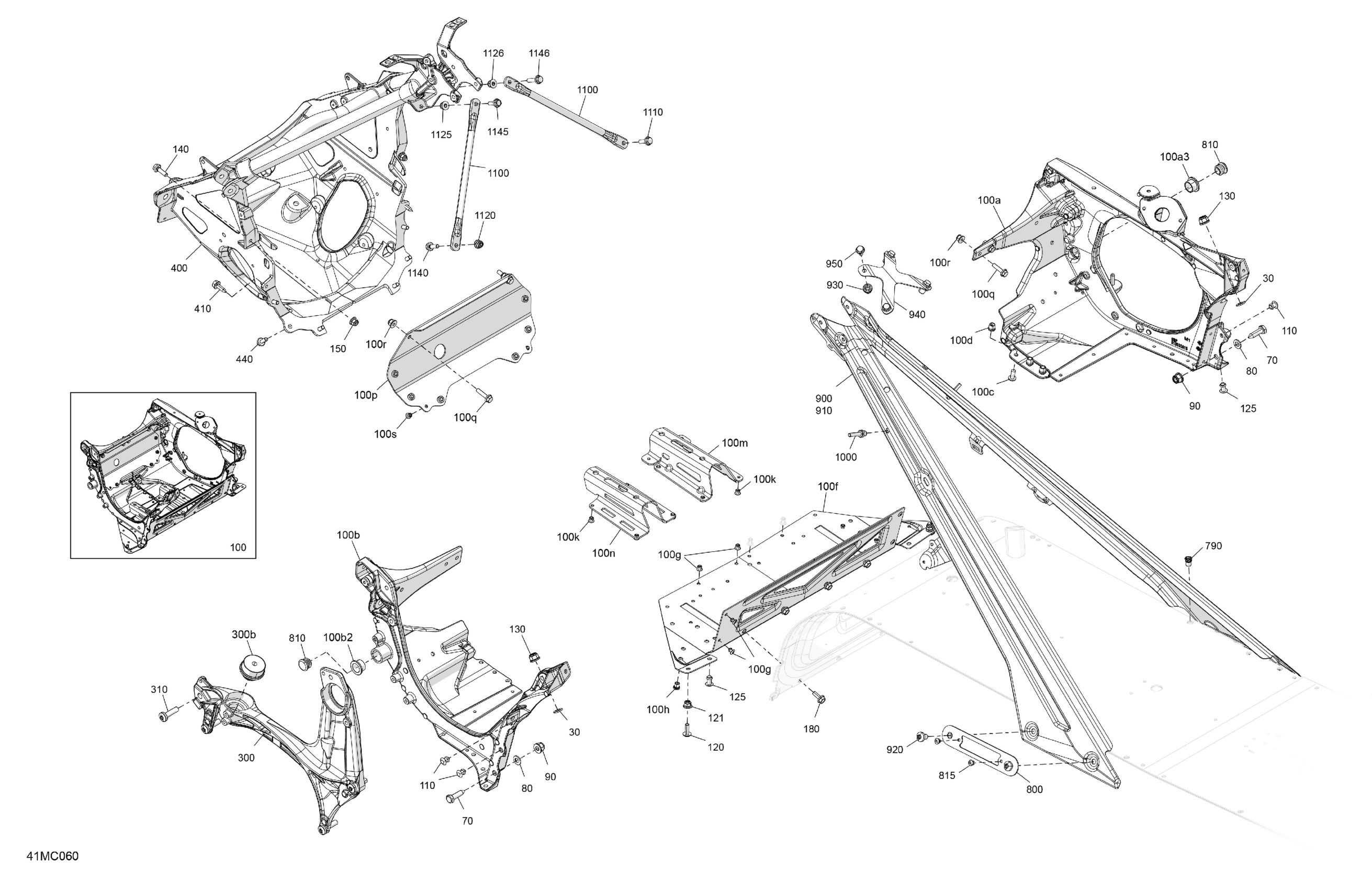

Ski-Doo MXZ 600RS - 2023 Frame - System - Front Section Diagram

#

Description
Price

30

Flat Washer 8 mm

234081410

$0.83

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module | Includes 100 to 100s

518334278

$729.99

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

100a3

Leg Bushing

505072690

$12.49

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b2

Leg Bushing

505072690

$12.49

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100f

Bottom Plate

518332716

$36.99

100g

Rivet Avibulb 3/16

293150203

$2.09

100h

Insert M5 X 0.8

293450268

$2.09

100k

Rivet Avibulb 3/16

293150203

$2.09

100m

RH Cross Link

518329814

Unavailable

100n

LH Central Cross Member Support

518333927

$33.99

100p

Front Member

518330100

$60.99

100q

Hex. Flange Screw M6 X 25

250000945

$4.44

100r

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100s

Rivet Avibulb 3/16

293150203

$2.09

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Tork Screw M6 X 18

250000536

$2.11

121

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

125

Rivet Ornit 6,5 X 18.5

293150268

$2.40

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

300

Brace Ass'y | Includes 300 to 300b

518330166

$349.99

300b

Rubber Mount

512061284

Unavailable

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518333318

$859.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

440

Hex. Flange Screw M6 X 16

207661636

$1.35

790

Insert

293450278

$4.49

800

Member Fixation Plate

518329480

$12.99

810

Cap

517302716

$4.69

815

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

900

LH Rear Diagonal Cross Member Ass'y

518334034

$119.99

910

Deep Black, RH Rear Diag. Cross Member Ass'y

518334035

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

930

Insert

293450275

$12.99

940

Brace Rear Member

518329499

$16.99

950

Hex. Flange Screw M6 X 16

207661644

$0.74

1000

Stud M5 X 20

250300629

$2.09

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1126

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1145

Hex. Flange Screw M6 X 20

207662046

$2.11

1146

Hex. Flange Screw M6 X 25

207662556

$4.44
