Description

Price

5000

Central Shock Absorber

503196829

$812.99

5000b

O-Ring

415093807

$35.99

5000c

Piston Ring | Not Shown

415093806

$16.86

5000d

Air Valve

505070398

$20.99

5000f

Screw | Not Shown

505070399

$4.12

5000g

O-Ring

505070400

$4.54

5000h

Circlip - Call your local BRP dealership

715900076

$4.12

5000j

O-Ring

415093804

$4.54

5010

Spring

503195824

$67.99

5060

Central Spring Stopper

503196901

$53.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock Absorber

503196900

$877.49

5500a

Piston Ring | Not Shown

415093806

$16.86

5500b

Air Valve

505070398

$20.99

5500c

Screw | Not Shown

505070399

$4.12

5500d

O-Ring

505070400

$4.54

5500f

Circlip - Call your local BRP dealership

715900076

$4.12

5500g

O-Ring

415093804

$4.54

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex Flange Screw M8 X 40

207684056

$1.47

5600

Elastic Flange Nut M8

233281466

$1.01

5620

Spacer

503190526

$10.49

5630

Washer

503192494

$3.17

5640

Hex. Screw M8 X 55

207085556

$1.69

5650

Elastic Flange Nut M8

233281466

$1.01

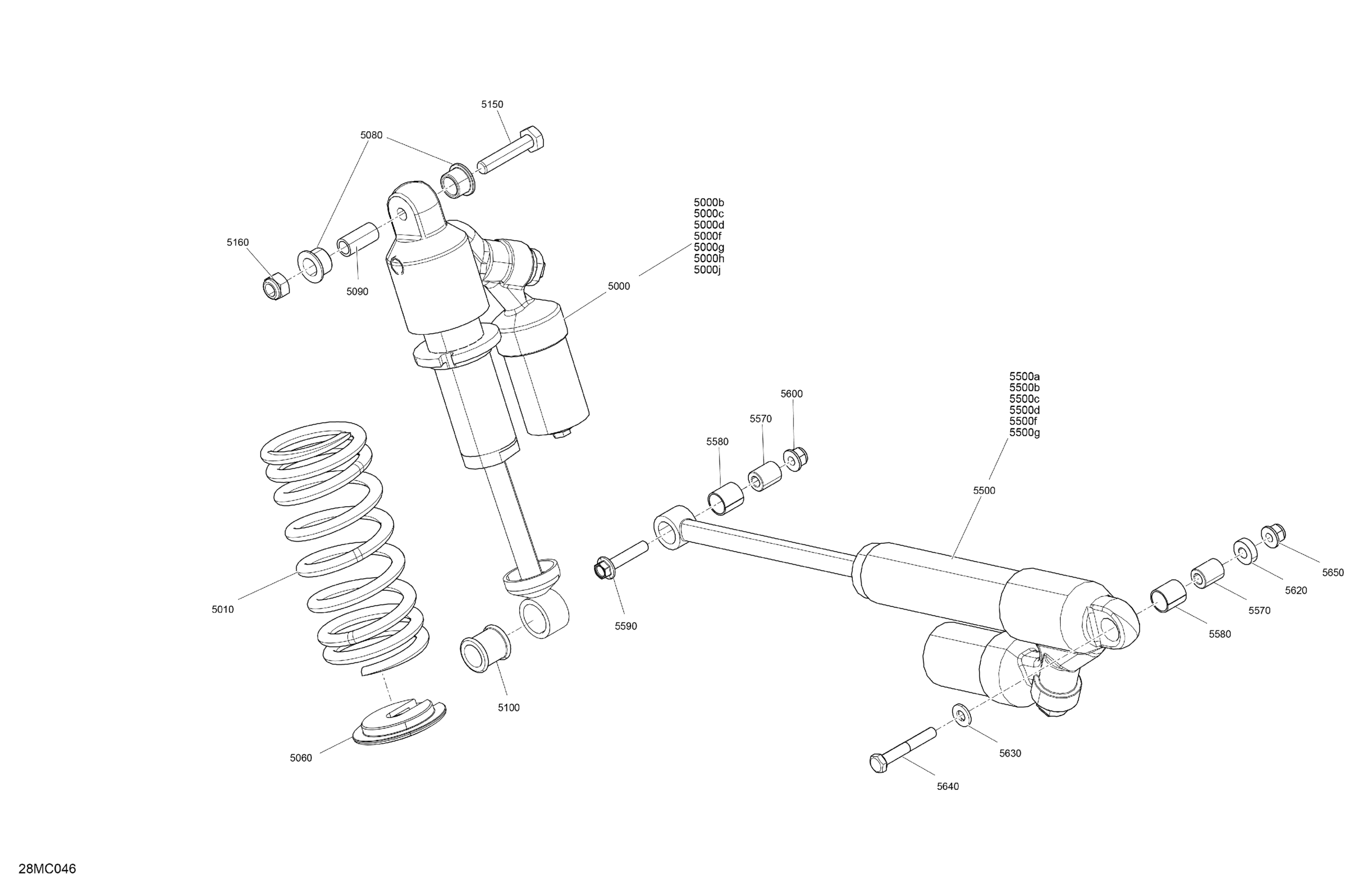

Ski-Doo MXZ 600RS - 2023 Suspension - Rear Shocks Diagram

Central Shock Absorber

O-Ring

Piston Ring | Not Shown

Air Valve

Screw | Not Shown

O-Ring

Circlip - Call your local BRP dealership

O-Ring

Spring

Central Spring Stopper

Urethane Bushing

Bushing | Includes 240d to 240d1

Bushing

Hex. Screw M10 X 1.5 X 50

Elastic Locking Nut M10

Rear Shock Absorber

Piston Ring | Not Shown

Air Valve

Screw | Not Shown

O-Ring

Circlip - Call your local BRP dealership

O-Ring

Axle Shock Absorber

Leg Cushion

Hex Flange Screw M8 X 40

Elastic Flange Nut M8

Spacer

Washer

Hex. Screw M8 X 55

Elastic Flange Nut M8
