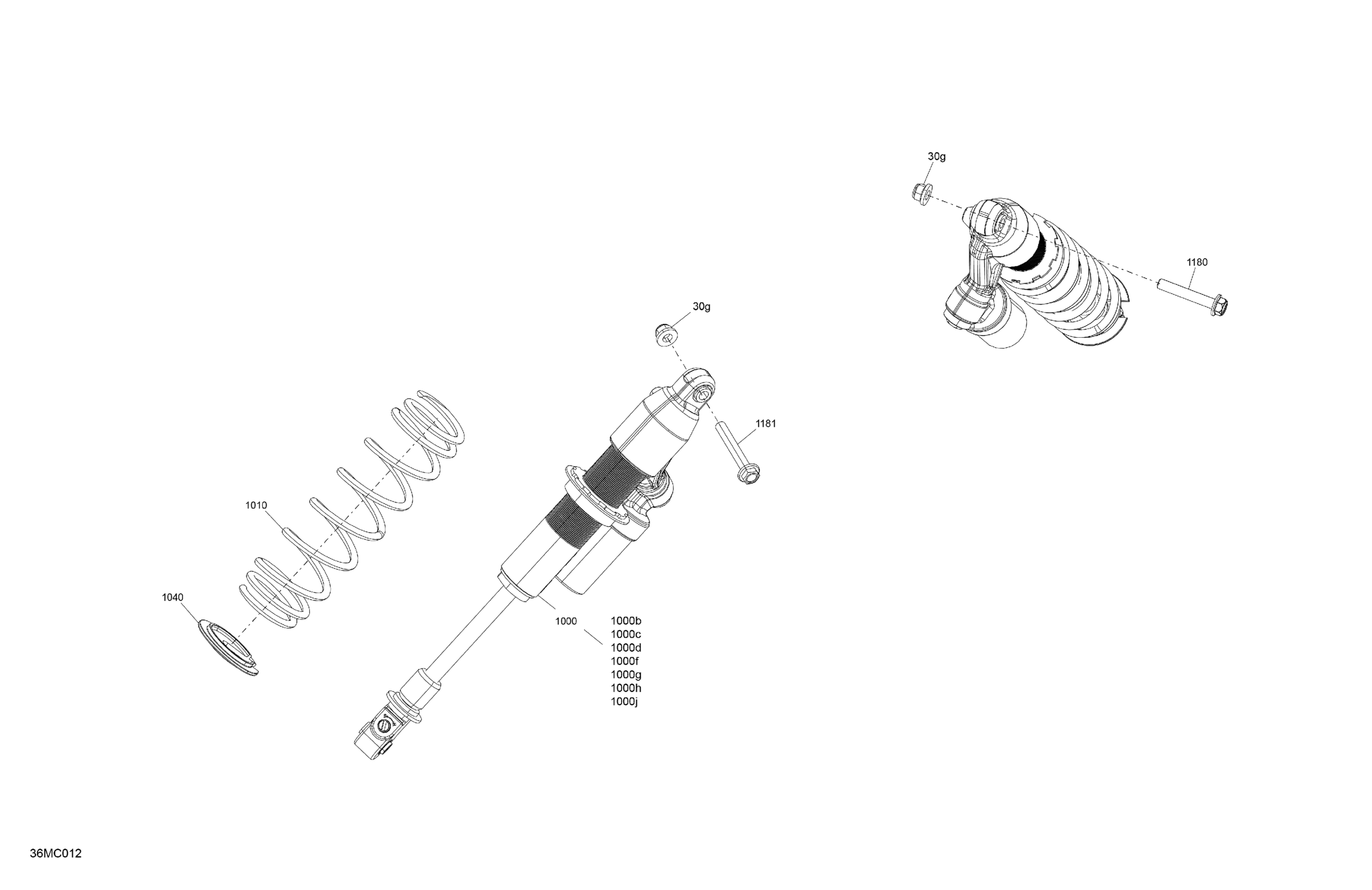

Ski-Doo 013 - MXZ 600RS - North America, 2023 05- Suspension - Front Shock Diagram

Description

Price

30g

Hex. Flange Elastic Nut M10

233201436

$2.11

1000

Front Shock Absorber | Includes 1000 to 1000j

505075514

$877.49

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

Air Valve

505070398

$20.99

1000f

Screw | Not Shown

505070399

$4.12

1000g

O-Ring

505070400

$4.54

1000h

Circlip - Call your local BRP dealership

715900076

$4.12

1000j

O-Ring

415093804

$4.54

1010

Compression Spring

505075515

$62.49

1040

Spring Stopper

503196109

$43.99

1180

Hex. Flange Screw M10 X 6

207606046

$4.12

1181

Hex. Flange Screw M10 X 70

207607046

$2.96
