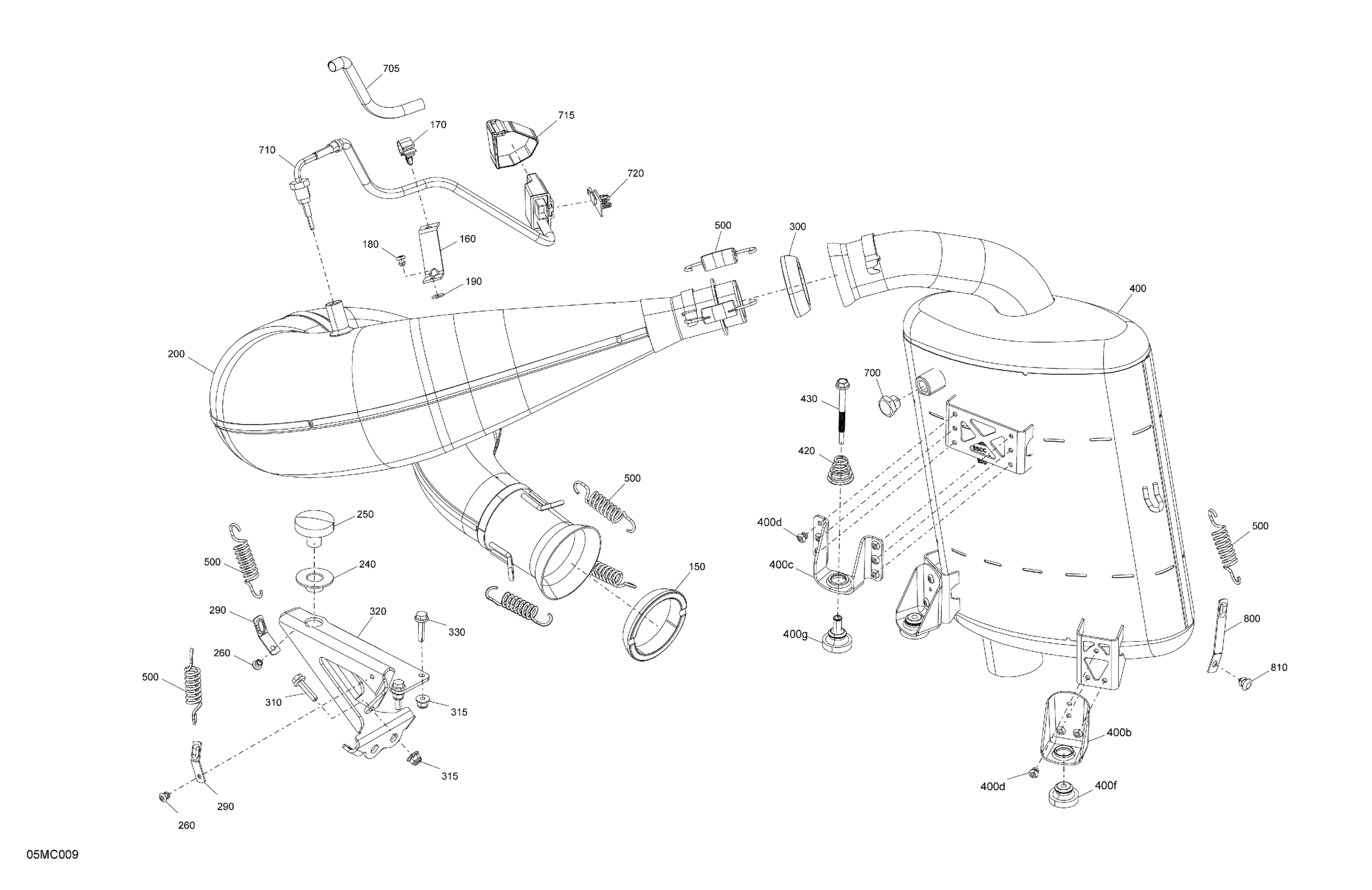

Ski-Doo 013 - MXZ 600RS - North America, 2023 02- Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

160

Support

514055512

$3.17

170

Tie Rap Mount (screwable)

515176795

$5.39

180

Avex Rivet

390909200

$0.30

190

Washer 3/16

514055537

$1.01

200

Pipe

514055809

$857.99

240

Support Stopper

514055831

$20.49

250

Rubber Bumper

514053654

$50.99

260

Avex Rivet

390909200

$0.30

290

Spring Bracket

514054522

$8.45

300

Exhaust Gasket

514055294

$24.99

310

Hex. Flange Screw M6 X 25

207662544

$0.64

315

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

320

Support

514055830

$66.99

330

Hex. Flange Screw M6 X 25

207662544

$0.64

400

Muffler Ass'y | Includes 400 to 400g

514055429

$858.49

400b

Support

514056054

$6.39

400c

Support

514055406

$5.39

400d

Avex Rivet

390909200

$0.30

400f

Stopper

514055203

$20.49

400g

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514055198

$6.35

700

Hexagonal Head Pipe Plug M14

250100074

$12.72

705

Heat Shield

514055832

$13.49

710

Module

515178170

$174.99

715

Velcro Strip

508000820

$8.59

720

Module Support

514056265

$3.27

800

Spring Bracket

514055644

$19.48

810

Hemlock Rivet, 6.5 mm

293150096

$3.27
