Description

Price

130a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706002257

$1,529.99

130a.1

Spherical Bearing

715900337

$84.99

130a.2

Ball Joint

706004078

$47.49

130a.3

O-Ring Bushing

715900338

$12.63

130a.4

Anchorage

706204583

$15.49

130a.5

Circlip

715900480

$11.49

130a.6

Reducer

715900481

$27.99

130a.7

Screw M6 X 35

715900521

$5.29

130a.8

Réservoir Clamp

715900522

$38.99

130a.9

Connector Support

706203583

$13.49

130b

Deep Black, Compression Spring | Model Timeless Black with Smart-ShoX

706004160

$121.49

130b

B-437, Compression Spring

706004480

$116.49

130b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004481

$116.49

130c

Black Rear Spring | XRSDPS Package, Timeless Black Metallic

706002668

$153.49

130c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004165

$147.99

130c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004196

$153.49

130d

Protector

706202215

$11.99

130e

Washer M5

250200025

$0.74

130f

Hex Flange Screw M5 X 11

210251150

$2.11

130g

Rear Suspension Wiring Harness Ass'y

710006389

$229.99

130j

Socket Head Screw M5 X 10

205551060

$1.58

135a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706002257

$1,529.99

135a.1

Spherical Bearing

715900337

$84.99

135a.2

Ball Joint

706004078

$47.49

135a.3

O-Ring Bushing

715900338

$12.63

135a.4

Anchorage

706204583

$15.49

135a.5

Circlip

715900480

$11.49

135a.6

Reducer

715900481

$27.99

135a.7

Screw M6 X 35

715900521

$5.29

135a.8

Réservoir Clamp

715900522

$38.99

135a.9

Connector Support

706203583

$13.49

135b

Deep Black, Compression Spring | Model Timeless Black with Smart-ShoX

706004160

$121.49

135b

B-437, Compression Spring

706004480

$116.49

135b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004481

$116.49

135c

Black Rear Spring | XRSDPS Package, Timeless Black Metallic

706002668

$153.49

135c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004165

$147.99

135c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004196

$153.49

135d

Protector

706202215

$11.99

135e

Washer M5

250200025

$0.74

135f

Hex Flange Screw M5 X 11

210251150

$2.11

135g

Rear Suspension Wiring Harness Ass'y

710006389

$229.99

135j

Socket Head Screw M5 X 10

205551060

$1.58

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

250001195

$2.64

150

Hex. Flange Screw M12 X 70

250000858

$3.80

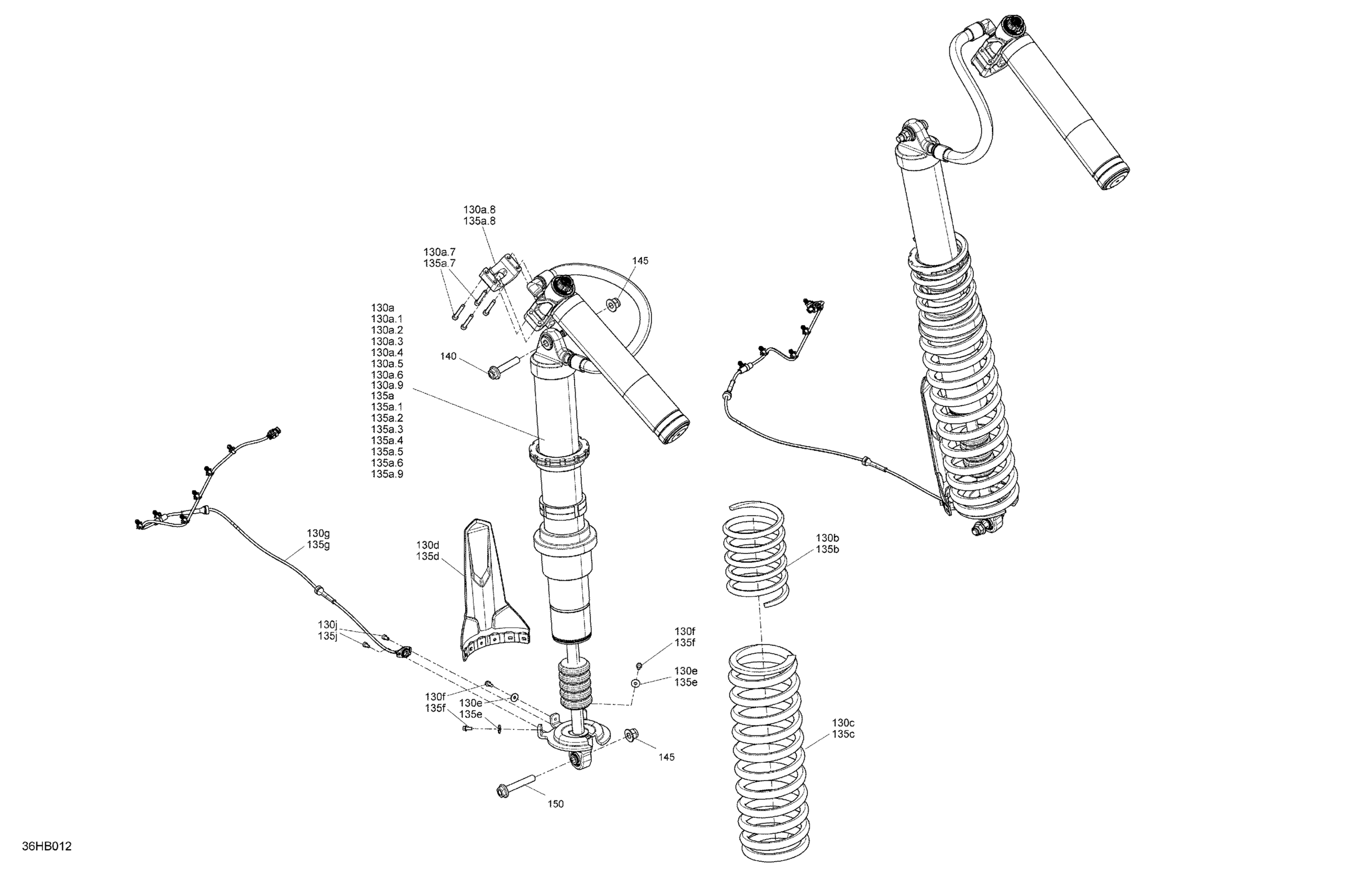

Can-Am 013 - Maverick MAX Turbo RR - XRS - North America, 2022 05- Suspension - Rear Shocks - With Smart-ShoX Diagram

Rear Adjustable Shock Absorber | Includes 130a to 130a8

Spherical Bearing

Ball Joint

O-Ring Bushing

Anchorage

Circlip

Reducer

Screw M6 X 35

Réservoir Clamp

Connector Support

Deep Black, Compression Spring | Model Timeless Black with Smart-ShoX

B-437, Compression Spring

Northern Lichen, Compression Spring | Model Macchiato Satin

Black Rear Spring | XRSDPS Package, Timeless Black Metallic

Dazzling Blue, Compression Spring | Model Dazzling Blue

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

Protector

Washer M5

Hex Flange Screw M5 X 11

Rear Suspension Wiring Harness Ass'y

Socket Head Screw M5 X 10

Rear Adjustable Shock Absorber | Includes 130a to 130a8

Spherical Bearing

Ball Joint

O-Ring Bushing

Anchorage

Circlip

Reducer

Screw M6 X 35

Réservoir Clamp

Connector Support

Deep Black, Compression Spring | Model Timeless Black with Smart-ShoX

B-437, Compression Spring

Northern Lichen, Compression Spring | Model Macchiato Satin

Black Rear Spring | XRSDPS Package, Timeless Black Metallic

Dazzling Blue, Compression Spring | Model Dazzling Blue

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

Protector

Washer M5

Hex Flange Screw M5 X 11

Rear Suspension Wiring Harness Ass'y

Socket Head Screw M5 X 10

Flange Screw M12 X 60

Elastic Flange Nut M12

Hex. Flange Screw M12 X 70
