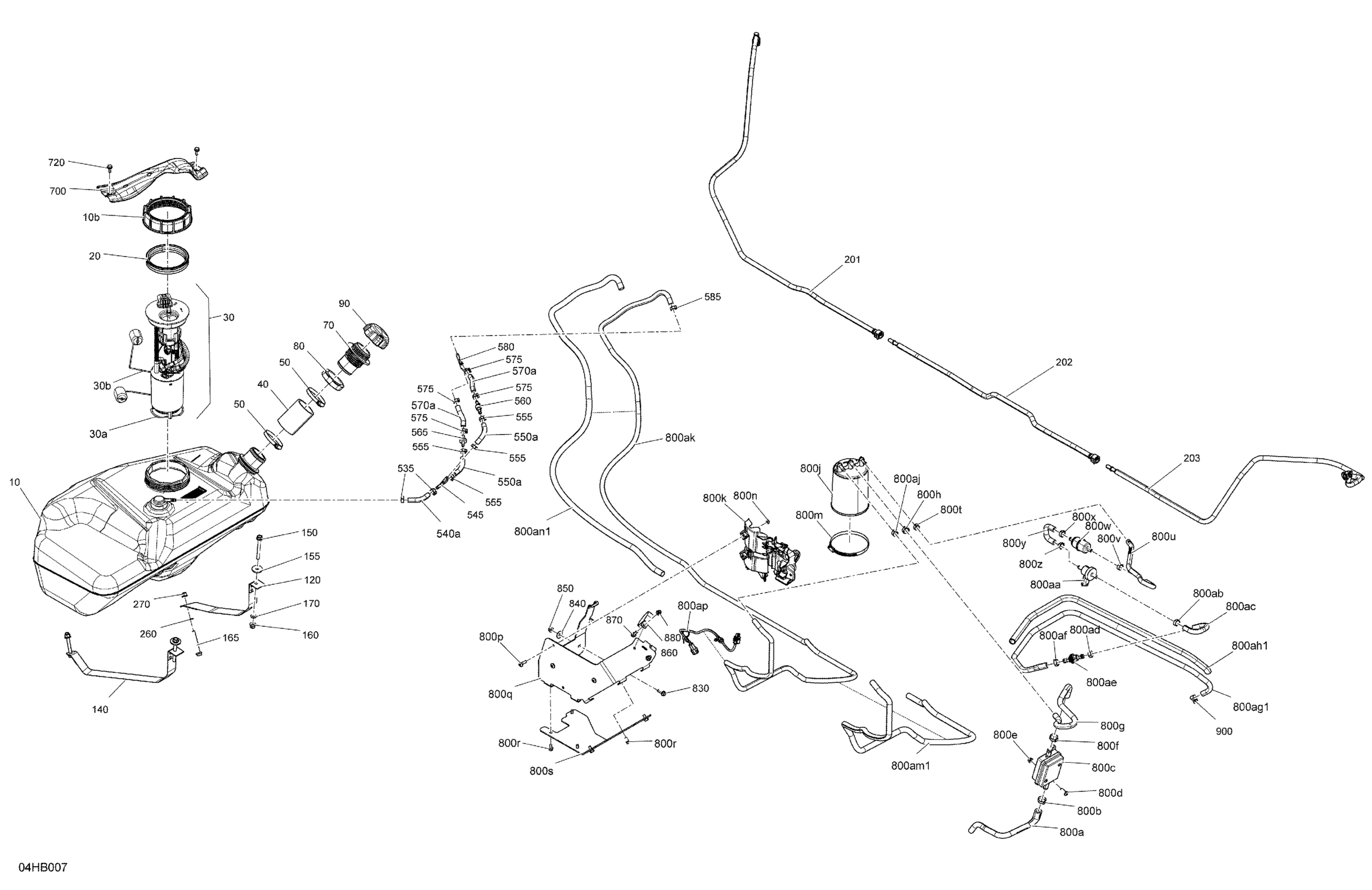

Can-Am Maverick MAX Turbo RR - XRS - 2022 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$287.66

10b

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001057

$353.87

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$138.43

40

Filler Neck

709000748

$32.28

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Fuel Filler Neck Nut

293600206

$10.02

90

Fuel Cap

709000868

$32.28

120

Fuel Tank Strap

709000910

$41.51

140

Fuel Tank Strap

709000911

$41.51

150

Screw Hex. FLange M8x75

250001084

$0.69

155

Flat Washer M8

250200187

$2.08

160

Hex. Flange Elastic Nut M8

233281414

$1.14

165

Hex. Flange Screw, M8 X 65

207686544

$9.74

170

Flat Washer 8 mm

234081410

$0.69

201

Formed Hose

709000987

$39.97

202

Formed Hose

709000989

$36.89

203

Formed Hose

709001059

$46.12

260

Flat Washer 8 mm

234081410

$0.69

270

Hex. Flange Elastic Nut M8

233281414

$1.14

535

Oetiker Clamp

293650042

$1.40

540a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$8.19

550a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$1.40

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

570a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.40

580

Y-Fitting

293710059

$8.19

585

Oetiker Clamp

293650042

$1.40

700

Connector Protector

707900594

$18.43

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

800a

Formed Hose

709000869

$15.22

800b

Oetiker Clamp

293650186

$3.33

800c

Air Filter

709000524

$46.12

800d

Torx Screw M6 X 20

250000712

$1.74

800e

Hex. Flange Elastic Nut M6

233261494

$1.26

800f

Oetiker Clamp

293650186

$3.33

800g

Formed Hose

709000870

$15.22

800h

Crimp Clamp

293650053

$2.42

800j

Charcoal Canister This part replaces 709001294.

709001673

$83.05

800k

Canister Support | EVAP Models

709000851

$4.60

800m

Tridon Clamp

293650054

$7.51

800n

Hex. Elastic Stop Nut M6

232561600

$0.92

800p

Torx Screw M6 X 20

250000712

$1.74

800q

Primary Support

709000955

$96.89

800r

Hex. Flange Screw M6 X 12

210261250

$1.56

800s

Secondary Support

709000956

$16.89

800t

Oetiker Clamp

293650042

$1.40

800u

Formed Hose

709000853

$15.22

800v

Oetiker Clamp

293650046

$2.33

800w

Fuel Filter

513034047

$23.05

800x

Crimp Clamp, 15.3-706R

293650047

$2.64

800y

Formed Hose

709000857

$15.22

800z

Crimp Clamp, 15.3-706R

293650047

$2.64

800aa

Bleed Valve

709000443

$69.20

800ab

Crimp Clamp, 15.3-706R

293650047

$2.64

800ac

Formed Hose

709000873

$15.22

800ad

Crimp Clamp

293650053

$2.42

800ae

Check Valve

275500941

$27.66

800af

Crimp Clamp

293650053

$2.42

800ag1

Hose 3000Mm Long

219704612

$79.97

800ah1

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800aj

Oetiker Clamp

293650046

$2.33

800ak

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800am1

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800an1

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800ap

Purge Valve Cable

710005718

$18.43

830

Hex. Flange Screw M6 X 20

207662054

$0.83

840

Flat Washer M6.6 X 22

250200162

$1.91

850

Hex. Flange Elastic Nut M6

233261494

$1.26

860

Open Clamp

293850132

$14.75

870

Hex. Flange Screw M6 X 20

207662054

$0.83

880

Hex. Flange Elastic Nut M6

233261494

$1.26

900

Norma Spring Clamp

293650214

$15.35
