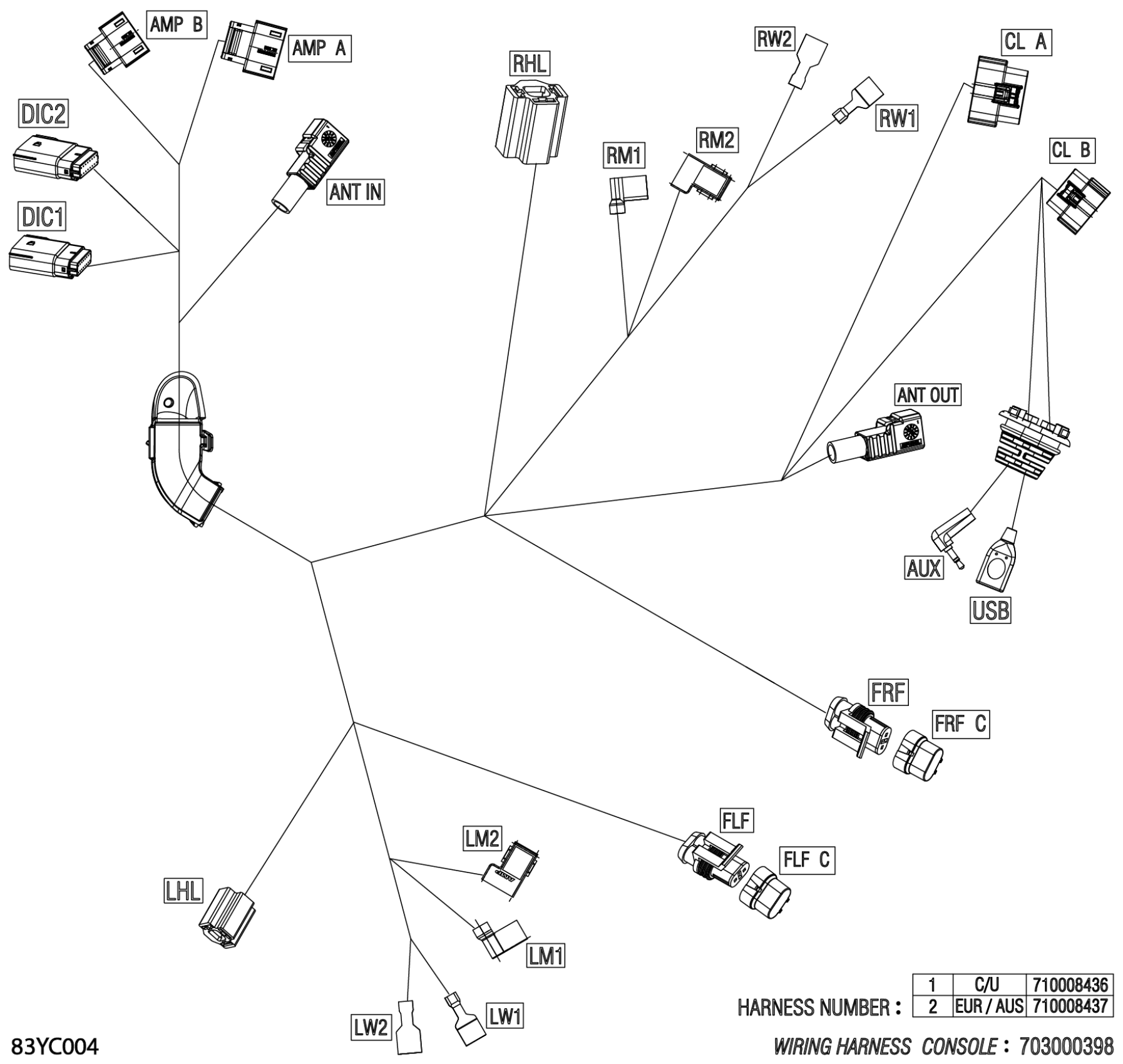

Can-Am F3 LIMITED - Dark Edition - Monolith Black, Europe, 2023 Electric - Console Wiring Harness - 710008437 Diagram

Description

Price

Console Wiring Harness

710008437

$349.99

AMP A

Housing, 12 Circuits

278002994

$13.77

AMP A

Sealing Cap

278002860

$1.79

AMP A

Female Terminal

515178018

$1.19

AMP A

Female Terminal 22 AWG

515178349

$2.29

AMP A

Female Terminal

515178014

$2.39

AMP B

Connector Molex Mx150 12pos

710005905

$9.63

AMP B

Female Terminal

515178018

$1.19

AMP B

Female Terminal 22 AWG

515178349

$2.29

AUX

Audio Jack

278003492

$47.49

AUX

Female Terminal

515178018

$1.19

CL A

Female Housing 20 Circuits

278002858

$22.49

CL A

Sealing Cap

278002860

$1.79

CL A

Female Terminal

515178018

$1.19

CL B

Housing, 20 Circuits

515178303

$24.99

CL B

Female Terminal

515178018

$1.19

CL B

Female Terminal 22 AWG

515178349

$2.29

DIC1

Connector Molex Mx150 16 Pos

710005976

$12.16

DIC1

Sealing Cap

278002860

$1.79

DIC1

Male Terminal

515178013

$3.19

DIC2

Connector Molex Mx150 16 Pos

710005977

$12.16

DIC2

Sealing Cap

278002860

$1.79

DIC2

Male Terminal

515178013

$3.19

FLF

Female Housing, 2 Circuits

409209500

$15.27

FLF

Wire Seal

515176621

$7.49

FLF

Female Terminal

710001340

$5.89

FLF C

Connector Plug

710004906

$13.22

FRF

Female Housing, 2 Circuits

409209500

$15.27

FRF

Wire Seal

515176621

$7.49

FRF

Female Terminal

710001340

$5.89

FRF C

Connector Plug

710004906

$13.22

LHL

Female Housing

515176908

$13.99

LHL

Terminal

515176909

$2.21

LM1

Female Terminal

710004858

$4.09

LM2

Terminal

710004835

$3.49

LM2

Female Terminal

710002399

$2.40

LW1

Female Terminal

710004857

$5.40

LW2

Female Terminal Housing, 1 Circuit

409010400

$7.62

LW2

Female Terminal

409010100

$5.61

RHL

Female Housing

515176908

$13.99

RHL

Terminal

515176909

$2.21

RM1

Female Terminal

710004858

$4.09

RM2

Terminal

710004835

$3.49

RM2

Female Terminal

710002399

$2.40

RW1

Female Terminal

710004857

$5.40

RW2

Female Terminal Housing, 1 Circuit

409010400

$7.62

RW2

Female Terminal

409010100

$5.61

USB

USB Connector

710006405

$41.49

USB

Female Terminal

515178018

$1.19
