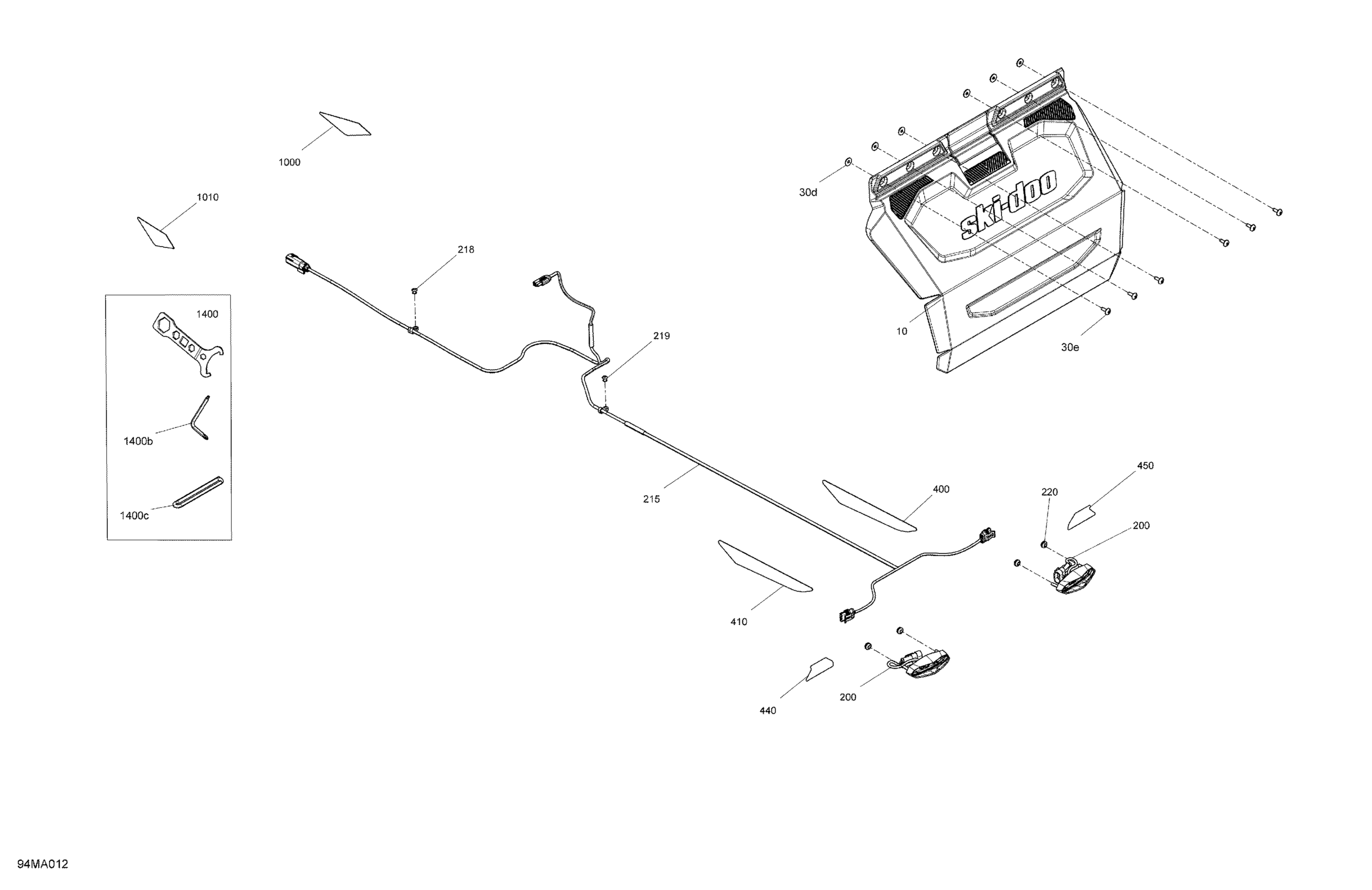

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2021 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002056

$106.99

30d

Washer M5

250200025

$0.74

30e

Forming Screw M5 x 16

250000676

$1.01

200

Tail Light

520002636

$105.99

215

Taillight Wiring Harness

515178634

$58.99

218

Pop Rivet 3/16"

390402200

$0.35

219

Pop Rivet 3/16"

390402200

$0.35

220

Grommet

293720101

$0.77

400

Red, RH Rear Reflector

520001900

$19.99

410

Red, LH Rear Reflector

520001901

$19.99

440

LH Rear Red Reflector

520001740

$4.99

450

RH Rear Red Reflector

520002016

$4.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400c

520001814

$27.99

1400b

Key

520001815

$11.79

1400c

Rope Starter

529017500

$1.17
