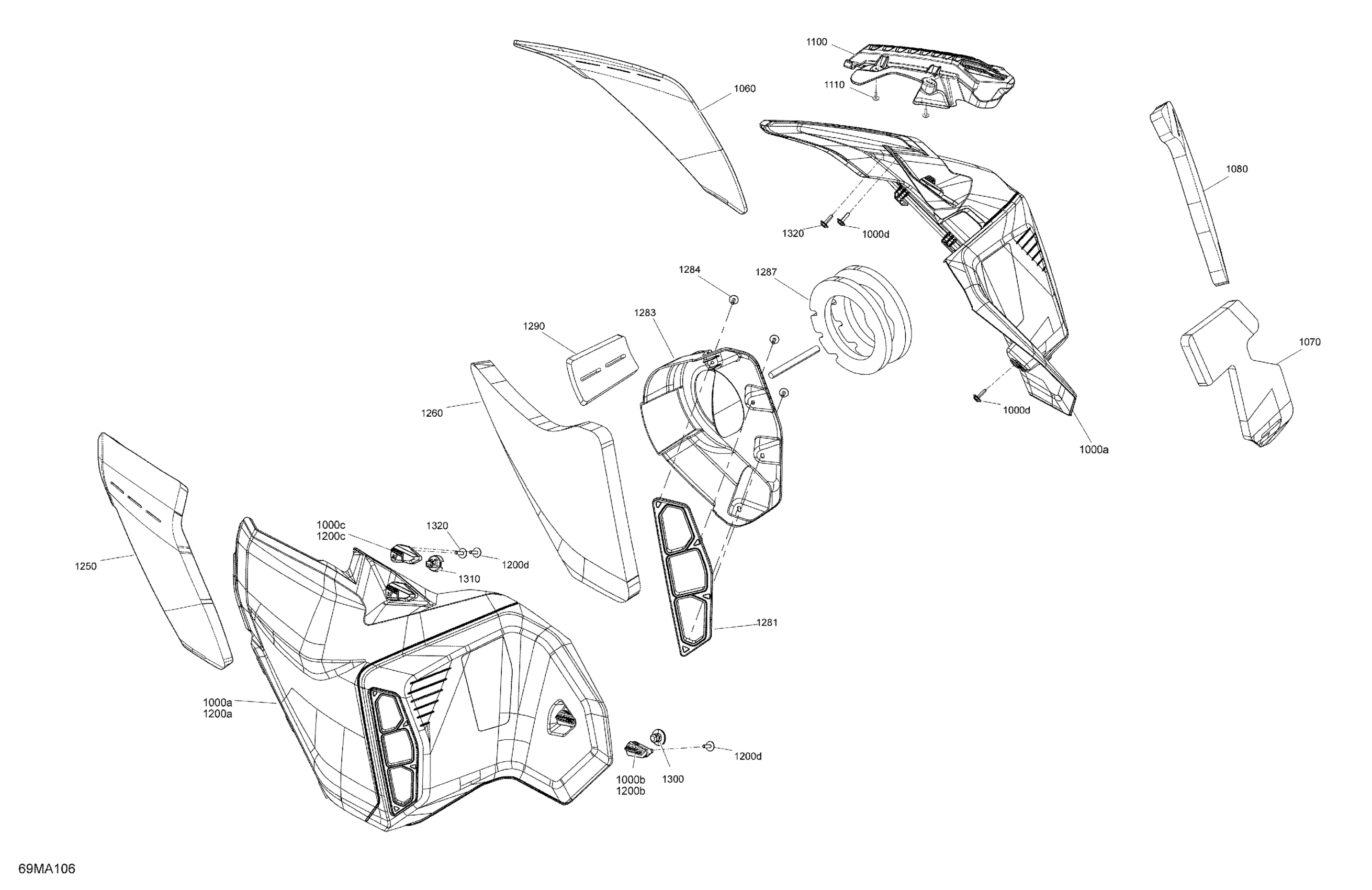

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2021 Body - Side Panels Diagram

Description

Price

1000a

Can-Am Red, RH Panel

517307286

$164.90

1000b

RH Rear Latch

517305773

$13.79

1000c

RH Front Latch

517305979

$13.46

1000d

Screw M4 X 16

250000725

$3.30

1060

RH Front Panel Foam

517306497

$13.22

1070

RH Rear Panel Foam

517306501

$13.22

1080

Foam

517307292

$4.30

1100

RH Hood Grille Ass'y

517308292

$73.10

1110

Screw M4 X 16

250000725

$3.30

1200a

Can-Am Red, LH Panel

517307048

$164.90

1200b

LH Rear Latch

517305774

$13.79

1200c

LH Front Latch

517305980

$13.79

1200d

Screw M4 X 16

250000725

$3.30

1250

LH Front Panel Foam

517306498

$13.22

1260

LH Central Panel Foam

517306562

$13.22

1281

LH Grille Panel

517306948

$23.85

1283

Ventilation Duct

517306964

$16.39

1284

Screw M4 X 16

250000725

$3.30

1287

Foam

517306954

$4.30

1290

Foam

517307296

$2.06

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1320

Screw M4 X 16

250000725

$3.30
