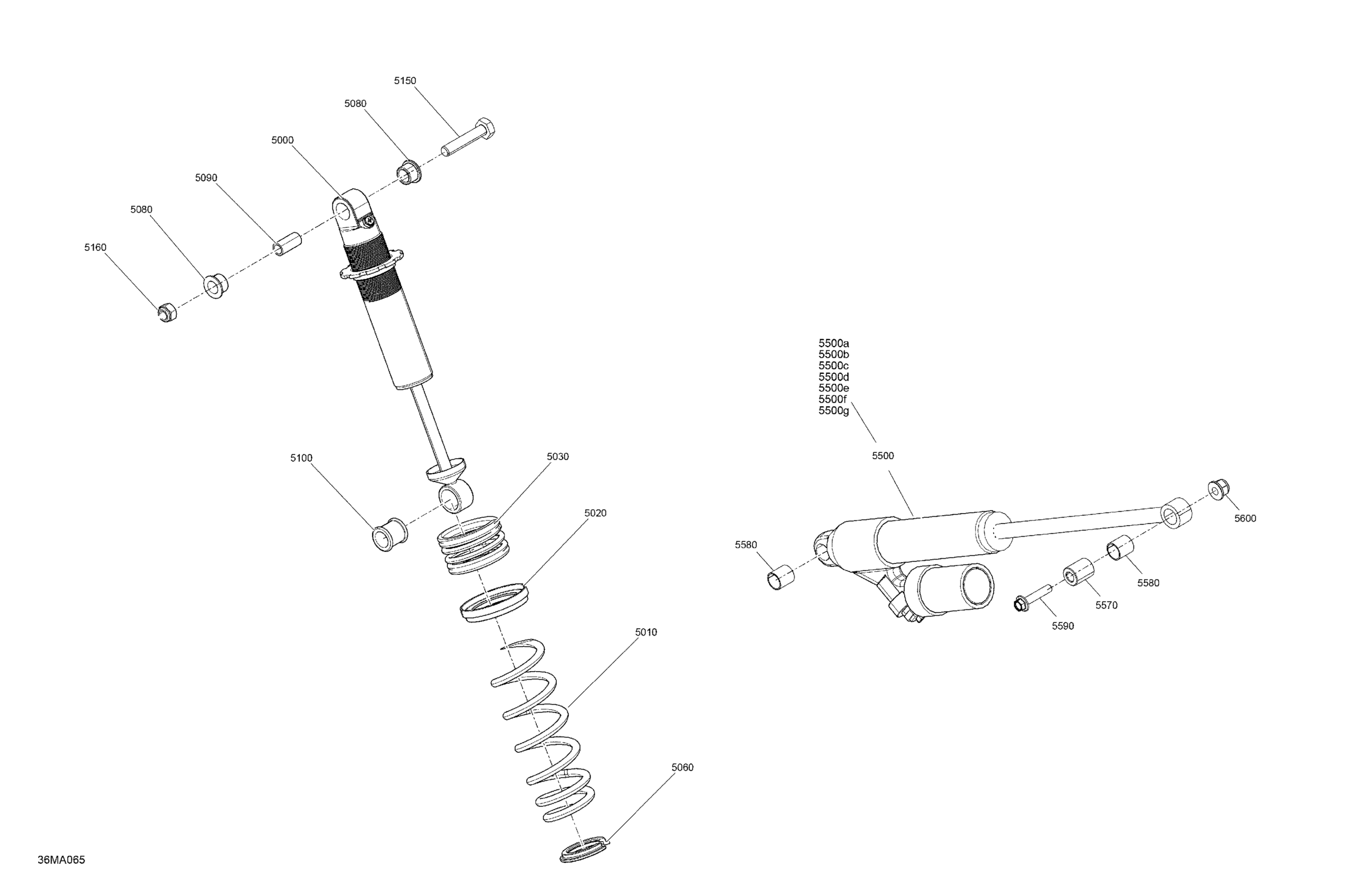

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2021 Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock

503194337

$416.12

5010

Deep Black, Spring (189mm) Long

503193160

$88.43

5020

Spring Spacer

503191281

$7.66

5030

Black, Spring (51mm) Short

503193837

$66.89

5060

Spring Stopper

503194270

$16.89

5080

Urethane Bushing

503189117

$6.88

5090

Bushing | Includes 240d to 240d1

503189282

$4.18

5100

Bushing

503189271

$10.46

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5160

Elastic Locking Nut M10

233601466

$1.74

5500

Rear Shock | Included 5500 to 5500g

503194217

$877.49

5500a

O-Ring

415093807

$34.58

5500b

Piston Ring | Not Shown

415093806

$14.97

5500c

Air Valve

505070398

$17.66

5500d

Screw | Not Shown

505070399

$4.00

5500e

O-Ring

505070400

$4.38

5500f

O-Ring

415093804

$4.38

5500g

Base Valve

415130165

$74.58

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83
